Product Detail
LXS-FR104-W 10.4-inch Industrial Monitor
10.4-inch square-screen industrial monitor with capacitive G+G touch, HDMI / VGA / DVI inputs, aluminum alloy chassis and DC12V power input for HMI terminals and industrial automation displays.
Engineering Data
Full Specification Table
This table is the single authoritative area for complete product parameters.
| Processor | Realtek RTD2525BE-CG low-power processing chip |
|---|---|
| Chipset | Realtek RTD2525BE-CG |
| Screen Size | 10.4 inch |
| Screen Aspect | 4:3 square screen |
| Resolution | 1024 x 768 |
| Brightness | 300 cd/m² optional |
| MTBF | 50,000 hours |
| Touchscreen | Capacitive G+G 10-point touch, response time <8ms, touch accuracy <= 2mm |
| Touch Type | Capacitive G+G touch |
| Display Input | 1 x HDMI + 1 x VGA + 1 x DVI |
| USB | 1 x USB-TP port |
| Audio | 1 x Audio input |
| I/O | 1 x USB-TP + 1 x Audio input + 1 x DC12V input |
| Display Output | 1 x HDMI + 1 x VGA + 1 x DVI display input |
| Expansion | Optional Phoenix terminal 9V~36V power input |
| Power Input | DC12V-3A input, expandable to 9~36V wide voltage input |
| Operating Temperature | -10°C~60°C (-4°F~149°F) |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Humidity | 10% - 95% @ 40°C, non-condensing |
| Dimensions | TBD mm (naked machine) |
| Panel Opening | 266mm (L) x 211mm (W) |
| Material | High-quality aluminum alloy + galvanized steel plate; high-strength aluminum alloy frame and cover |
| Thermal Design | Fanless passive cooling |
| Mounting | Recessed / Wall-mounted / Desktop stand |
| Thickness | Approximately 42.5mm |
| Weight | Net weight about 2kg / gross weight about 2.5kg |
| Operating System | Compatible with Windows, Linux and Android systems; supports mainstream display panel drivers |

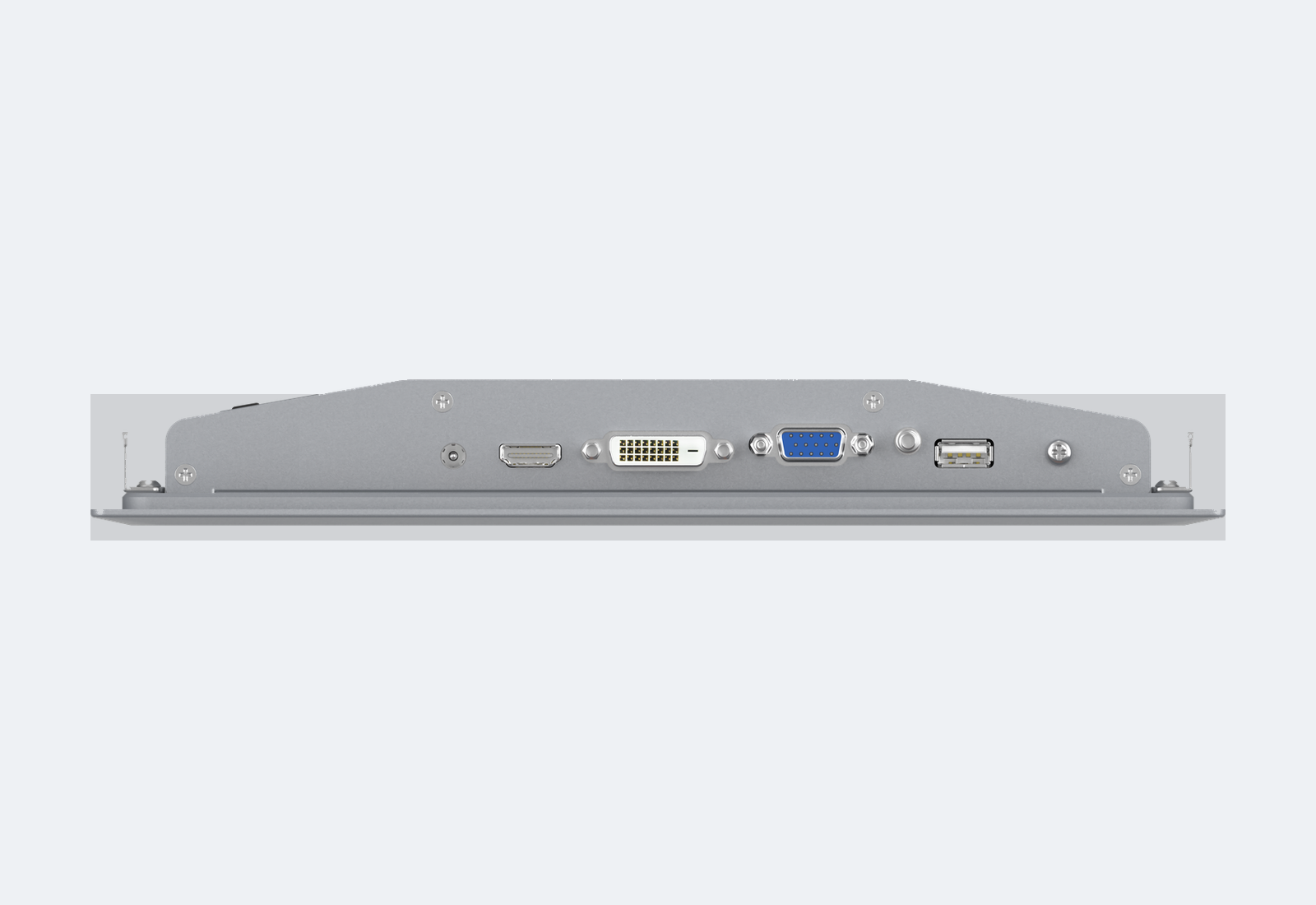

I/O Visual Layout
Connector position overview
Use this visual map to identify connector areas. Detailed electrical and port specifications are kept only in the Full Specification Table.
USB
USB peripheral connection area
Display
Monitor output position
Power
DC input position
Expansion
Module or expansion slot area
Configuration Options
Project-selectable options
OEM / ODM Support
Customization support capabilities
Documentation
Documentation / Datasheet
lxs-fr104-w.pdf
PDF / 310 KB / Available for engineering review
Quality & Compliance
Quality & Compliance for Industrial Projects
Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.
CE / FCC / RoHS documentation support100% aging test discussion for batch ordersWide temperature and vibration reviewFanless thermal design validationLong lifecycle supply supportOEM / ODM engineering communication
Product RFQ
Request configuration review for LXS-FR104-W.
Send the application, quantity, required I/O, mounting method, power input and OS support so engineering can confirm a practical quotation path.
