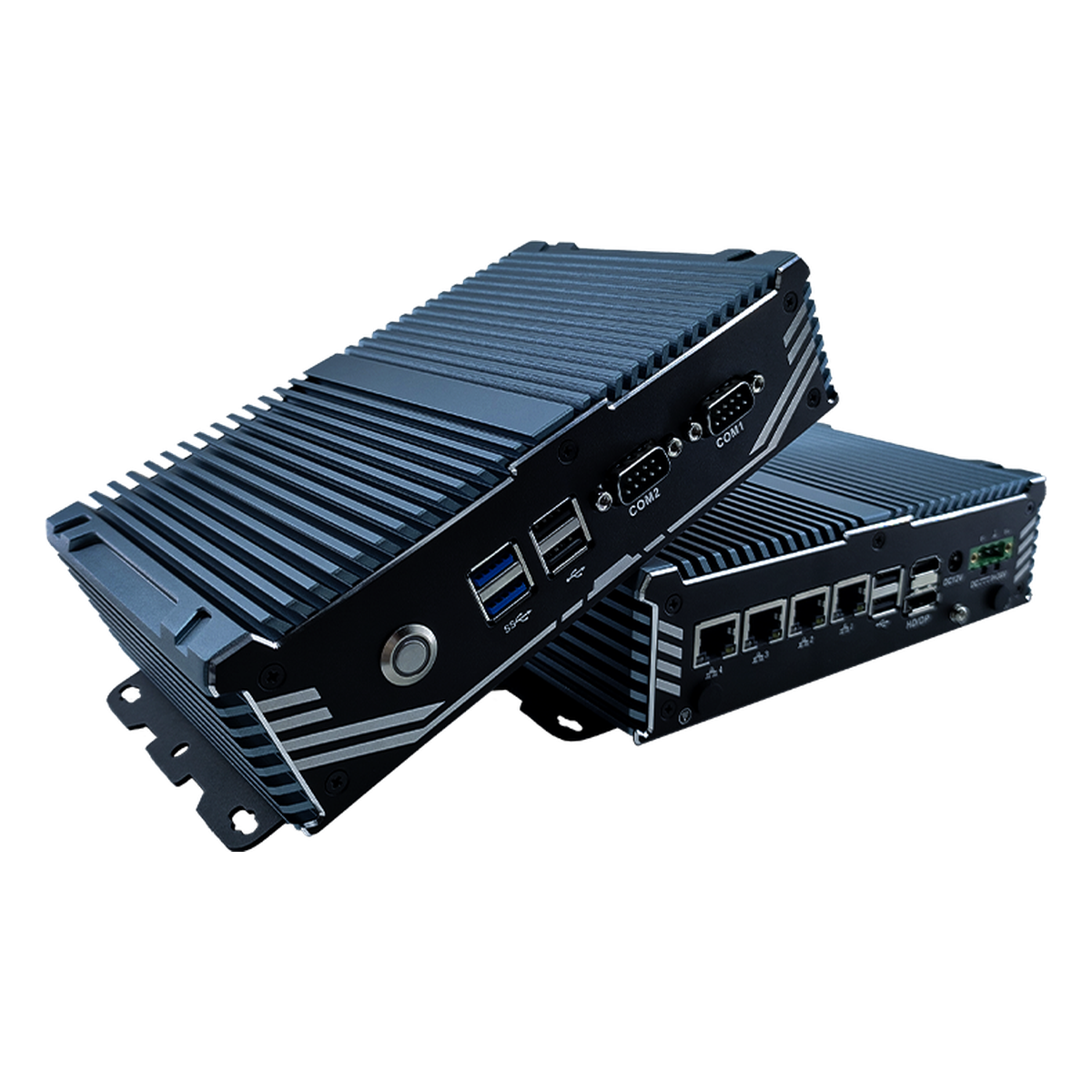

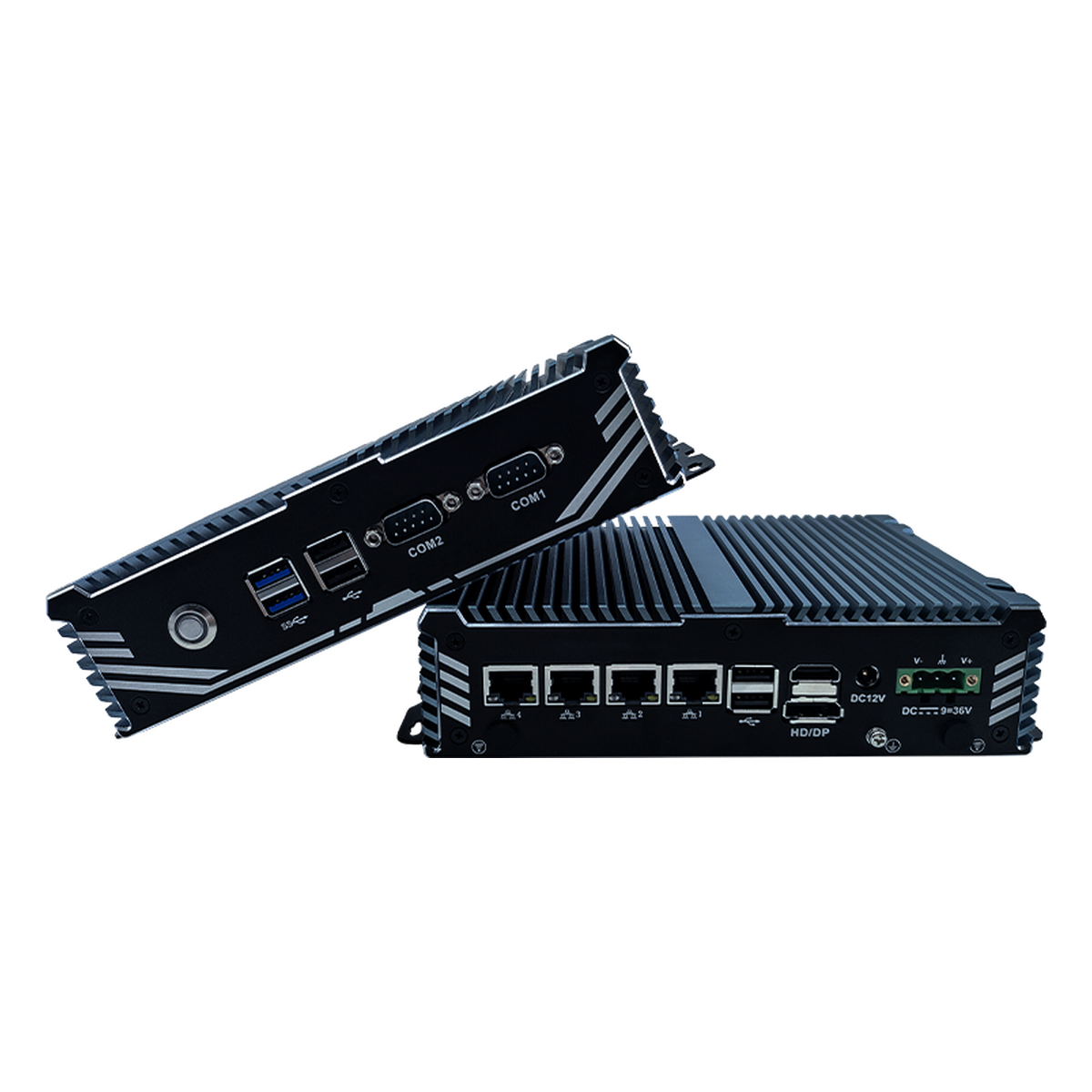

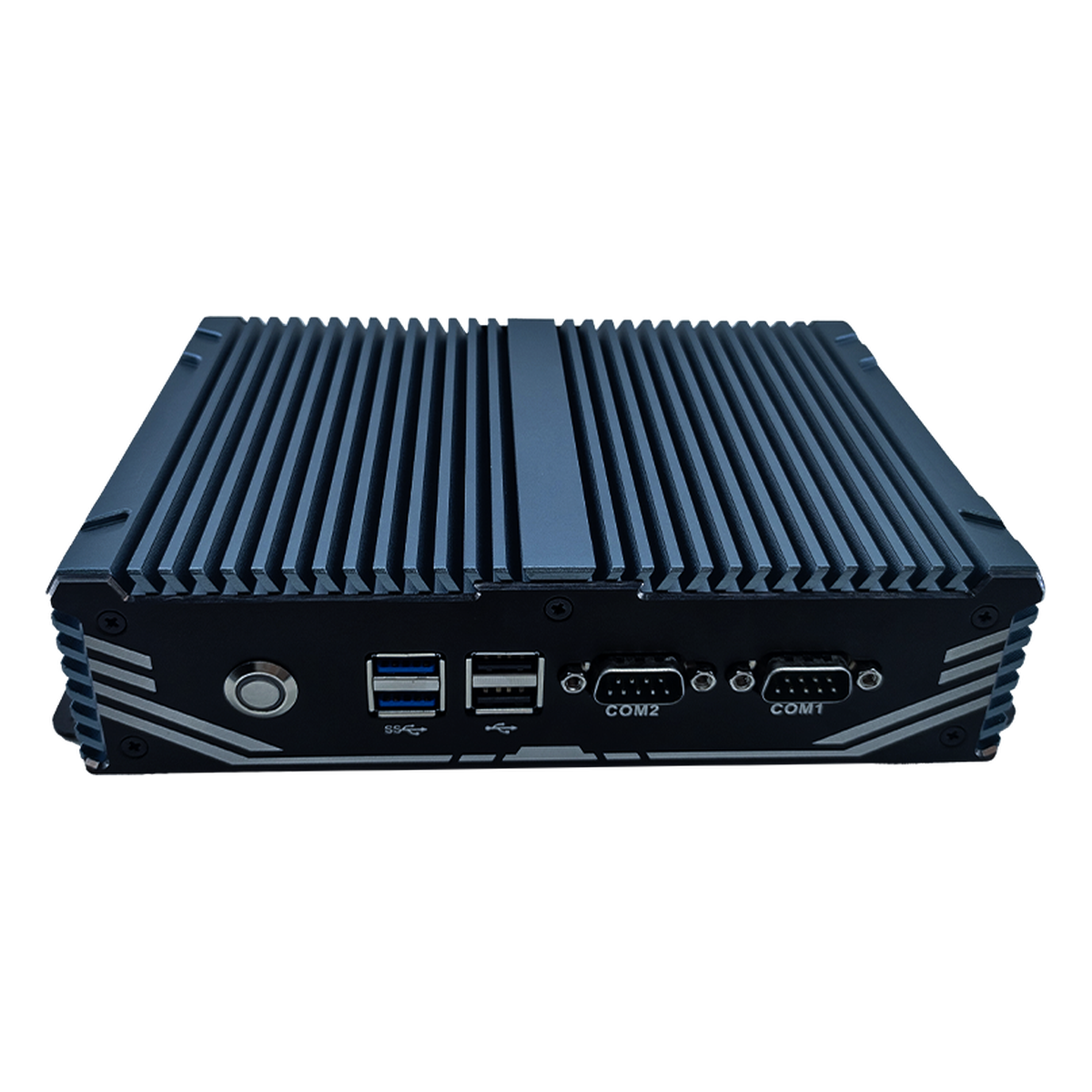

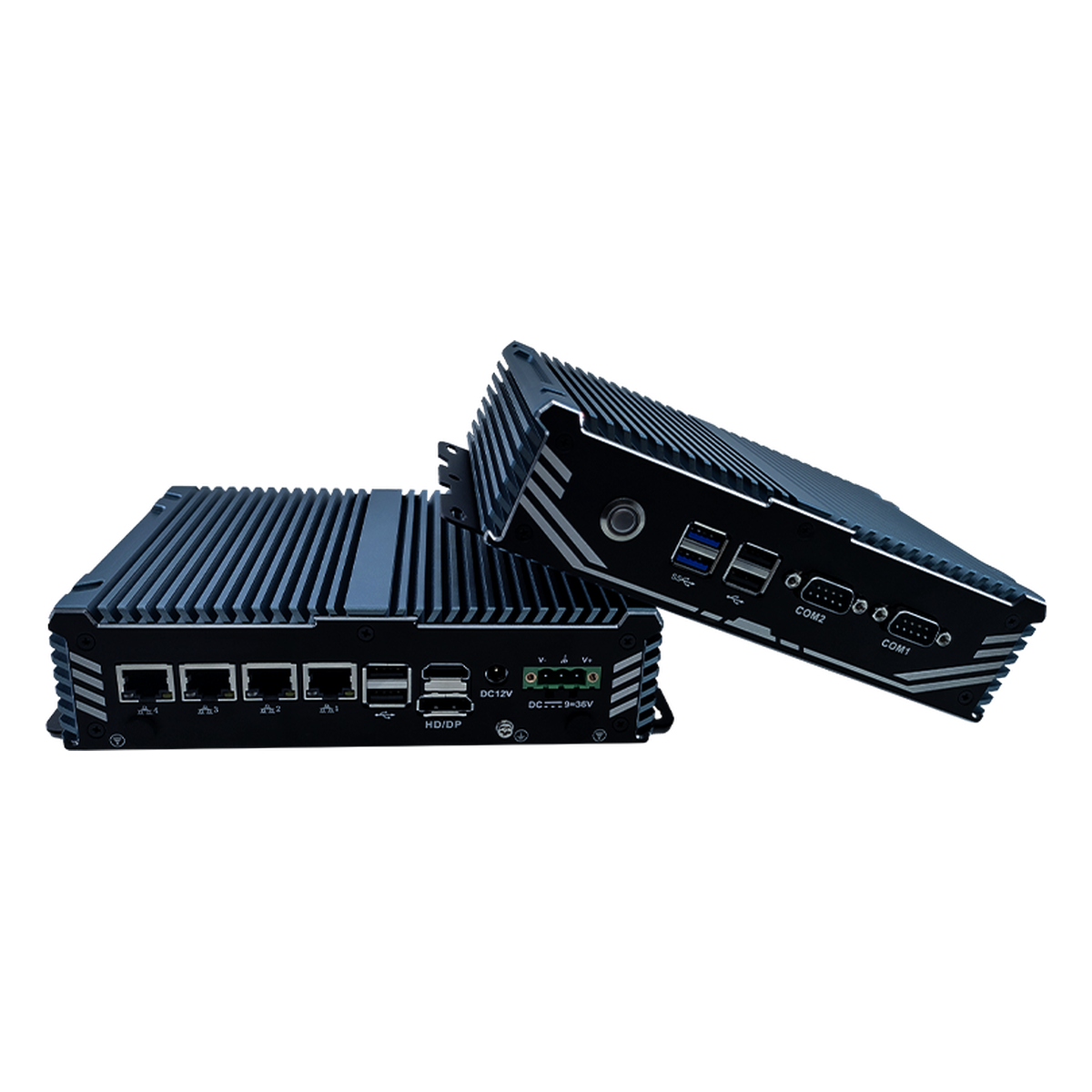

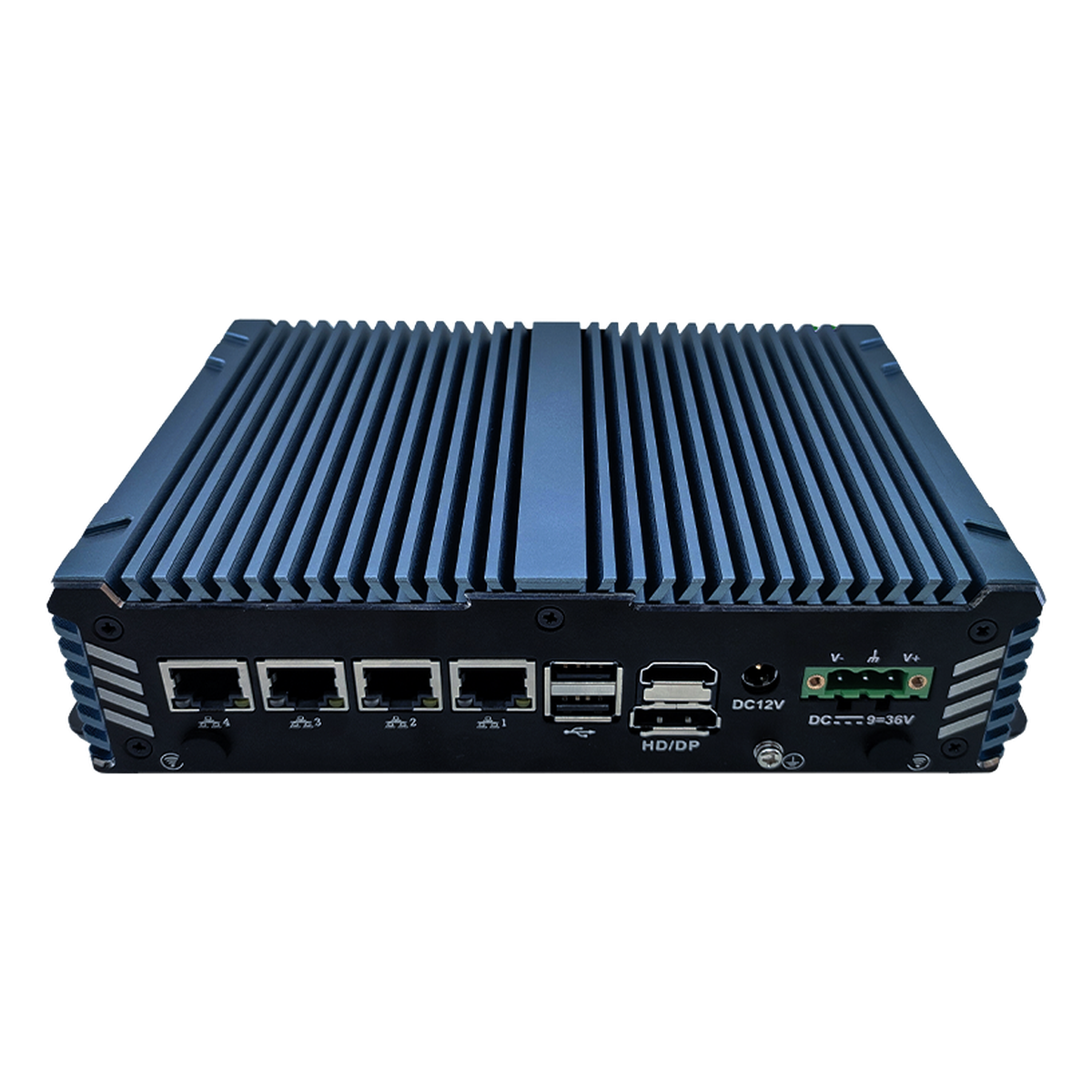

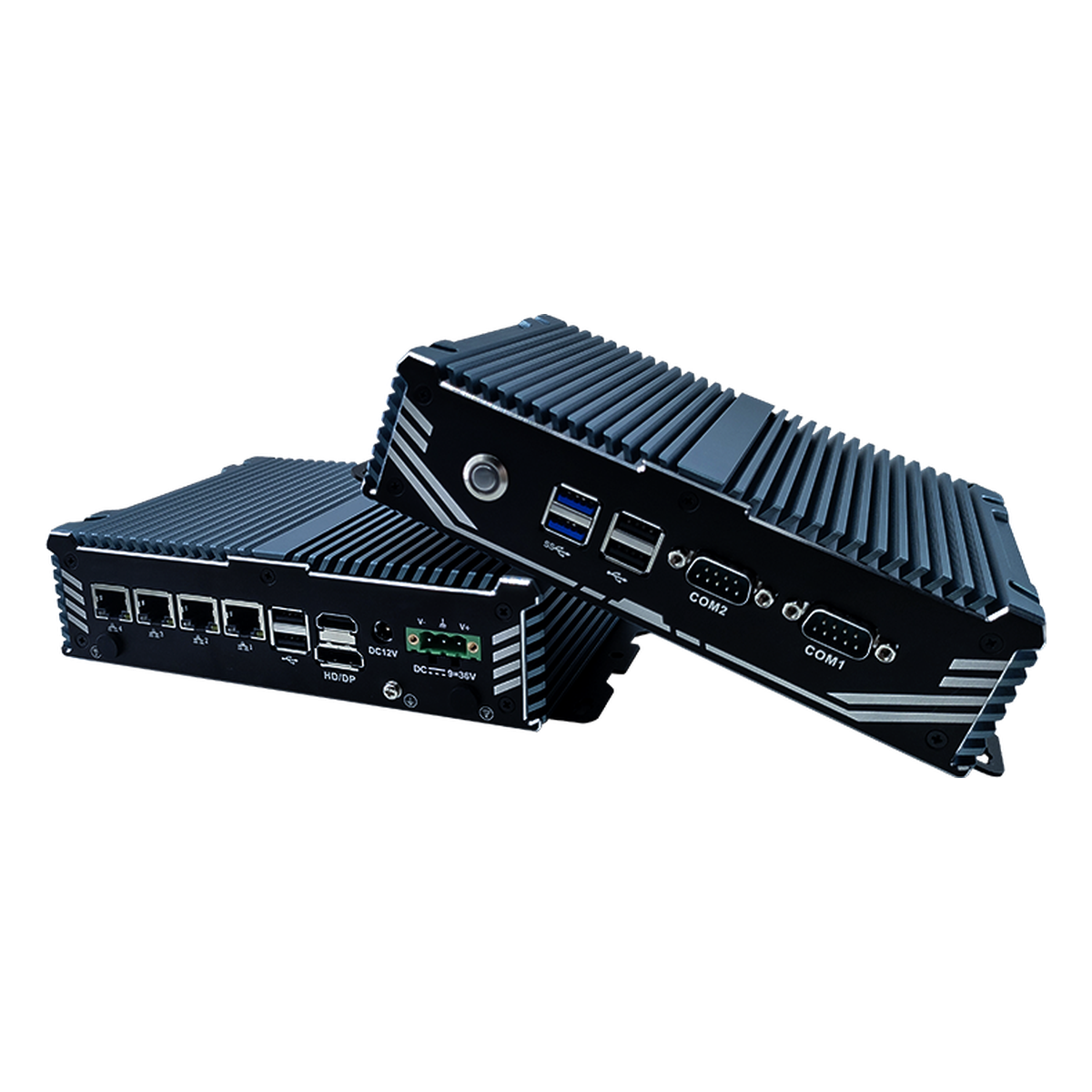

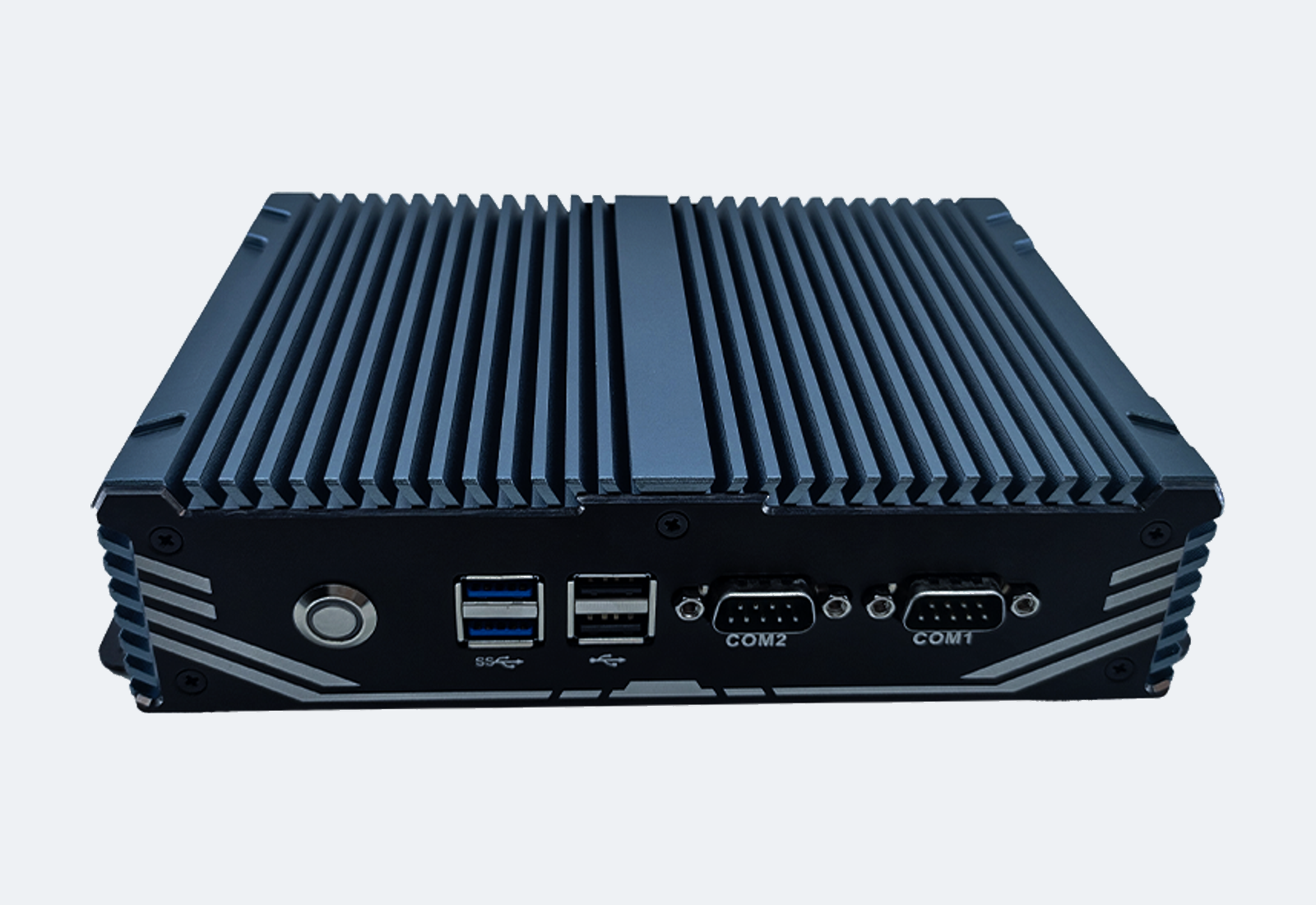

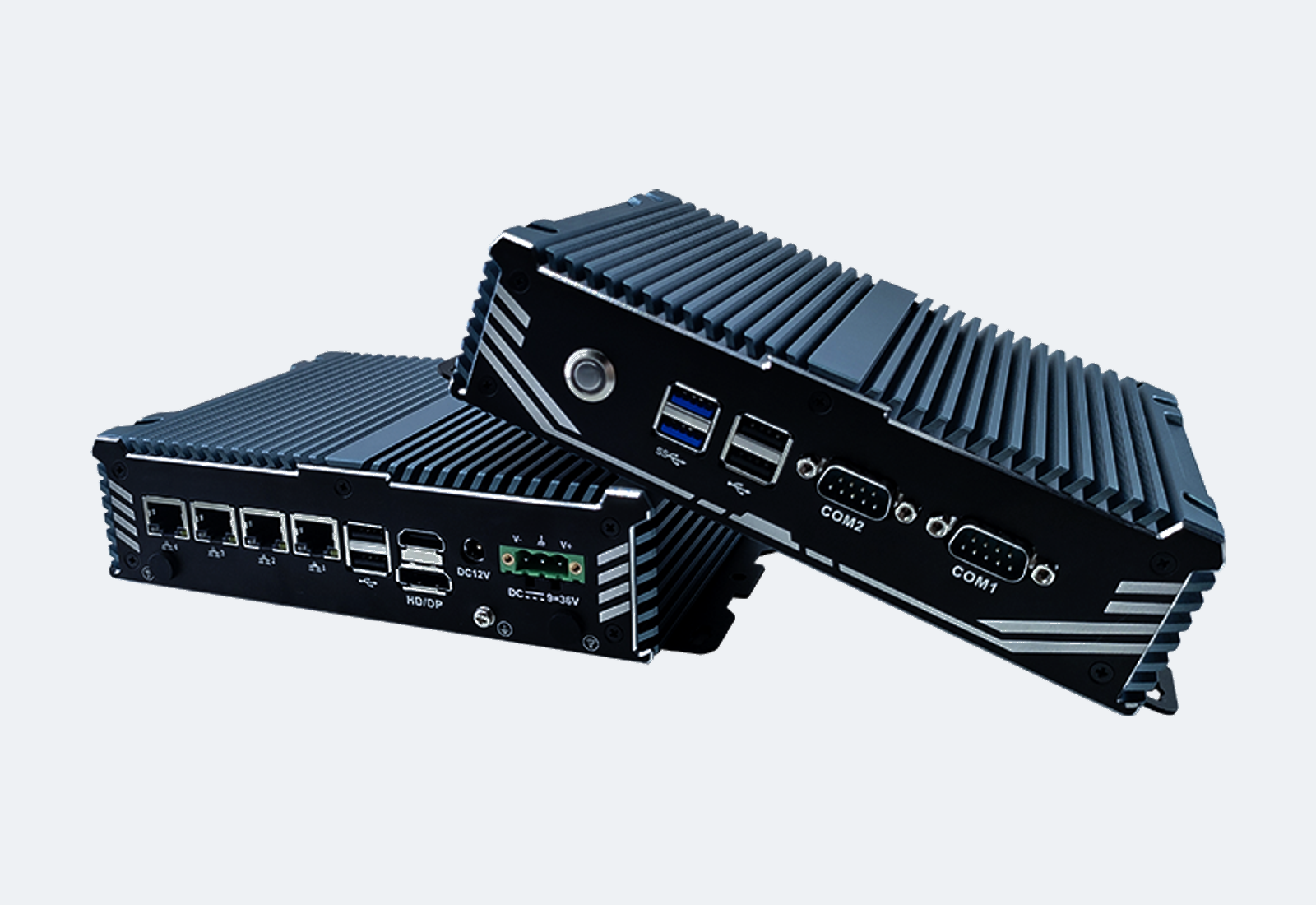

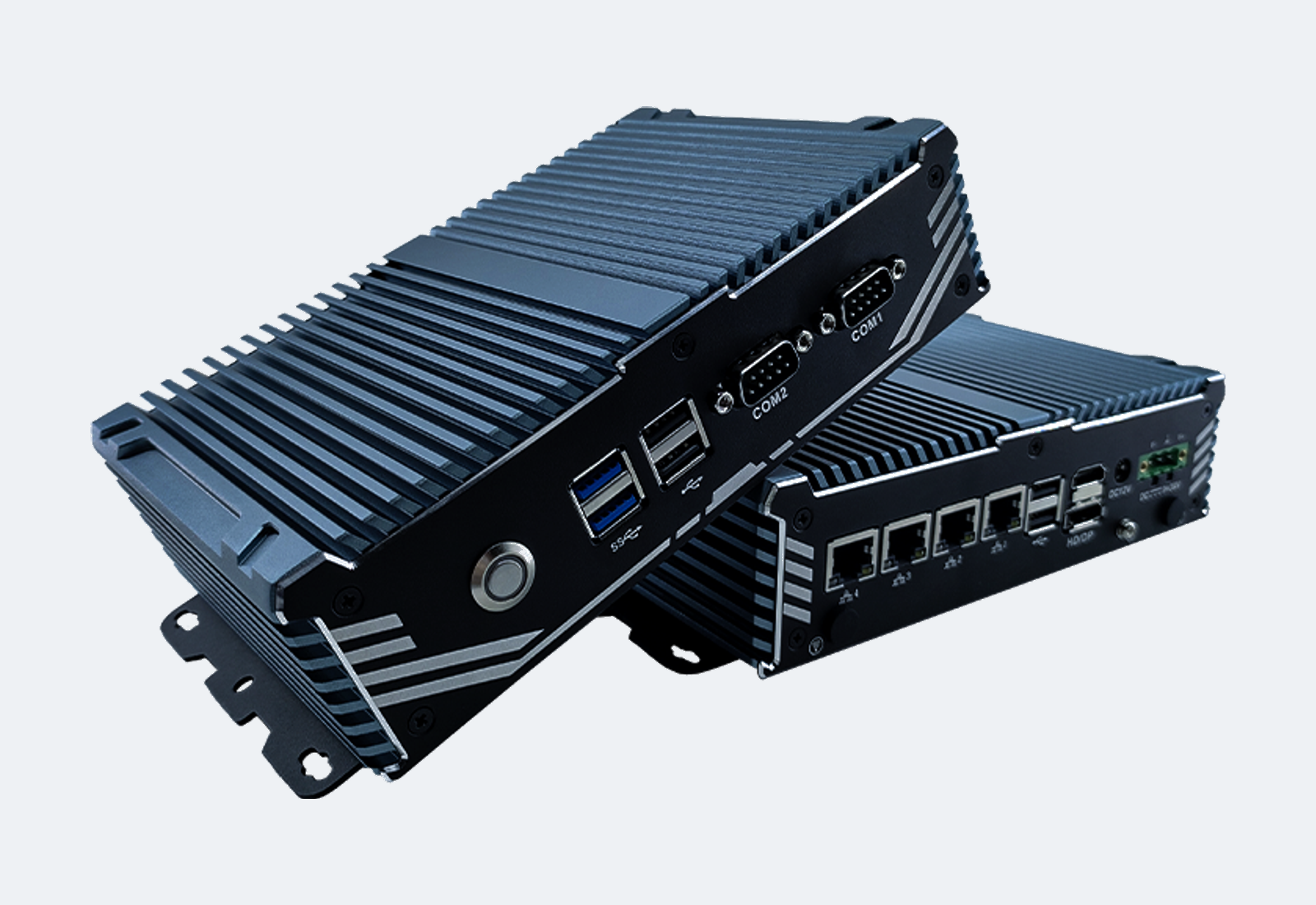

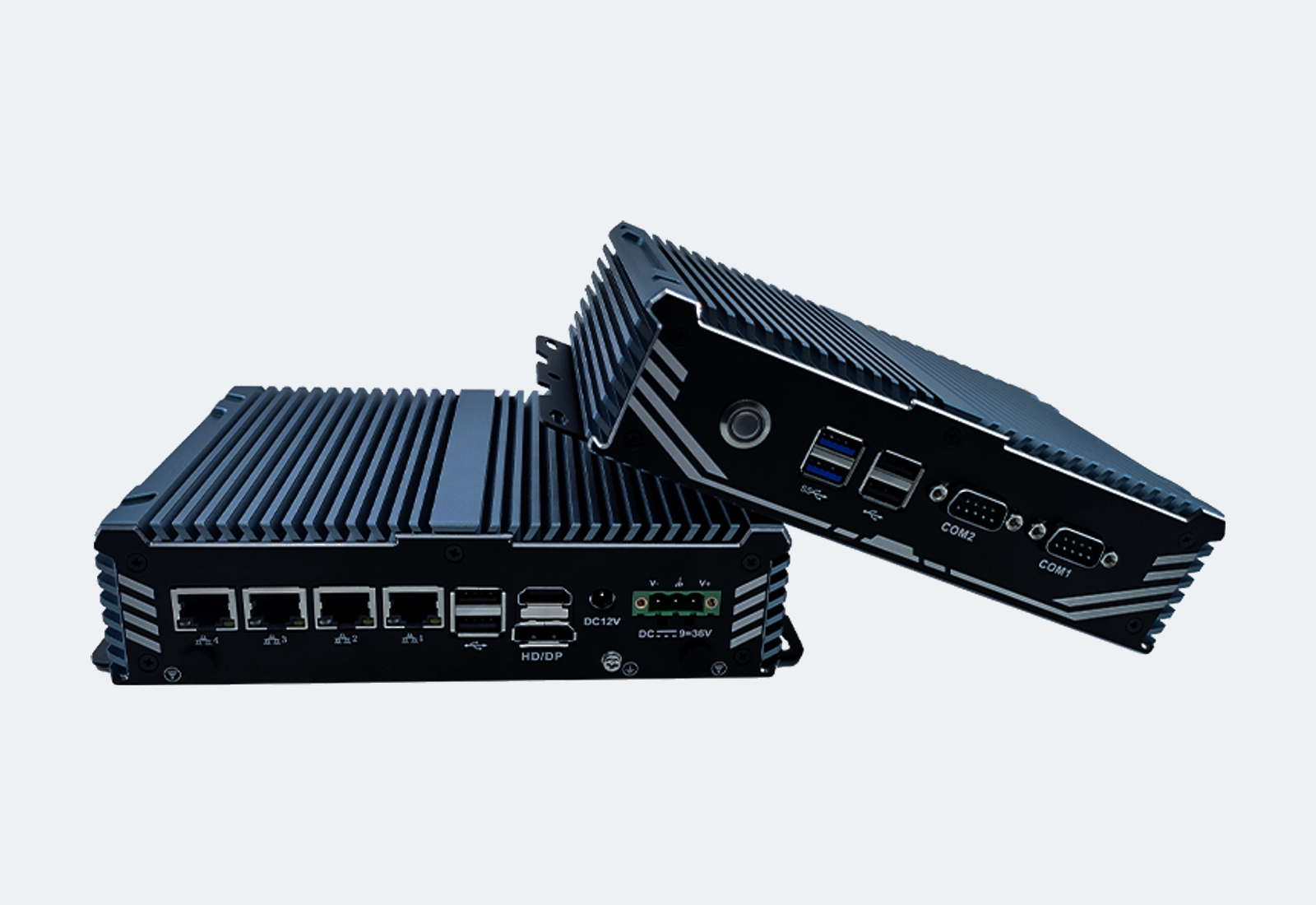

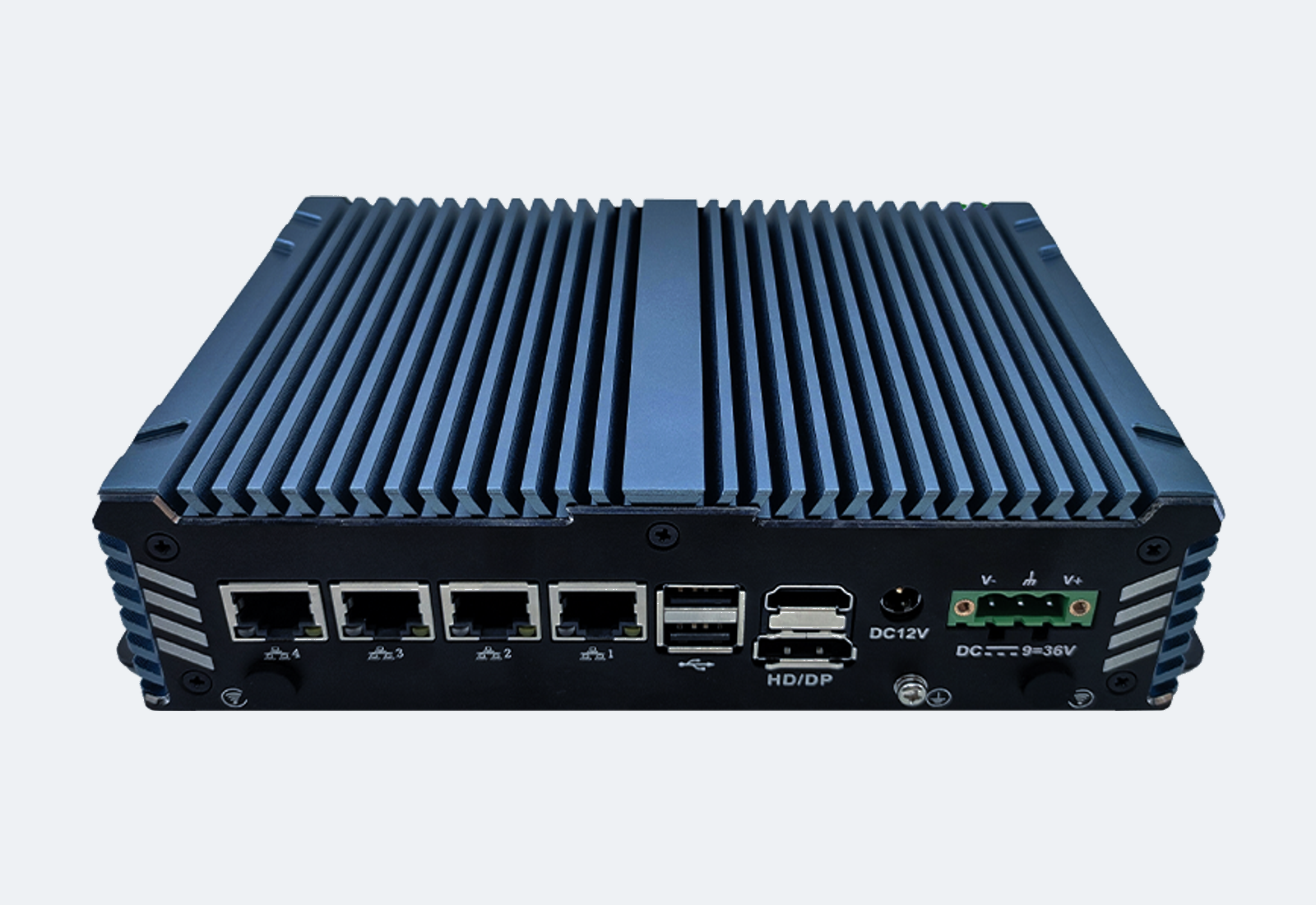

LN-1005 Fanless BOX-PC

Fanless industrial BOX-PC based on Intel Celeron J6412 platform, featuring 4 Intel 2.5G LAN ports, HDMI/DP display outputs and optional 9-36V wide voltage input.

Suitable applications Multi-LAN industrial gateway / Network security appliance / Edge computing
Key I/O / ports 4 x Intel 2.5G LAN ports / 2 x USB3.0
Mounting Recessed / Wall / Desktop Bracket
Power input DC12V / DC9-36V wide voltage input
OS support Windows 10 / Windows 11 / Linux
Customization Custom I/O, BIOS / OS image, logo, packaging and lifecycle support
Request Quote Download Datasheet Send I/O Requirements
CPU Intel Celeron J6412 2.0GHz quad-core processor
LAN 4 x Intel 2.5G LAN ports
COM COM optional
USB 2 x USB3.0
Display 1 x HDMI + 1 x DP
Power DC12V / DC9-36V wide voltage input

Engineering Data

Full Specification Table

This table is the single authoritative area for complete product parameters.

Processor Intel Celeron J6412 2.0GHz quad-core processor
Chipset Intel platform
Memory 1 x DDR4 3200MHz SO-DIMM, reported maximum 62GB; confirm actual maximum capacity
Storage 1 x M.2 Key-M 2280 SATA protocol + 1 x SATA3.0
LAN 4 x Intel 2.5G LAN ports
USB 2 x USB3.0
Display Output 1 x HDMI + 1 x DP
Power Input DC12V / DC9-36V wide voltage input
Operating Temperature 10°C to 60°C
Material Fanless industrial enclosure
Thermal Design Fanless passive heat dissipation
Mounting Recessed / Wall / Desktop Bracket
Operating System Windows 10 / Windows 11 / Linux

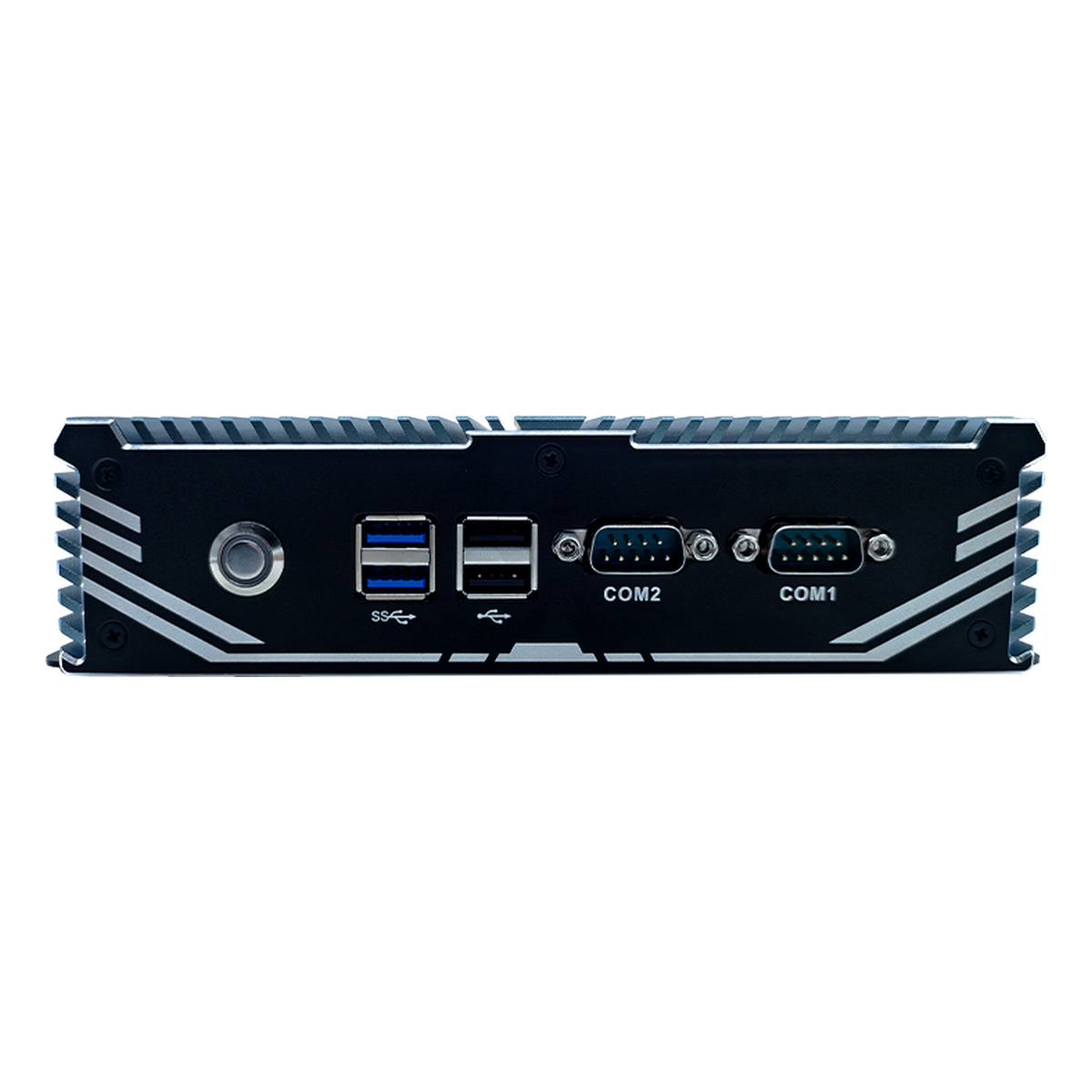

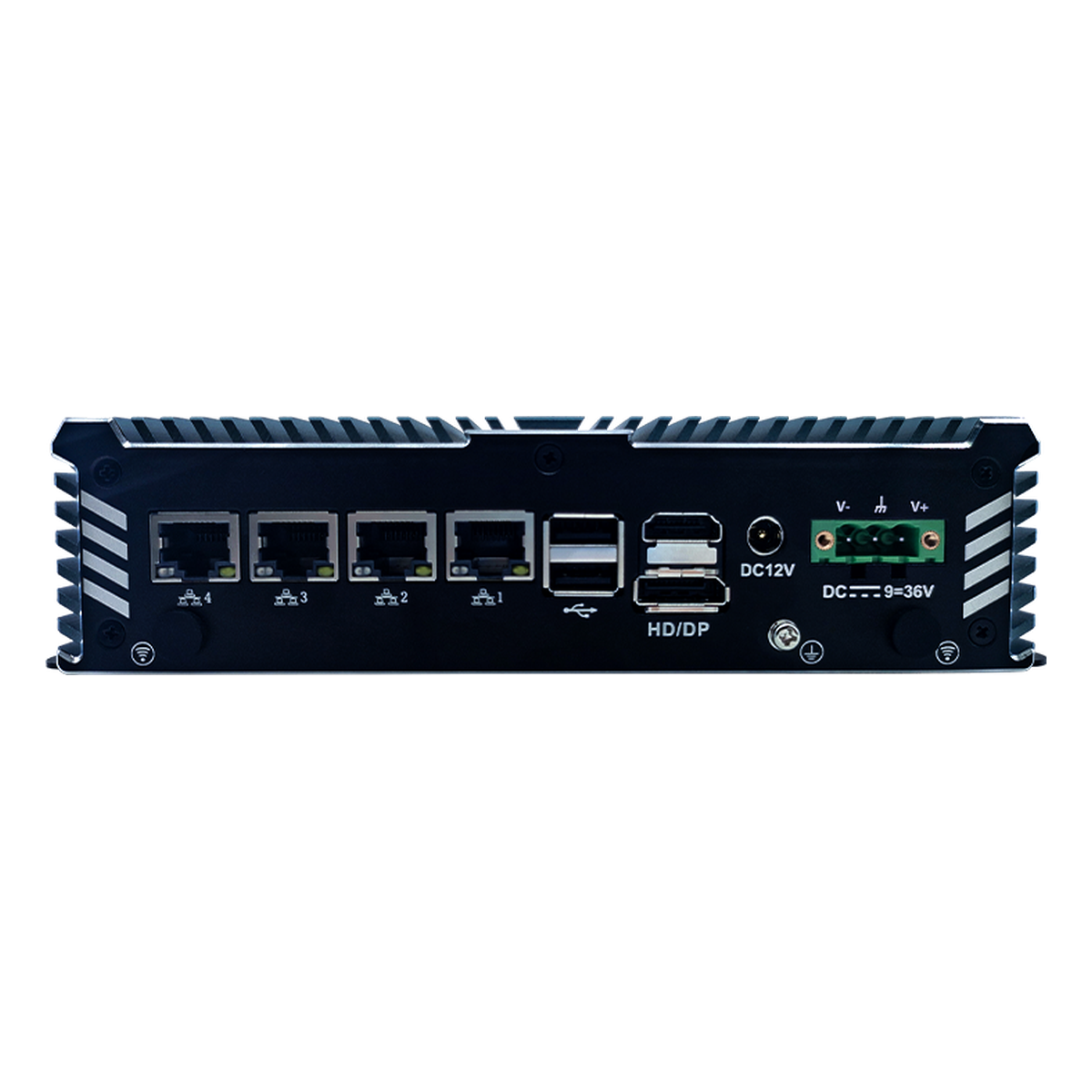

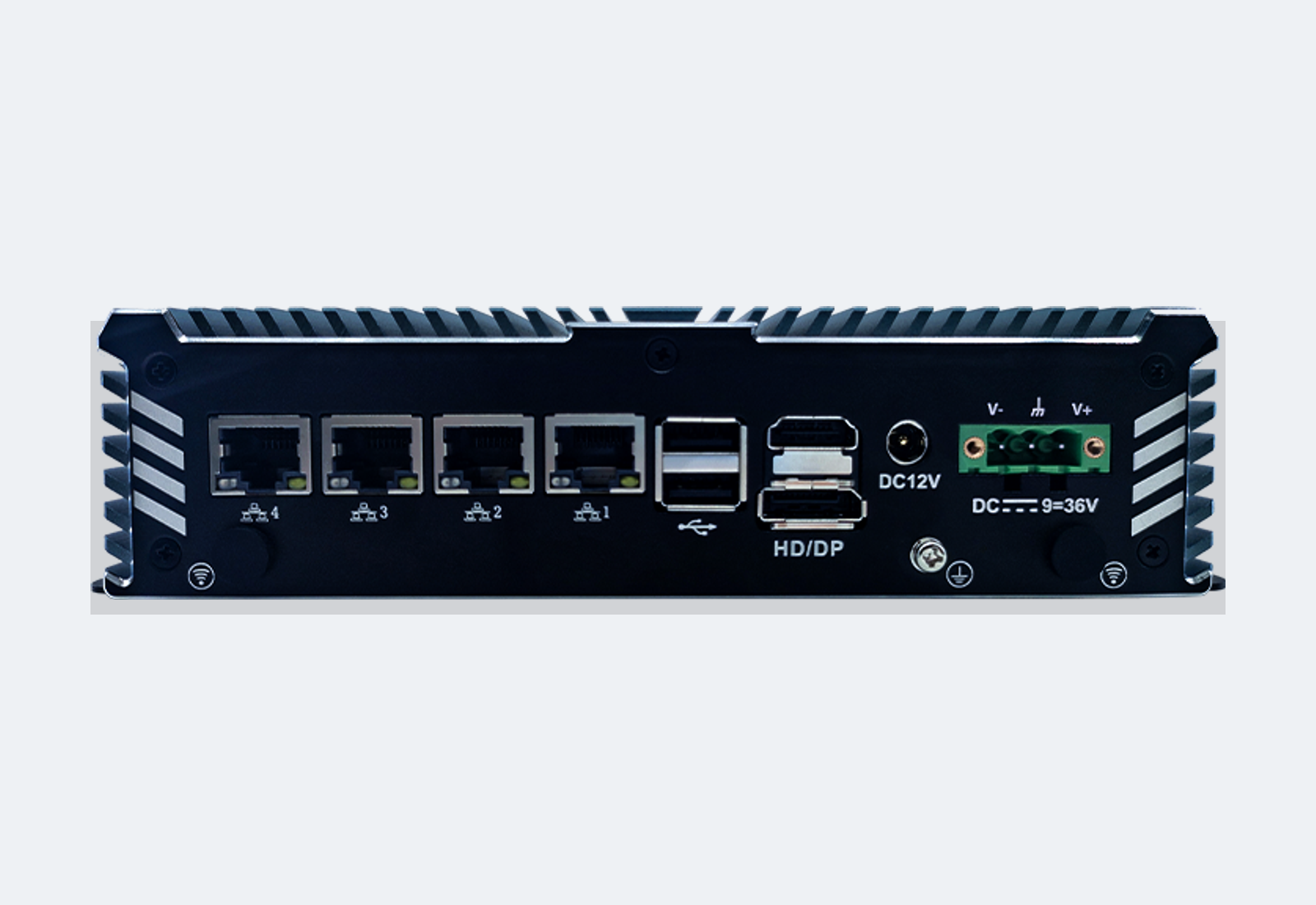

I/O Visual Layout

Connector position overview

Use this visual map to identify connector areas. Detailed electrical and port specifications are kept only in the Full Specification Table.

LAN

Ethernet / network port area

USB

USB peripheral connection area

Display

Monitor output position

Power

DC input position

Configuration Options

Project-selectable options

CPU Options

Multiple processor platforms available by project

Memory Options

Capacity and module configuration selectable

Storage Options

SSD capacity and storage type selectable

Power Input Options

Standard or wide-voltage input available by project

Operating System Options

Windows / Linux image and driver support

Mounting Options

Mounting kit selected by installation method

Branding / Packaging Options

Custom label, logo, carton and project packaging support

Use Case Fit

Applications this product can support

Application Multi-LAN industrial gateway Application Network security appliance Application Edge computing Application Factory automation Application Industrial IoT

OEM / ODM Support

Customization support capabilities

Custom labelCustom packagingBIOS / OS image supportProject-based configuration reviewLong lifecycle supply support

Quality & Compliance

Quality & Compliance for Industrial Projects

Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.

CE / FCC / RoHS documentation support100% aging test discussion for batch ordersWide temperature and vibration reviewFanless thermal design validationLong lifecycle supply supportOEM / ODM engineering communication
