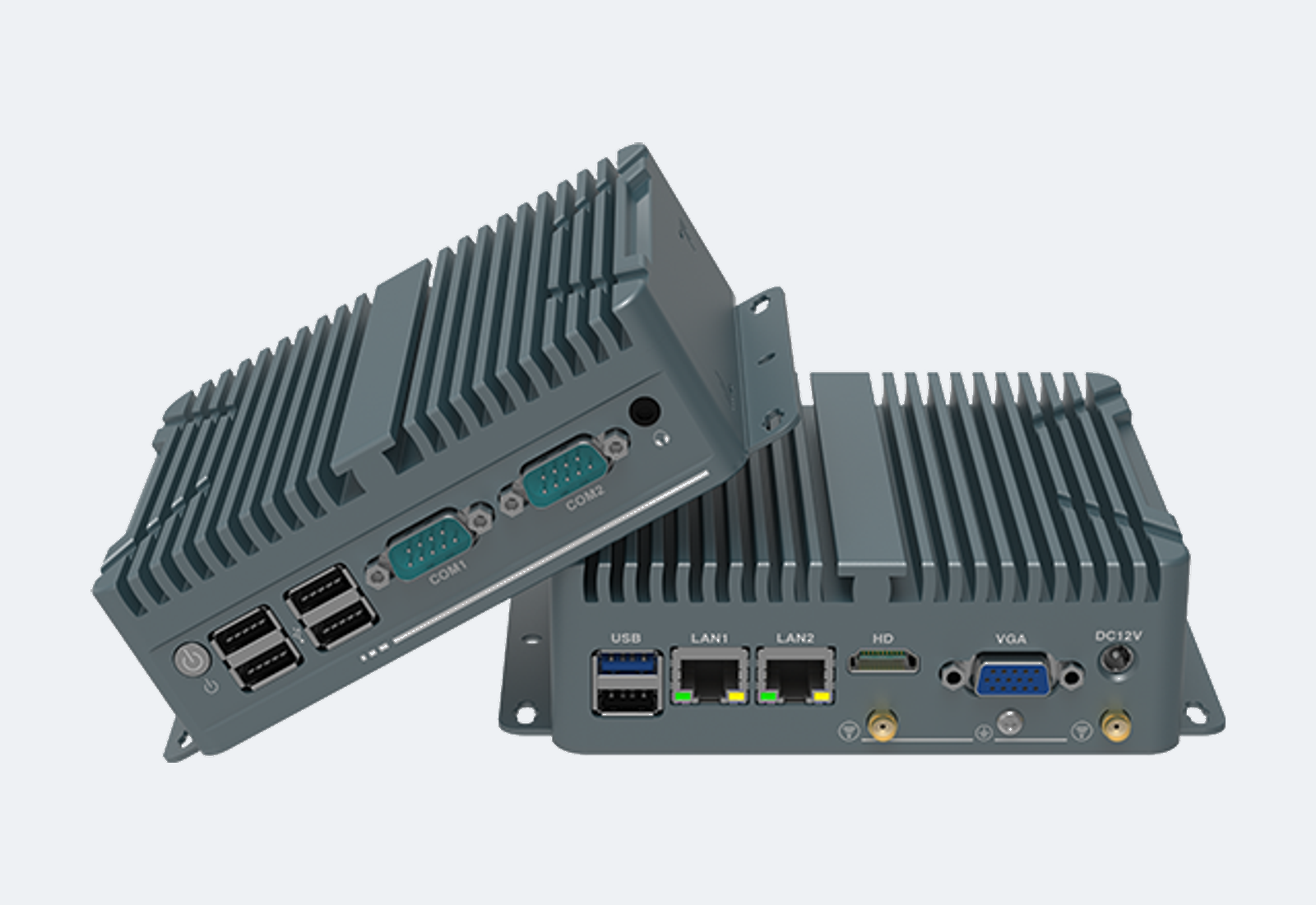

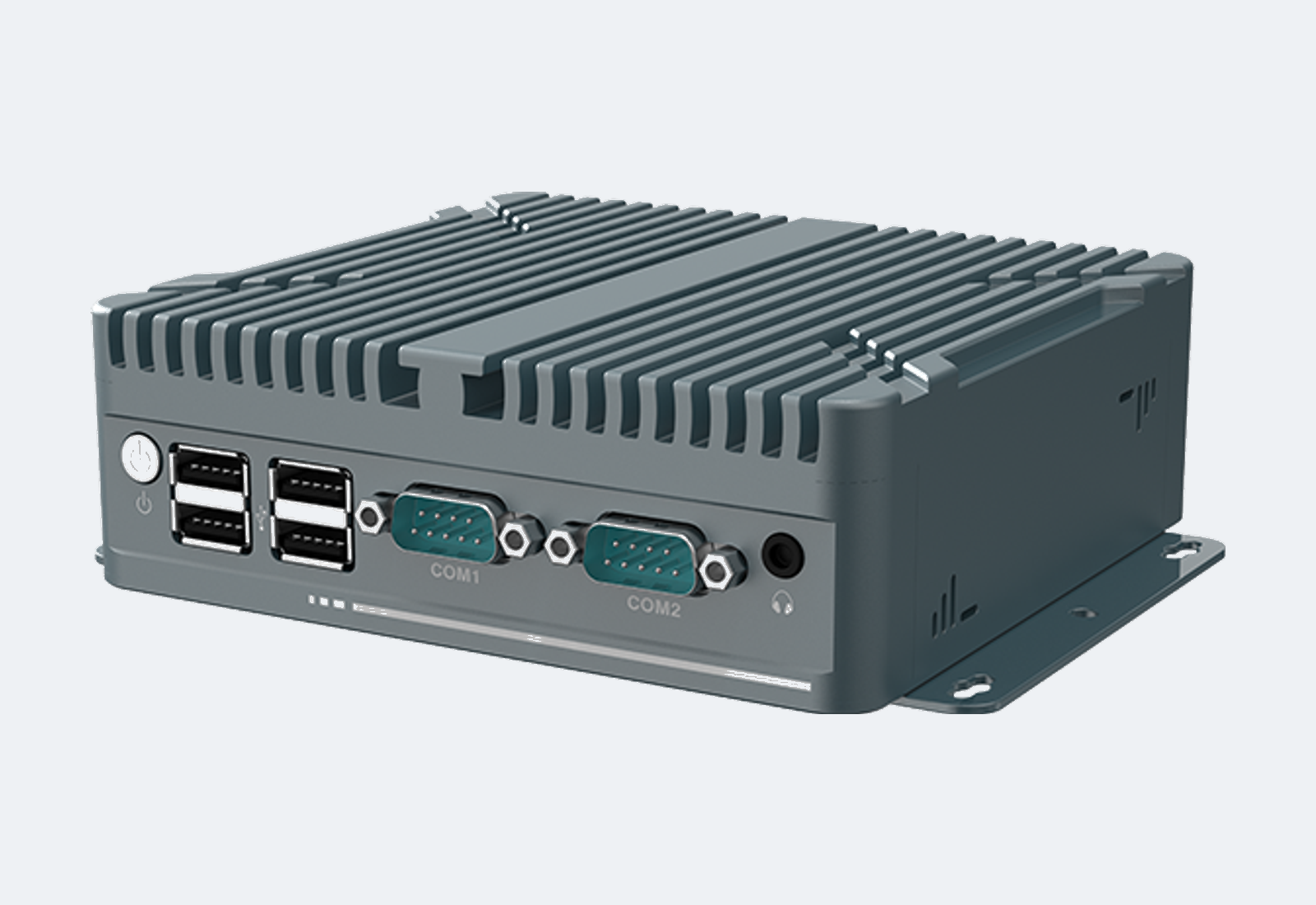

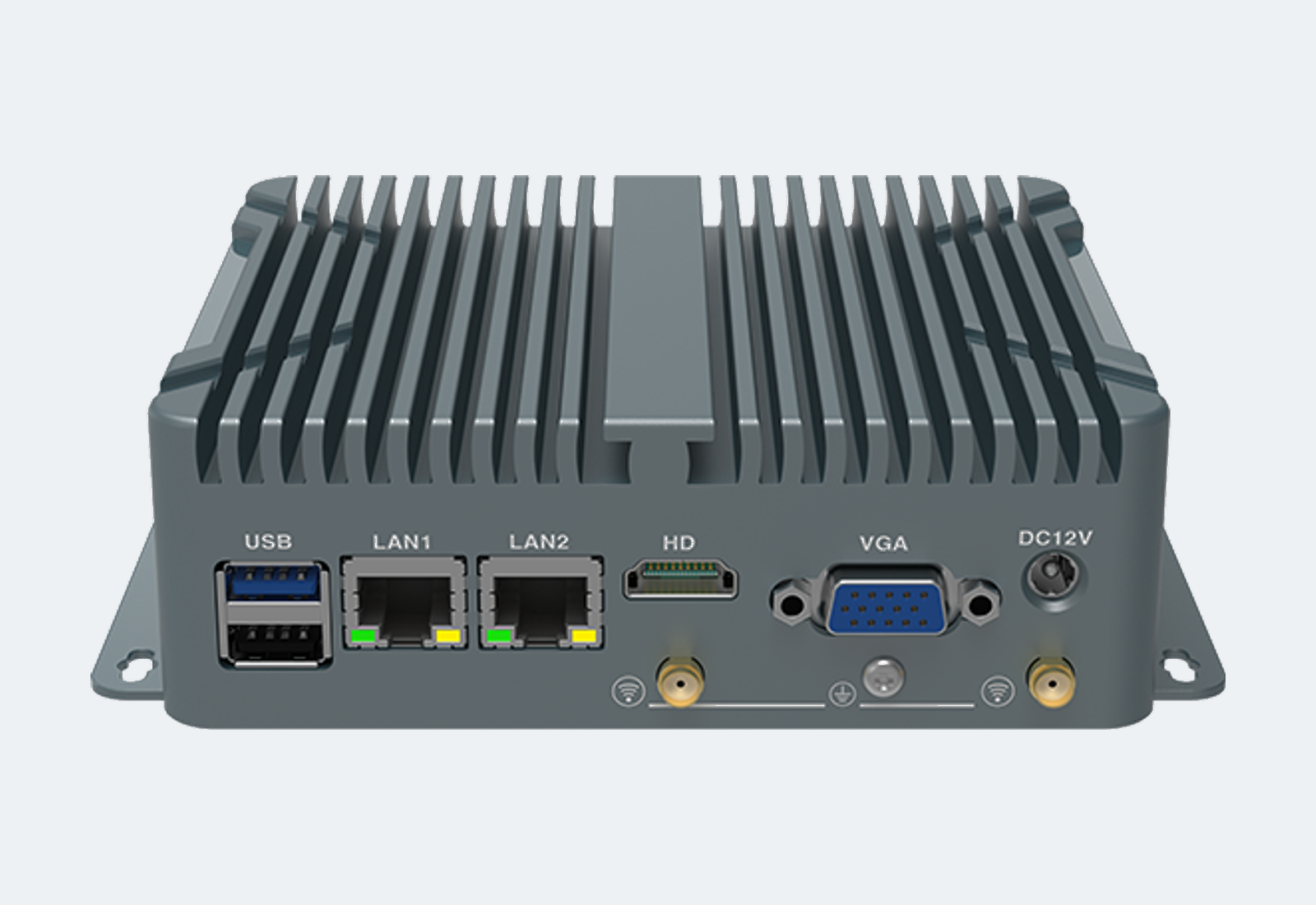

LN-1002 Fanless BOX-PC

Fanless industrial BOX-PC powered by Intel Celeron J1900 quad-core platform, with dual LAN, HDMI/VGA display outputs and flexible embedded installation support.

Suitable applications Industrial gateway / Embedded control / Automation terminal
Key I/O / ports 2 x LAN ports / 2 x USB3.0 + 2 x USB2.0
Mounting Recessed / Wall / Desktop Bracket
Power input DC12V input
OS support Windows / Linux support
Customization Custom I/O, BIOS / OS image, logo, packaging and lifecycle support
Request Quote Download Datasheet Send I/O Requirements
CPU Intel Celeron J1900 2.0GHz quad-core processor
LAN 2 x LAN ports
COM COM optional
USB 2 x USB3.0 + 2 x USB2.0
Display 1 x HDMI + 1 x VGA
Power DC12V input

Engineering Data

Full Specification Table

This table is the single authoritative area for complete product parameters.

Processor Intel Celeron J1900 2.0GHz quad-core processor, compatible with Intel Bay Trail-I/M/D series CPUs
Chipset Intel Bay Trail platform
Memory 1 x SO-DIMM slot, single-channel DDR3L, up to 8GB
Storage 1 x mSATA + 1 x 2.5-inch hard disk position
LAN 2 x LAN ports
USB 2 x USB3.0 + 2 x USB2.0
Display Output 1 x HDMI + 1 x VGA
Expansion MiniPCIe expansion slot, SIM card support
Power Input DC12V input
Material Fanless industrial enclosure
Thermal Design Fanless passive heat dissipation

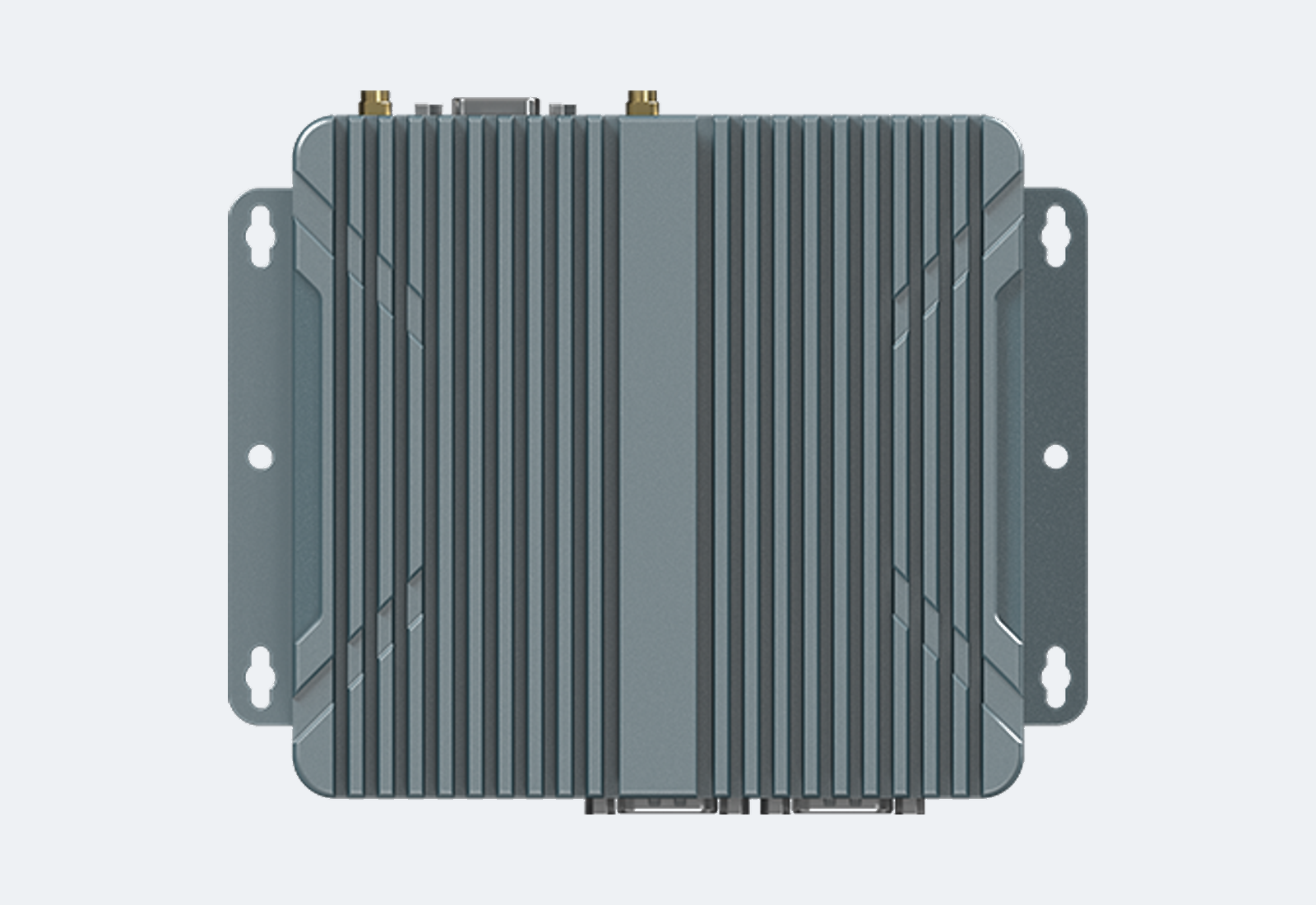

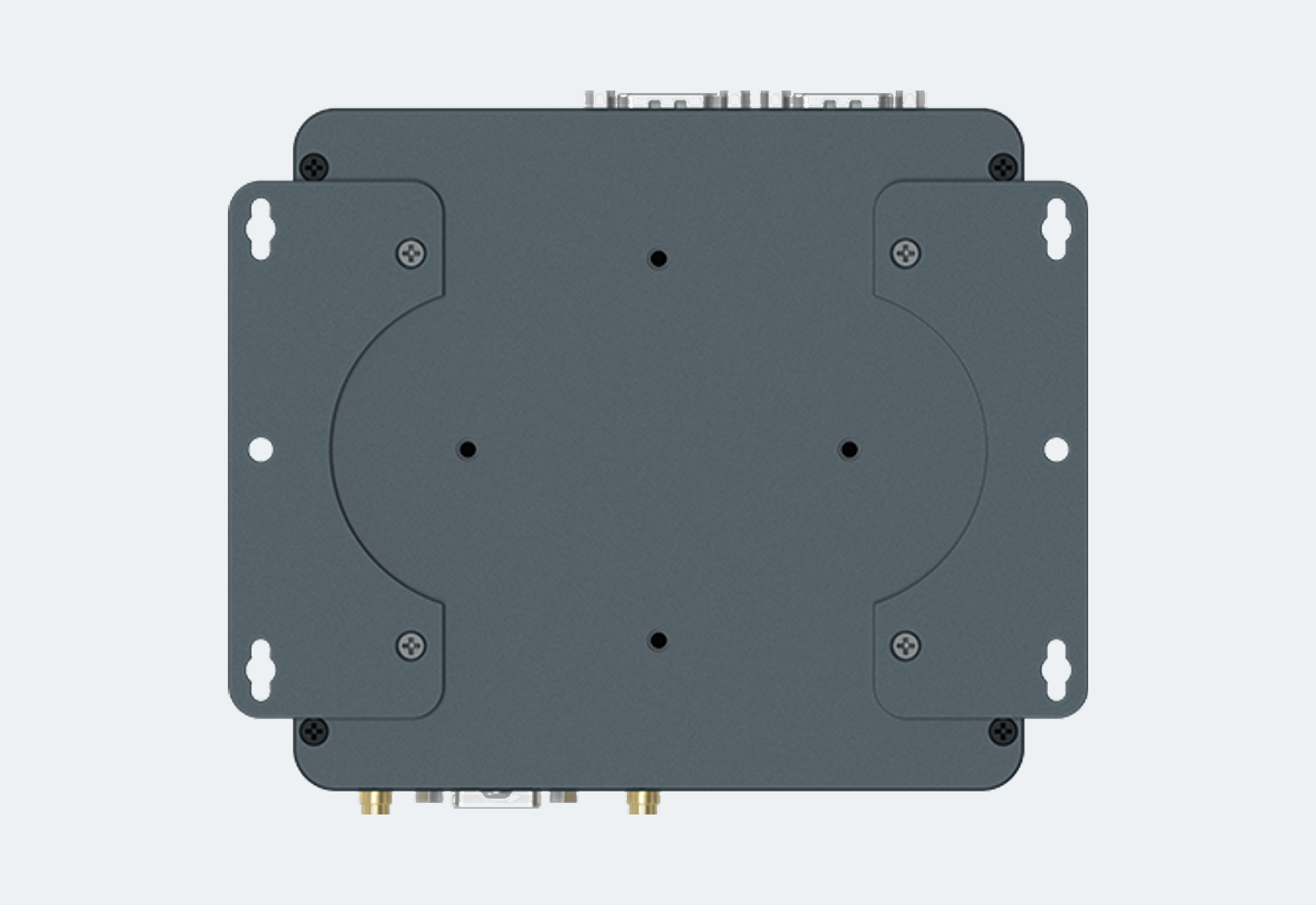

Mounting Recessed / Wall / Desktop Bracket

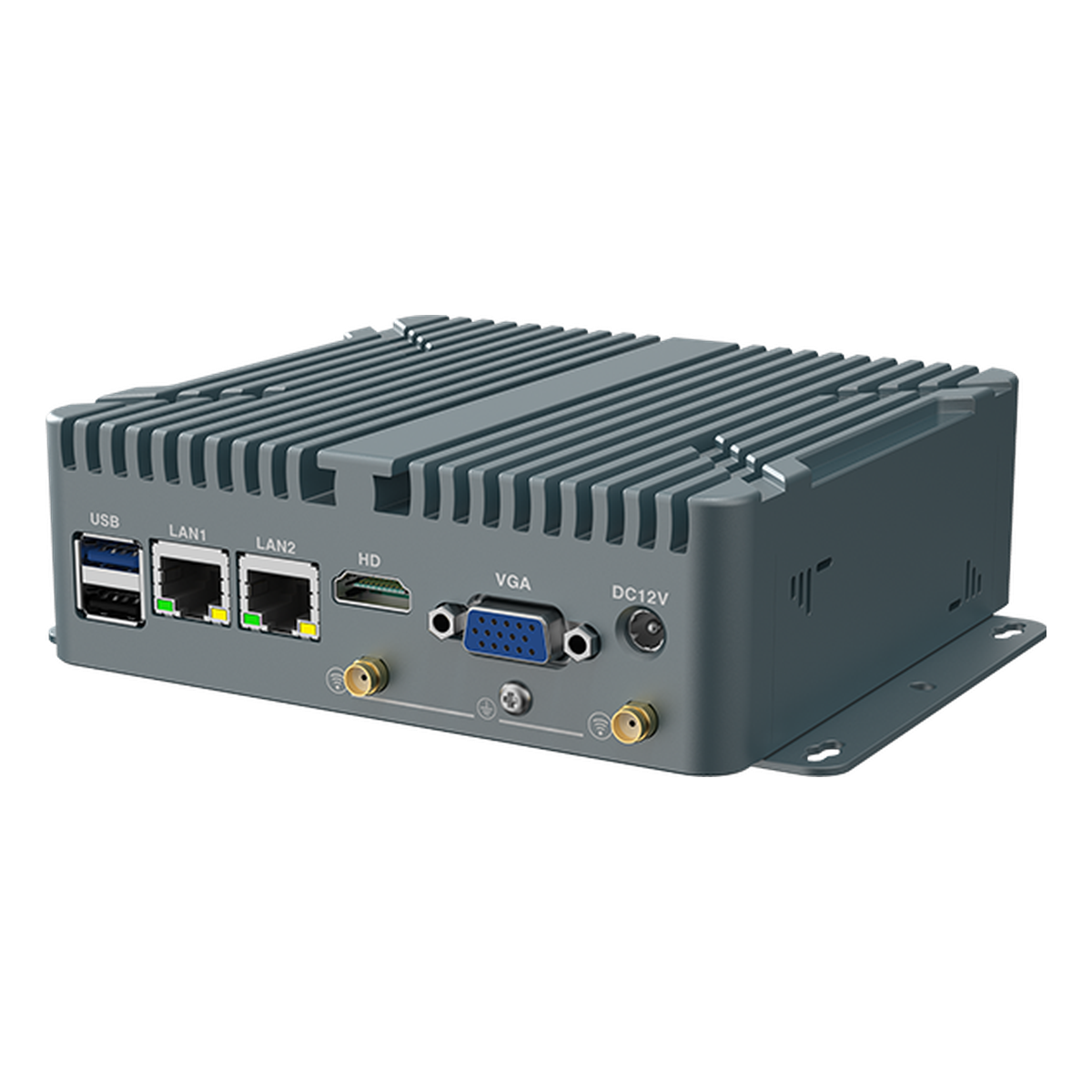

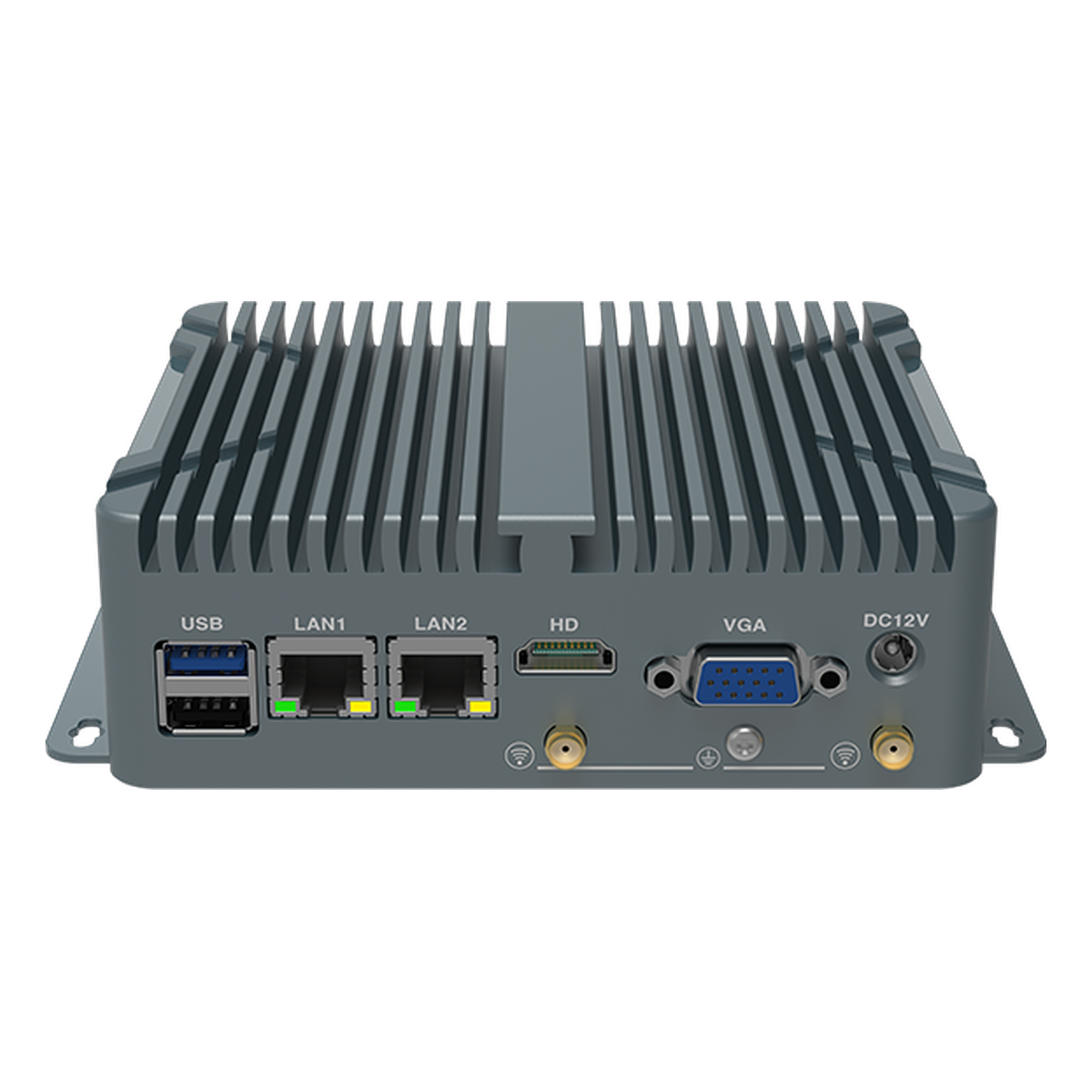

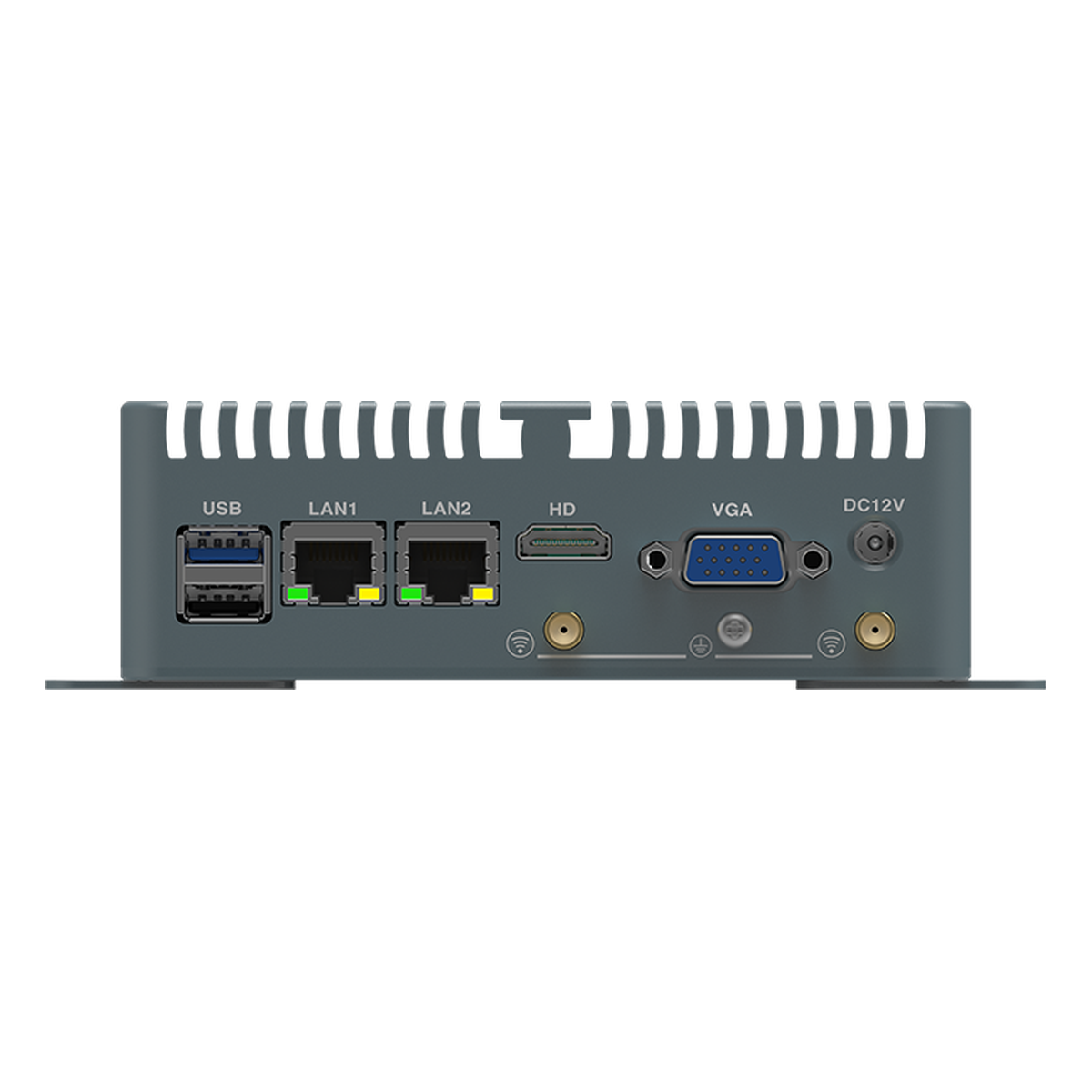

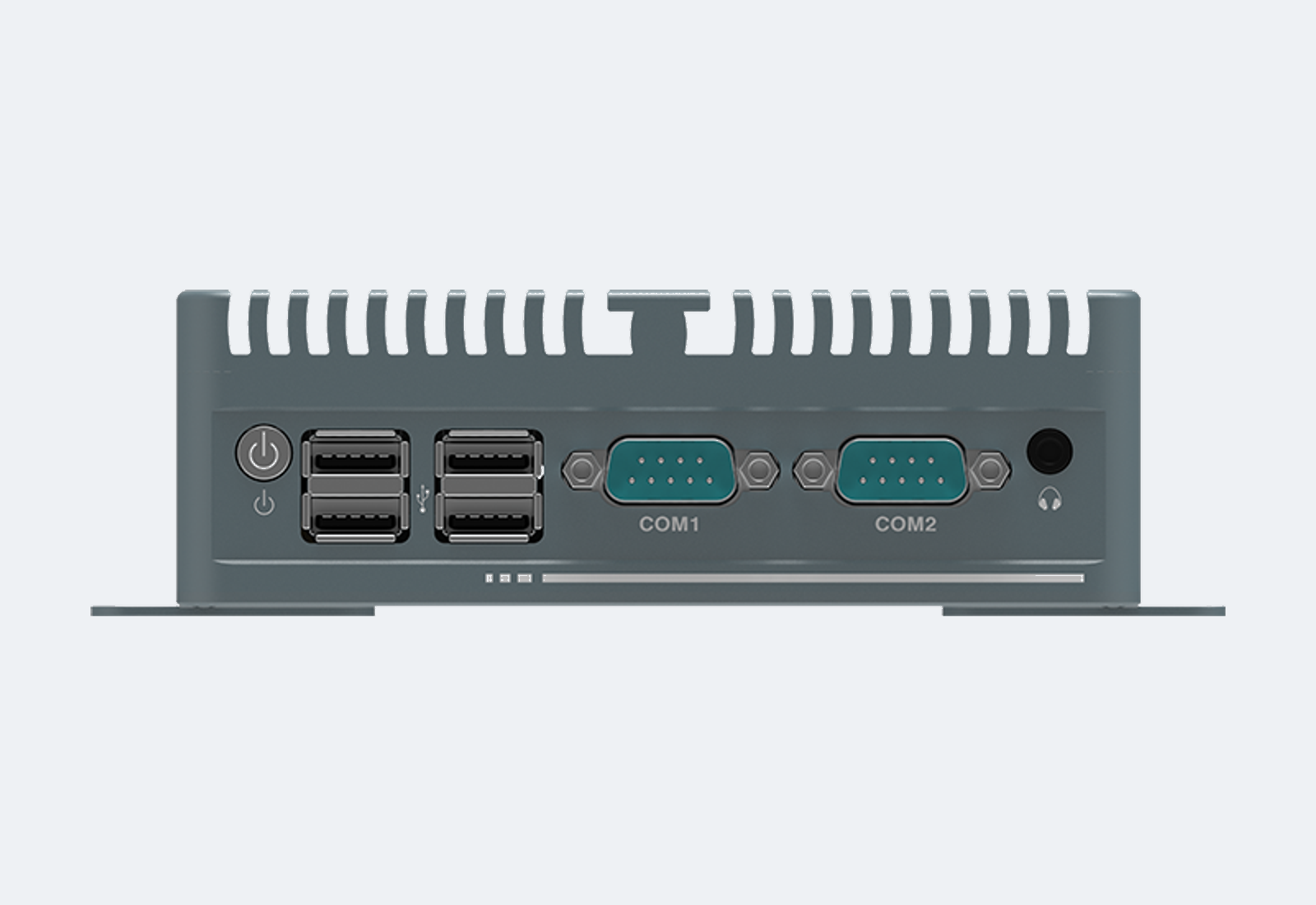

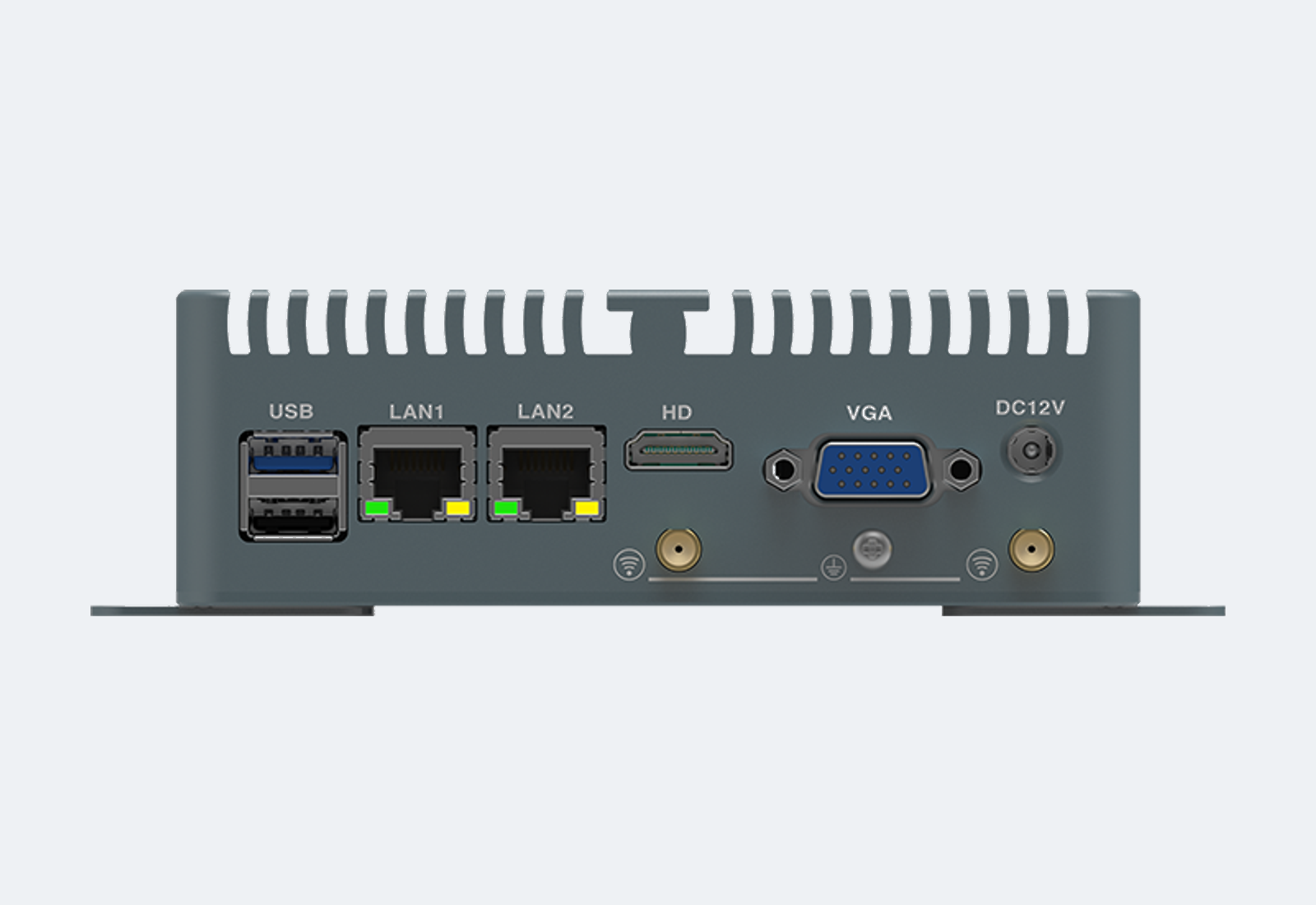

I/O Visual Layout

Connector position overview

Use this visual map to identify connector areas. Detailed electrical and port specifications are kept only in the Full Specification Table.

LAN

Ethernet / network port area

USB

USB peripheral connection area

Display

Monitor output position

Power

DC input position

Expansion

Module or expansion slot area

Configuration Options

Project-selectable options

CPU Options

Multiple processor platforms available by project

Memory Options

Capacity and module configuration selectable

Storage Options

SSD capacity and storage type selectable

Power Input Options

Standard or wide-voltage input available by project

Operating System Options

Project configurable

Mounting Options

Mounting kit selected by installation method

Branding / Packaging Options

Custom label, logo, carton and project packaging support

Use Case Fit

Applications this product can support

Application Industrial gateway Application Embedded control Application Automation terminal Application IoT edge device Application Machine control

OEM / ODM Support

Customization support capabilities

Custom labelCustom packagingBIOS / OS image supportProject-based configuration reviewLong lifecycle supply support

Quality & Compliance

Quality & Compliance for Industrial Projects

Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.

CE / FCC / RoHS documentation support100% aging test discussion for batch ordersWide temperature and vibration reviewFanless thermal design validationLong lifecycle supply supportOEM / ODM engineering communication
