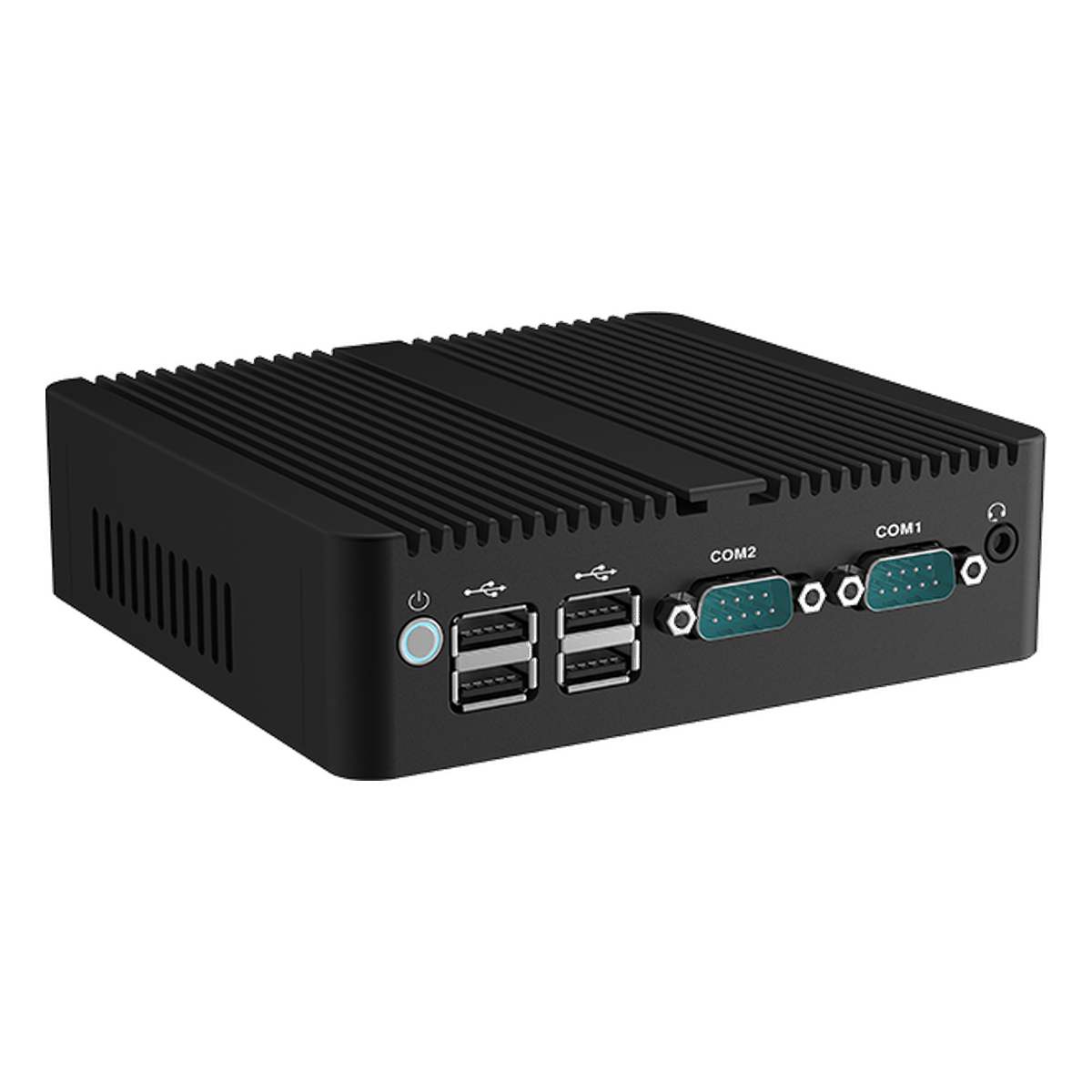

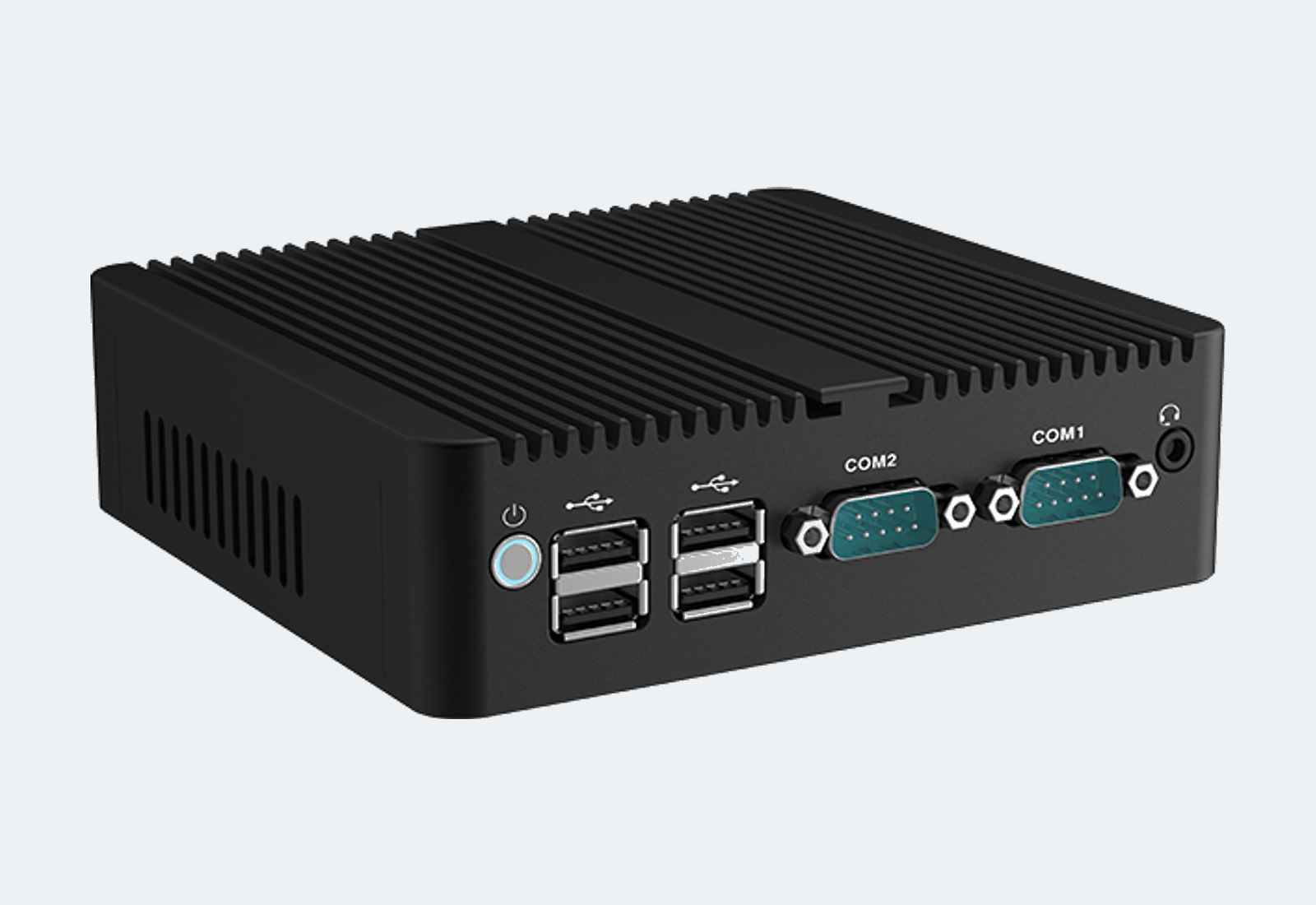

LN-1001 Fanless Industrial BOX-PC

Compact fanless industrial BOX-PC based on Intel Bay Trail N2840 platform, designed for embedded control, industrial IoT and light automation applications.

Suitable applications Industrial IoT / Light automation / Embedded control
Key I/O / ports 2 x LAN ports / 2 x COM / 4 x USB + 2 x rear USB
Mounting Embedded / Wall Mount / Desktop
Power input DC12V input
OS support Windows 10 / Windows 11 / Linux
Customization Custom I/O, BIOS / OS image, logo, packaging and lifecycle support
Request Quote Download Datasheet Send I/O Requirements
CPU Intel Bay Trail N2840 2.0GHz dual-core processor
LAN 2 x LAN ports
COM 2 x COM
USB 4 x USB + 2 x rear USB
Display 1 x HDMI + 1 x VGA
Power DC12V input

Engineering Data

Full Specification Table

This table is the single authoritative area for complete product parameters.

Processor Intel Bay Trail N2840 2.0GHz dual-core processor
Chipset Intel Bay Trail platform
Memory 1 x DDR3L 1333MHz SO-DIMM, up to 8GB
Storage 1 x mSATA + 1 x SATA3.0
LAN 2 x LAN ports
COM 2 x COM
USB 4 x USB + 2 x rear USB
Audio 1 x AUDIO
Display Output 1 x HDMI + 1 x VGA
Power Input DC12V input
Operating Temperature 10°C to 60°C
Material Fanless industrial enclosure

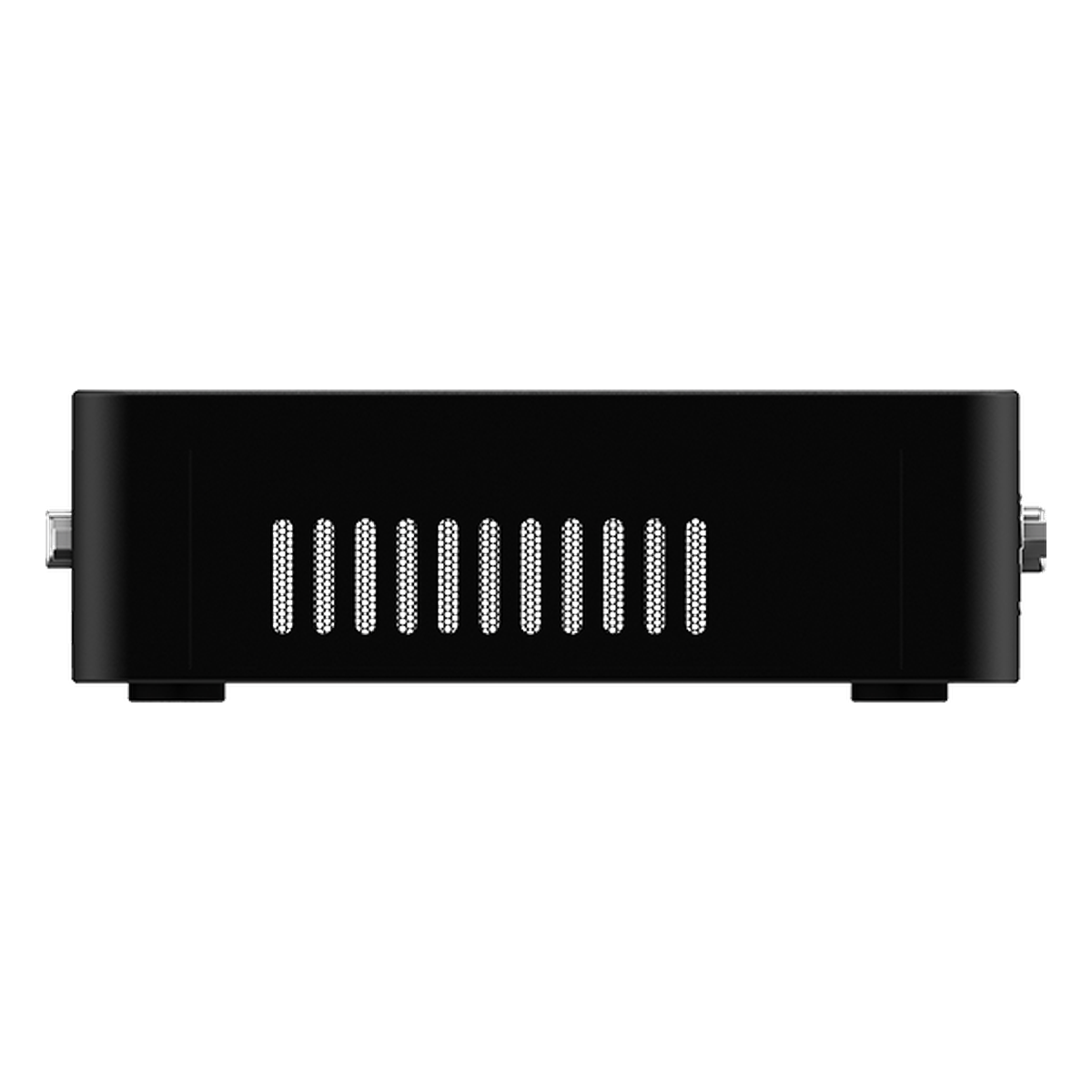

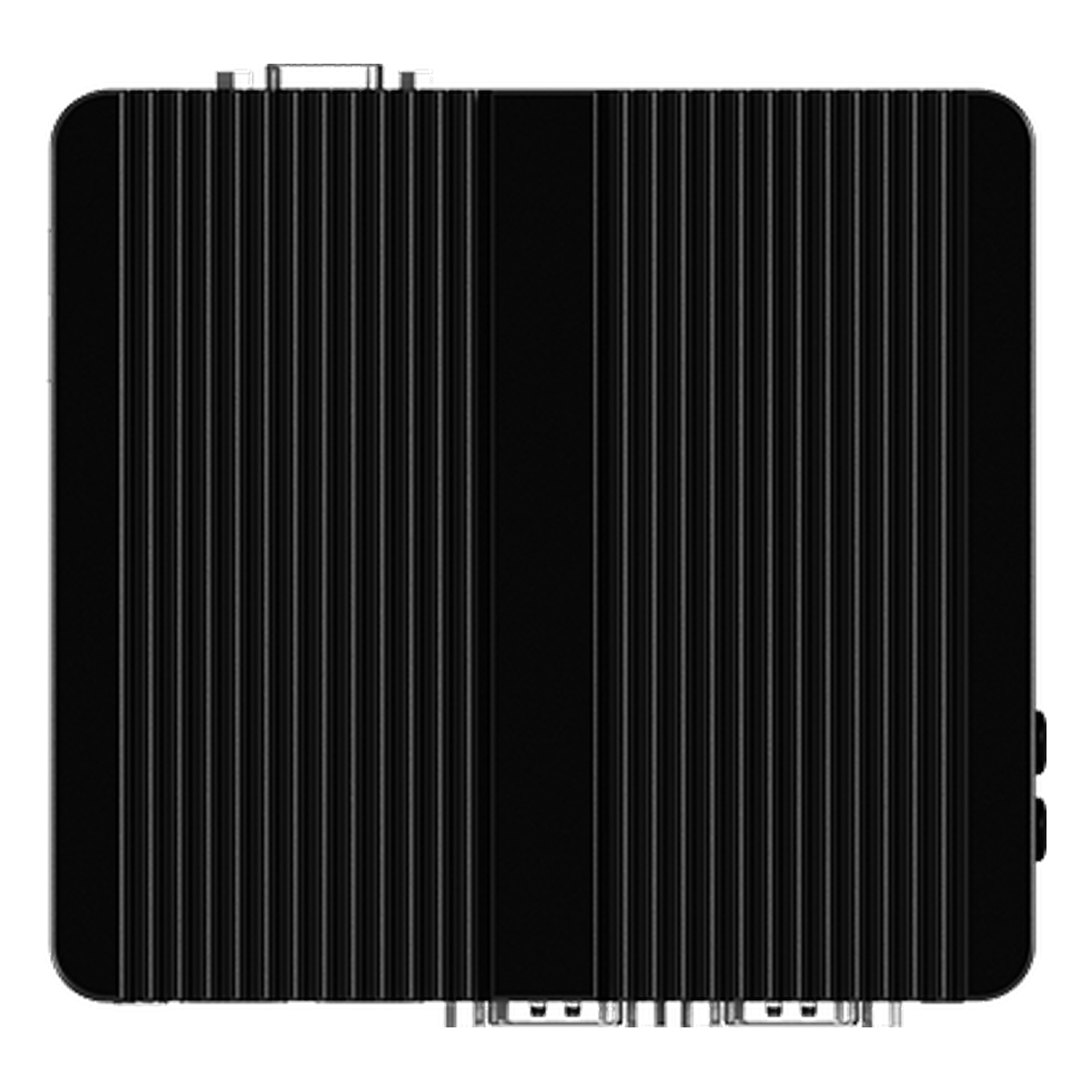

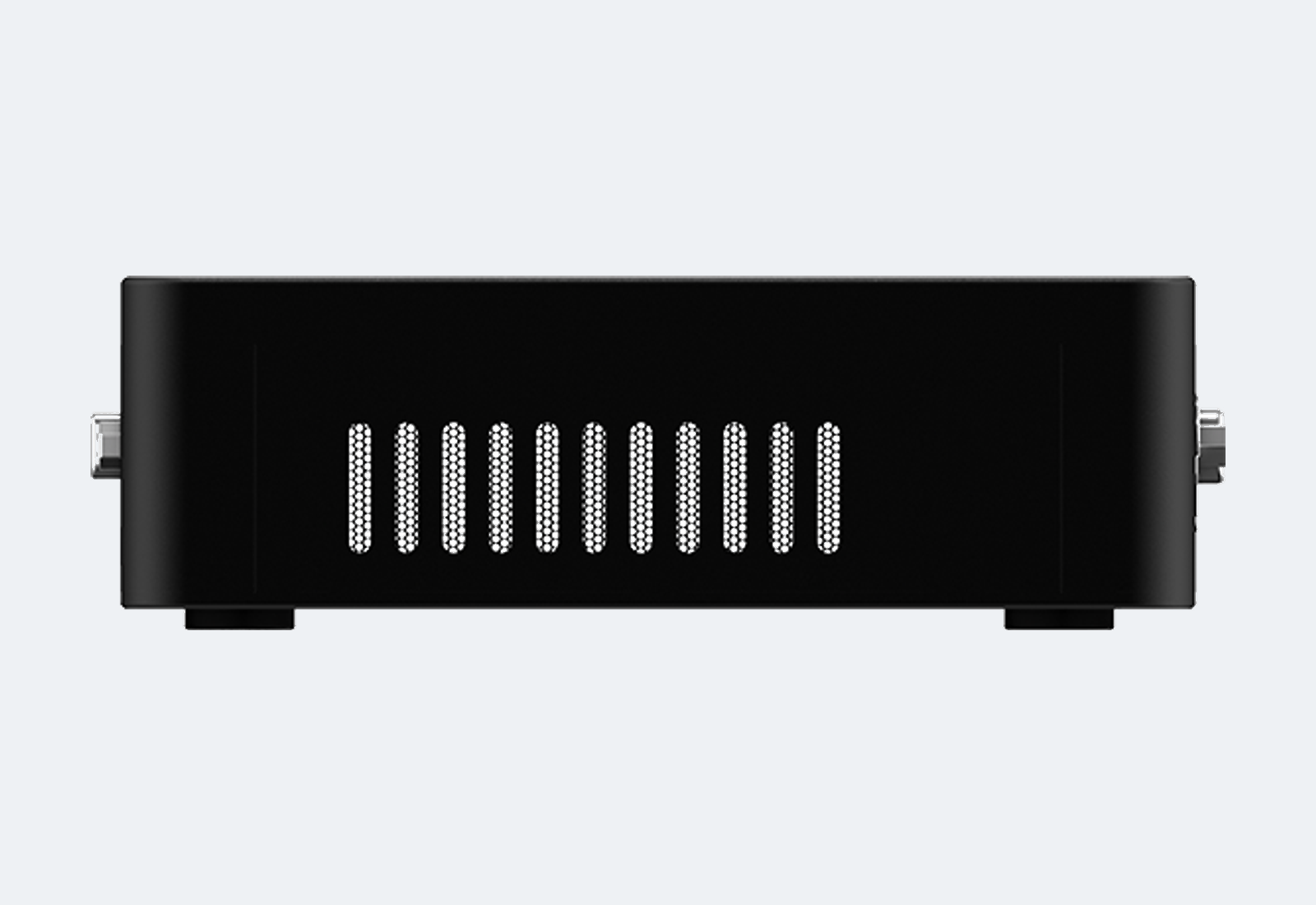

Thermal Design Fanless passive heat dissipation

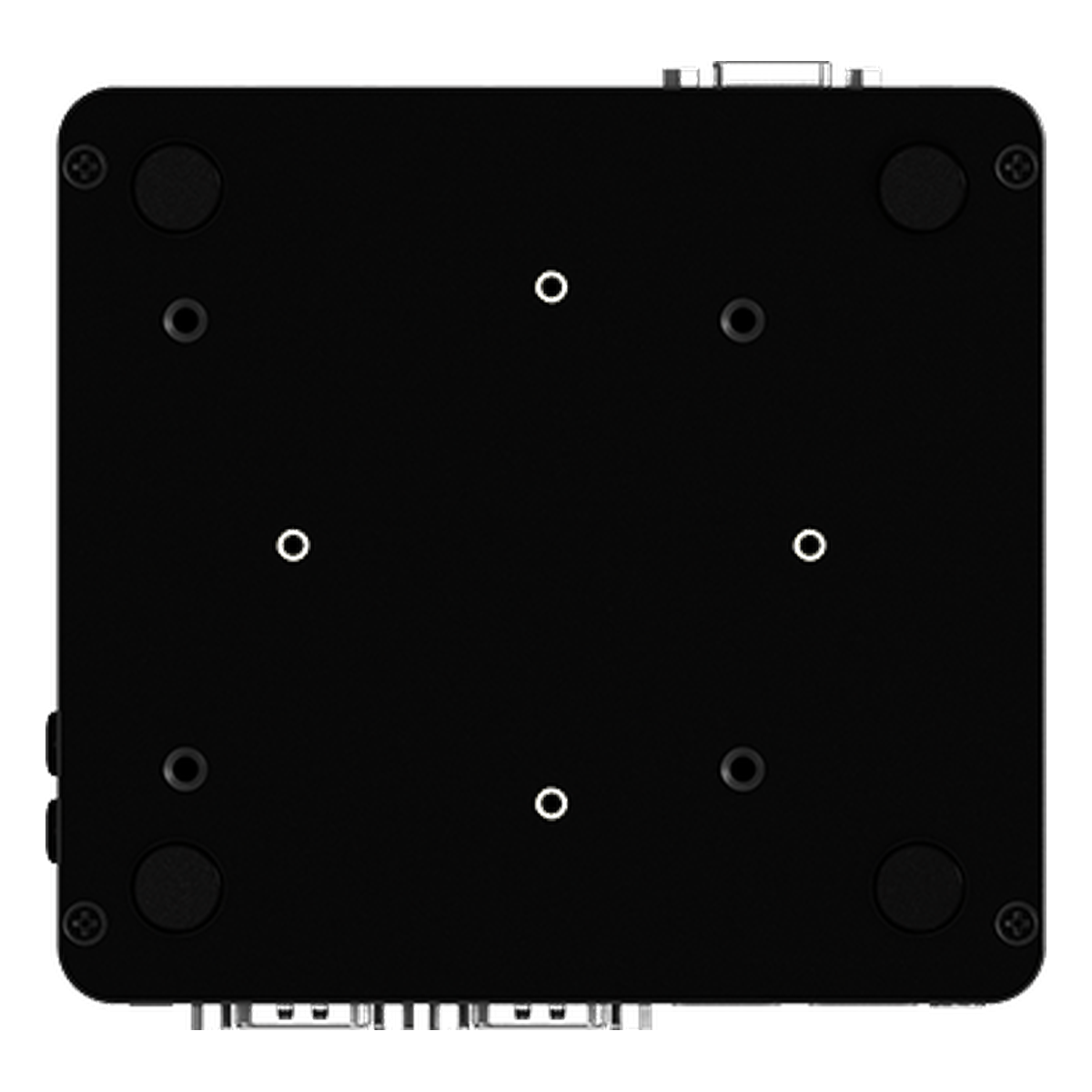

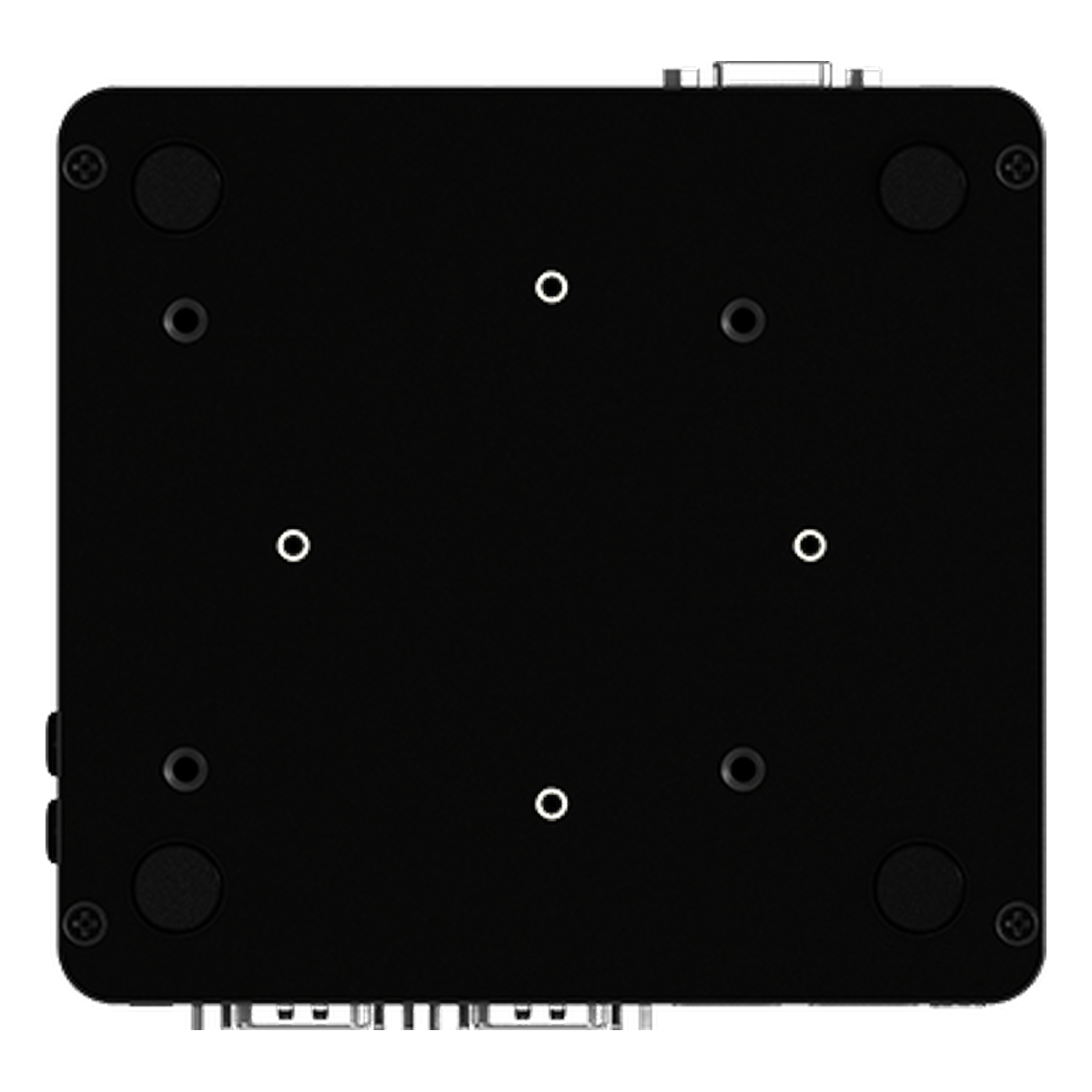

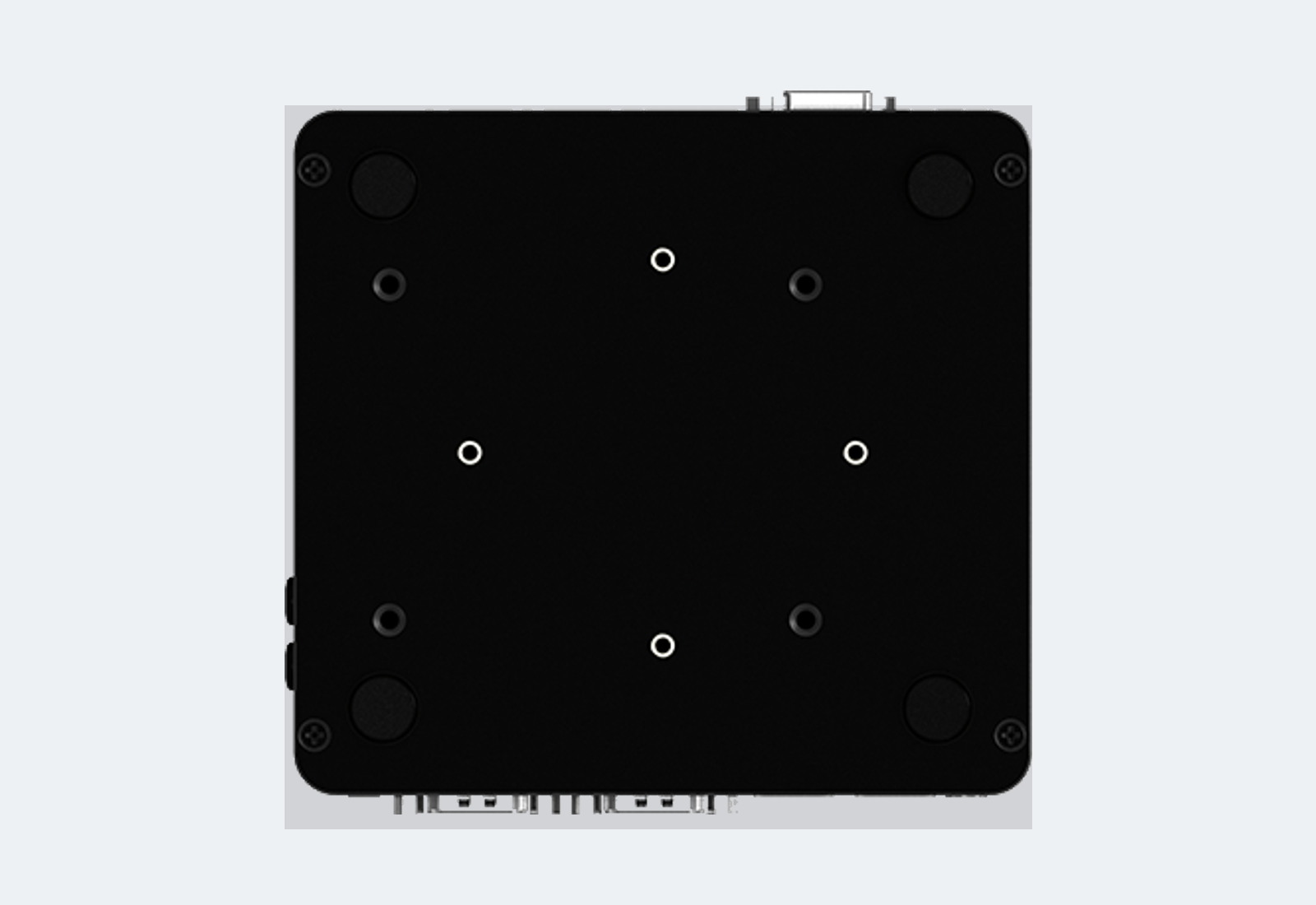

Mounting Embedded / Wall Mount / Desktop
Operating System Windows 10 / Windows 11 / Linux

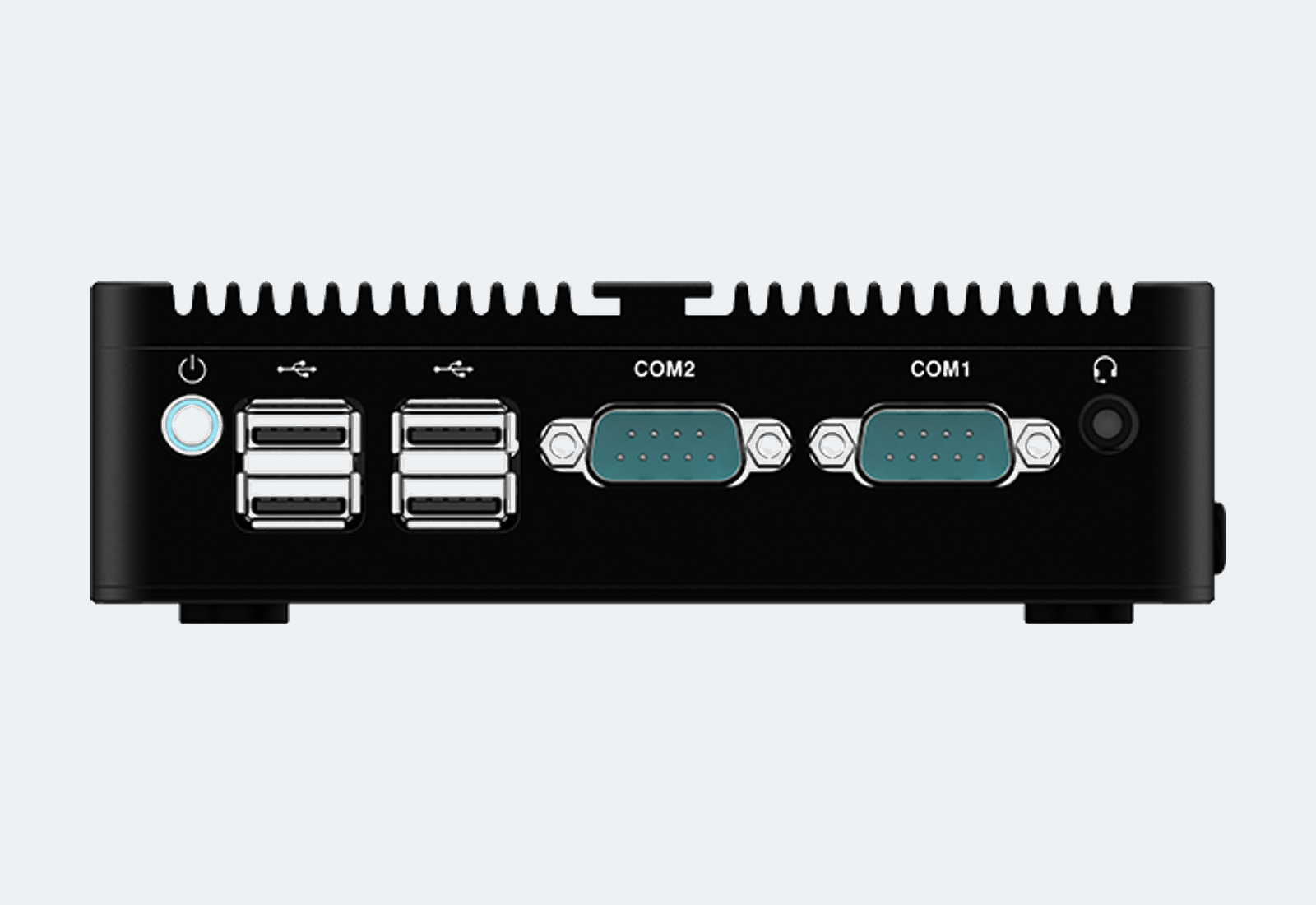

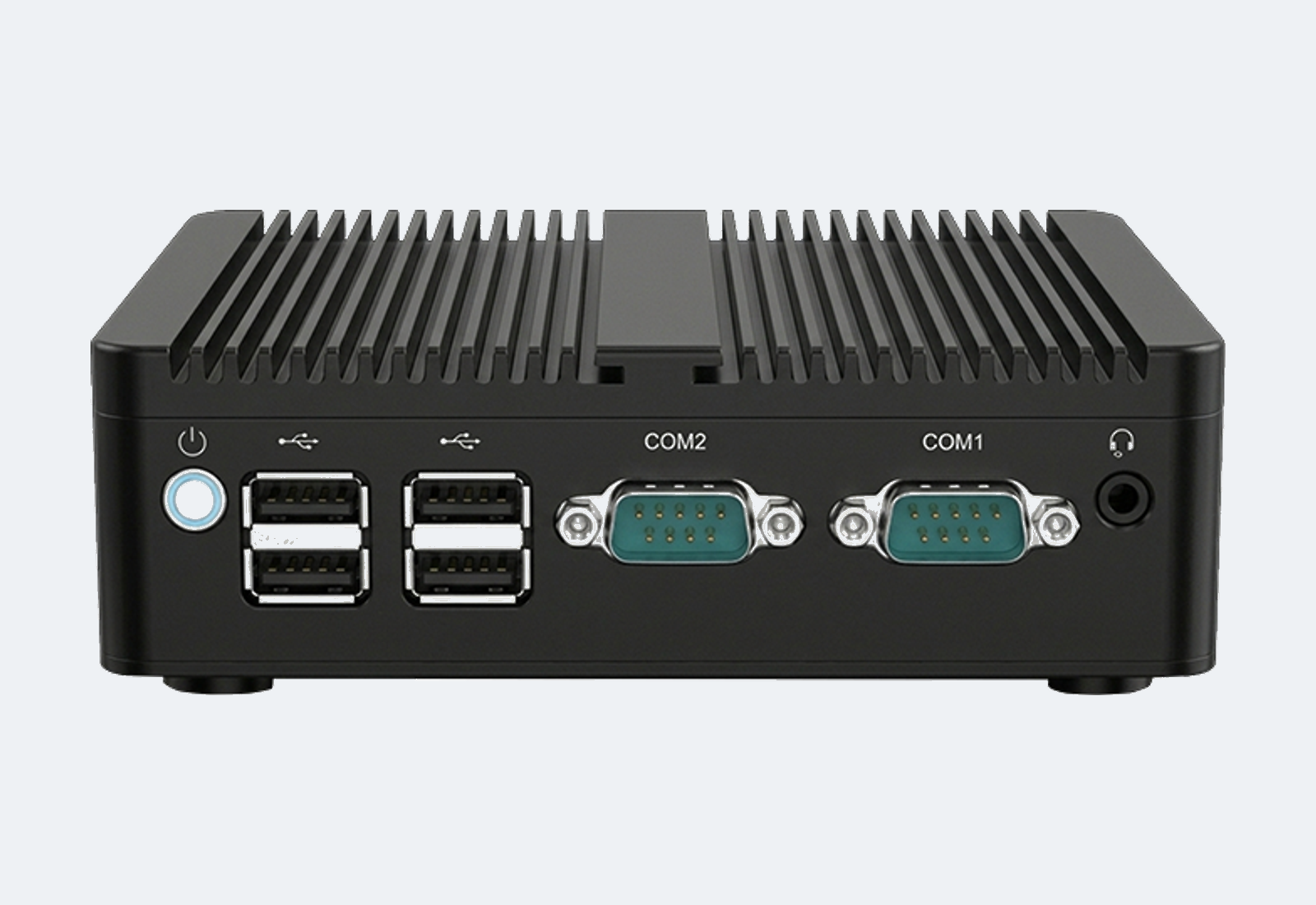

I/O Visual Layout

Connector position overview

Use this visual map to identify connector areas. Detailed electrical and port specifications are kept only in the Full Specification Table.

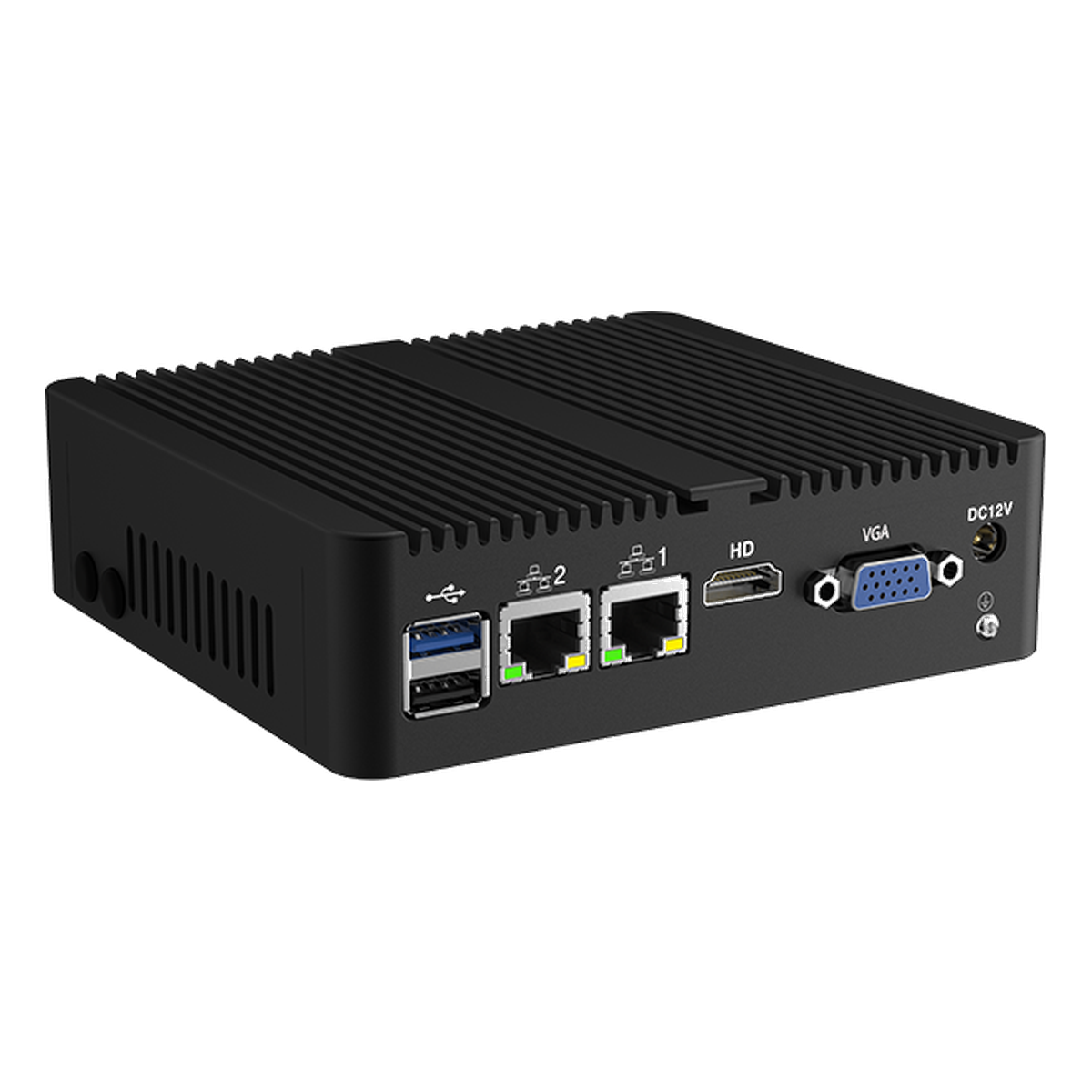

LAN

Ethernet / network port area

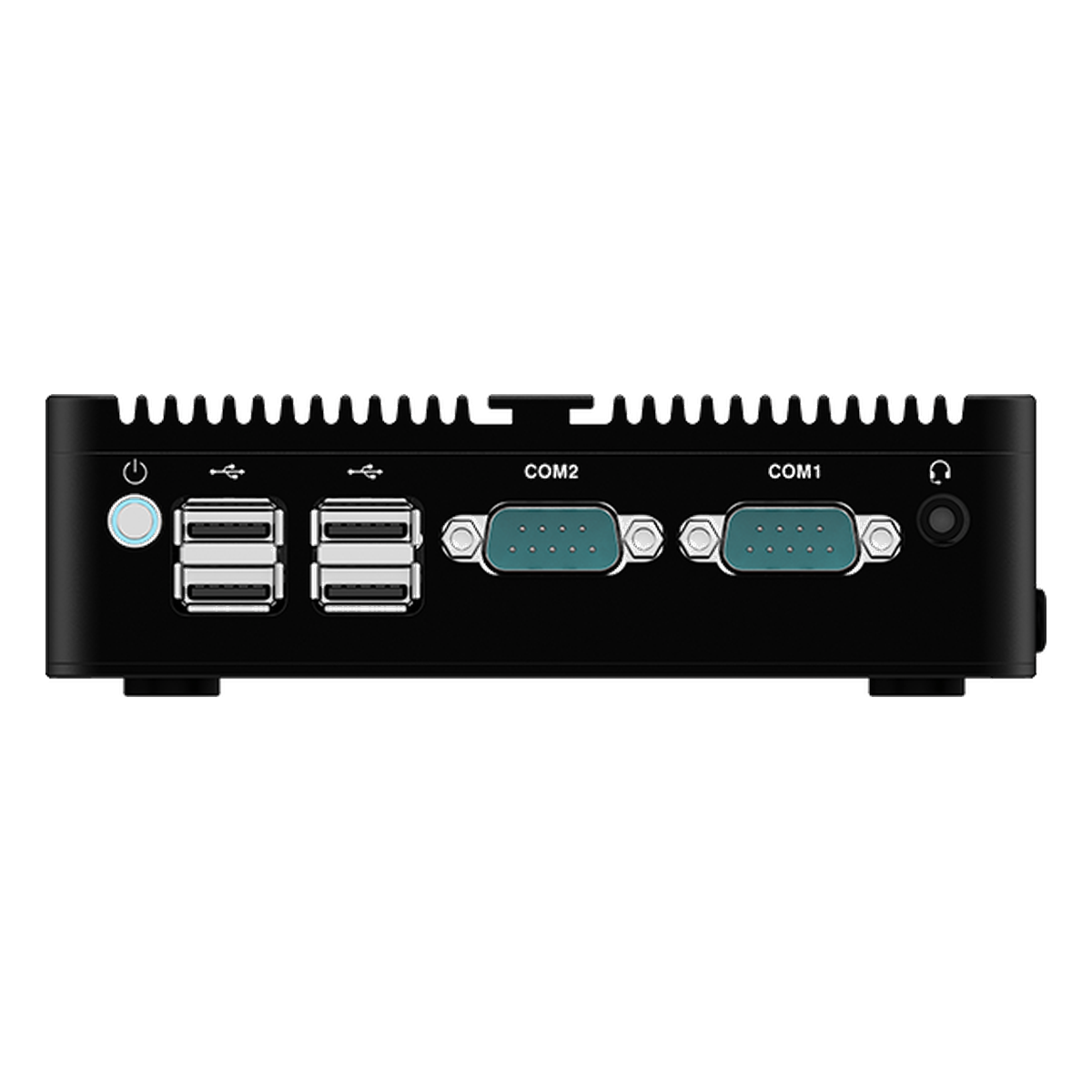

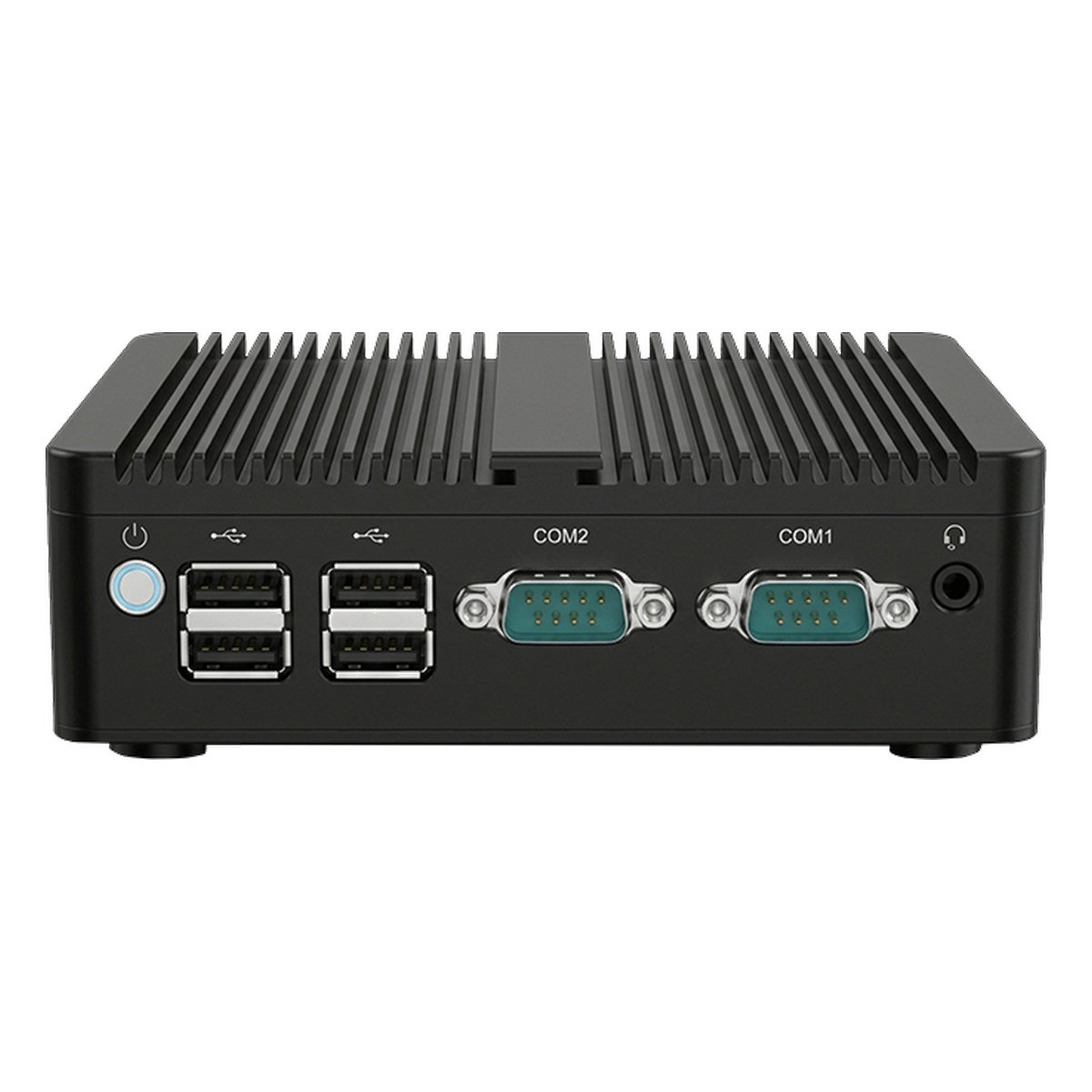

COM

Serial DB9 communication area

USB

USB peripheral connection area

Display

Monitor output position

Power

DC input position

Configuration Options

Project-selectable options

CPU Options

Multiple processor platforms available by project

Memory Options

Capacity and module configuration selectable

Storage Options

SSD capacity and storage type selectable

Power Input Options

Standard or wide-voltage input available by project

Operating System Options

Windows / Linux image and driver support

Mounting Options

Mounting kit selected by installation method

Branding / Packaging Options

Custom label, logo, carton and project packaging support

Use Case Fit

Applications this product can support

Application Industrial IoT Application Light automation Application Embedded control Application Digital signage Application Industrial gateway

OEM / ODM Support

Customization support capabilities

Custom labelCustom packagingBIOS / OS image supportProject-based configuration reviewLong lifecycle supply support

Quality & Compliance

Quality & Compliance for Industrial Projects

Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.

CE / FCC / RoHS documentation support100% aging test discussion for batch ordersWide temperature and vibration reviewFanless thermal design validationLong lifecycle supply supportOEM / ODM engineering communication
