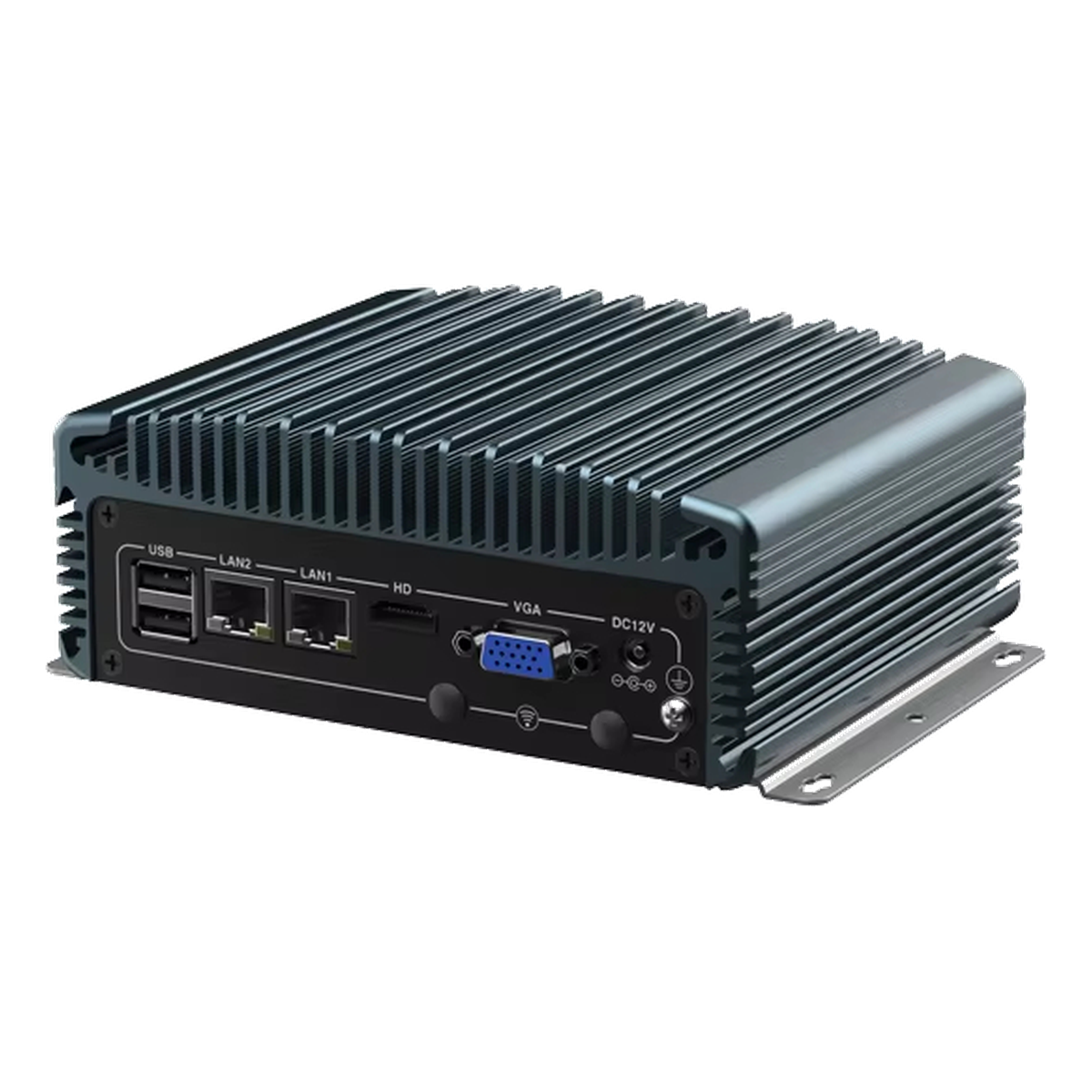

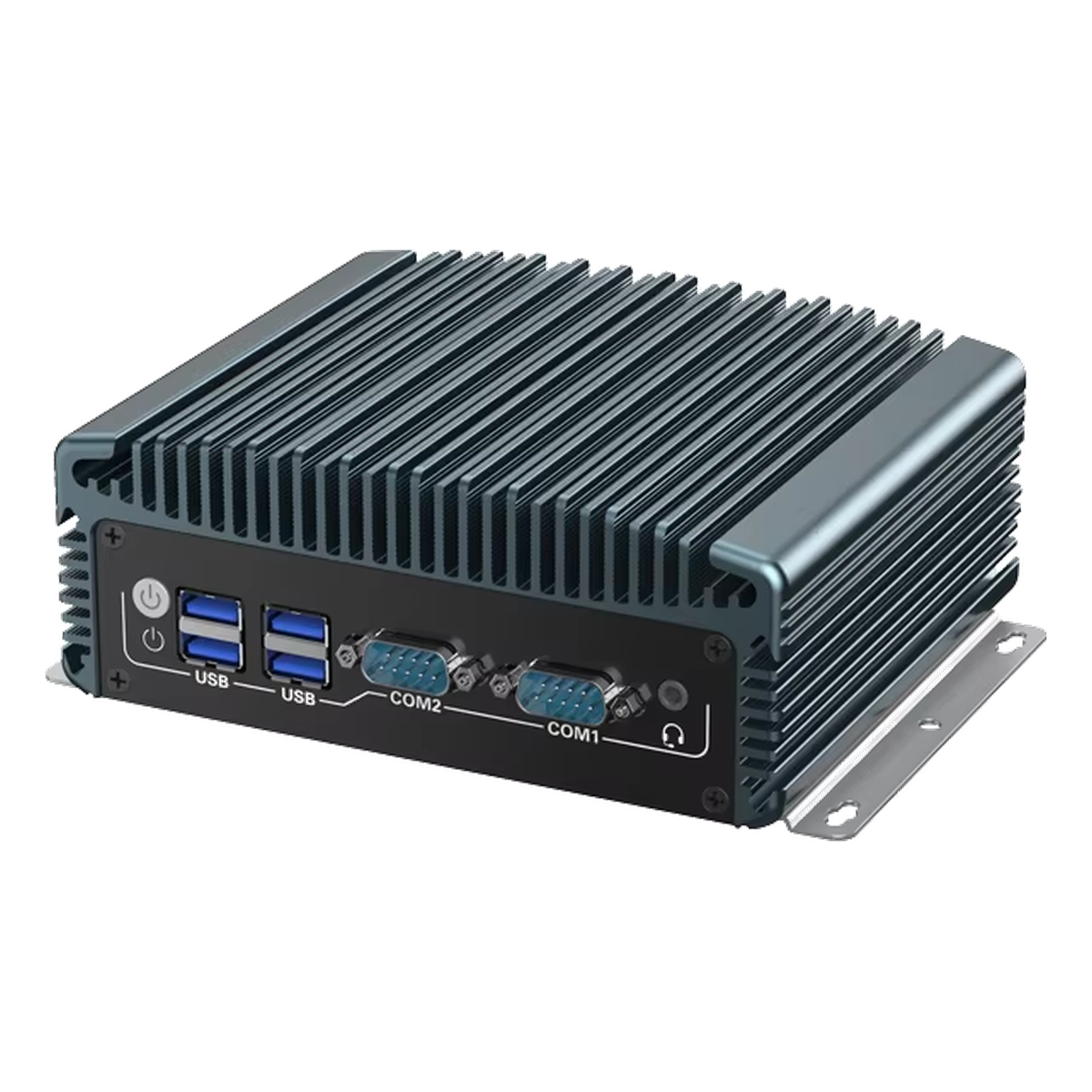

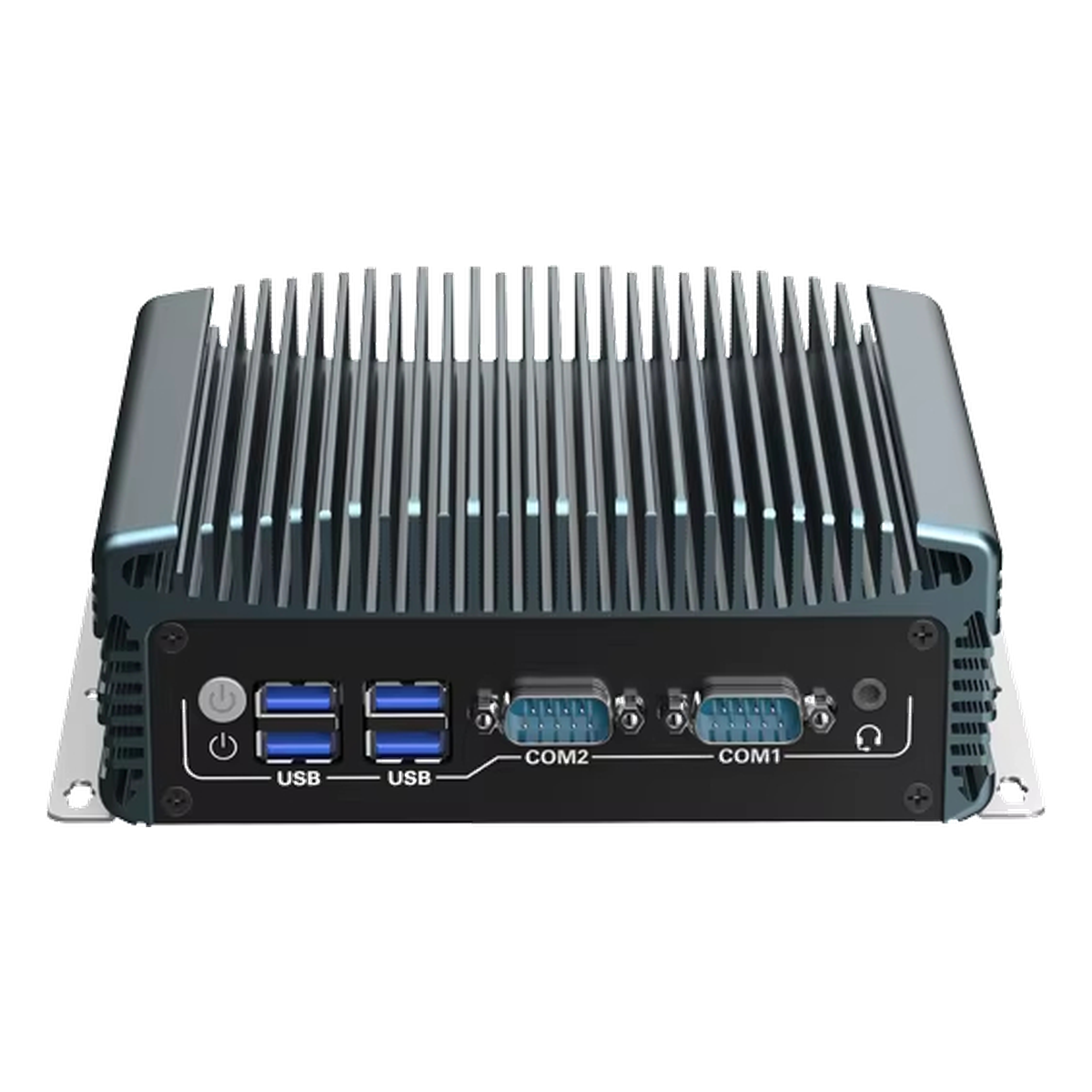

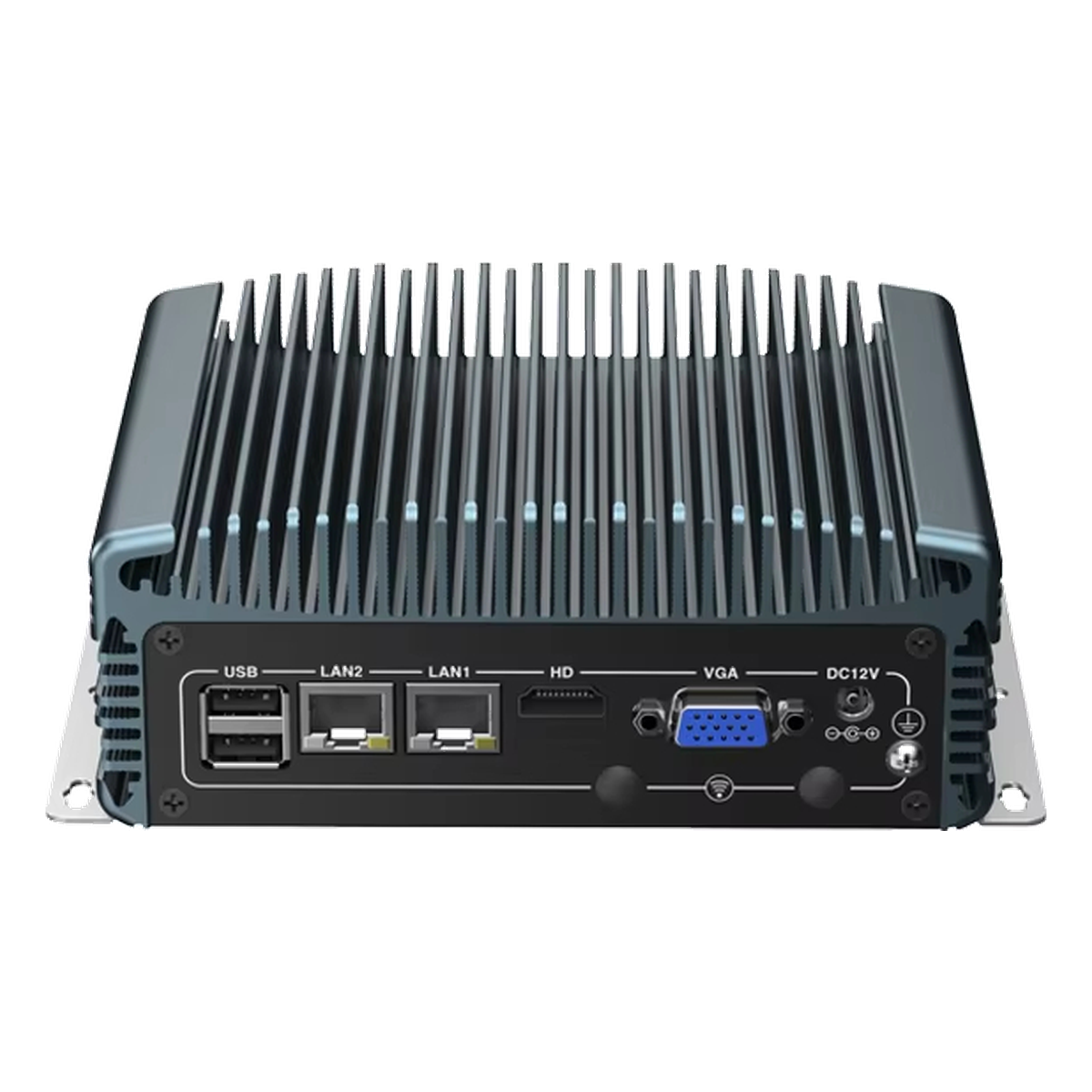

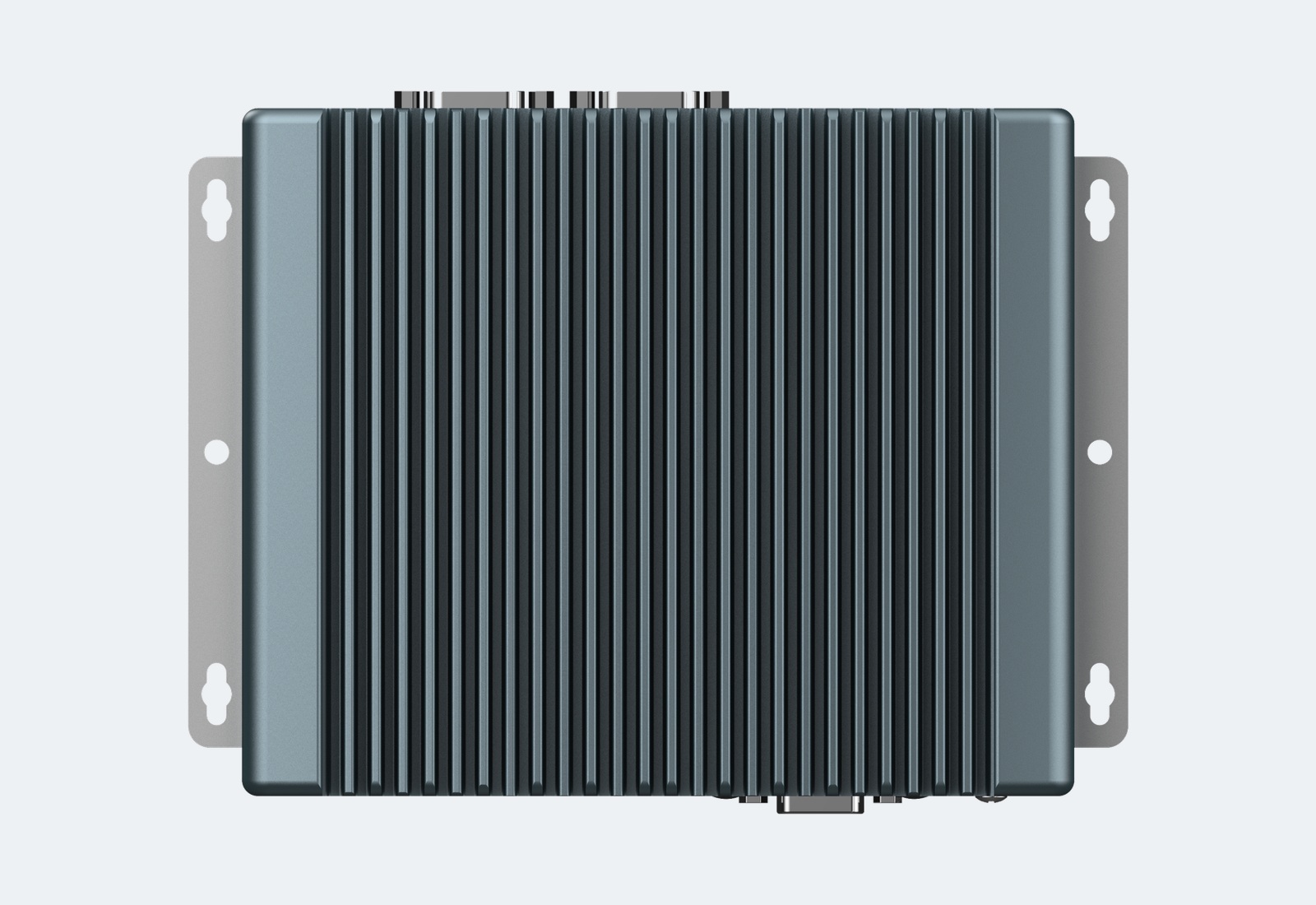

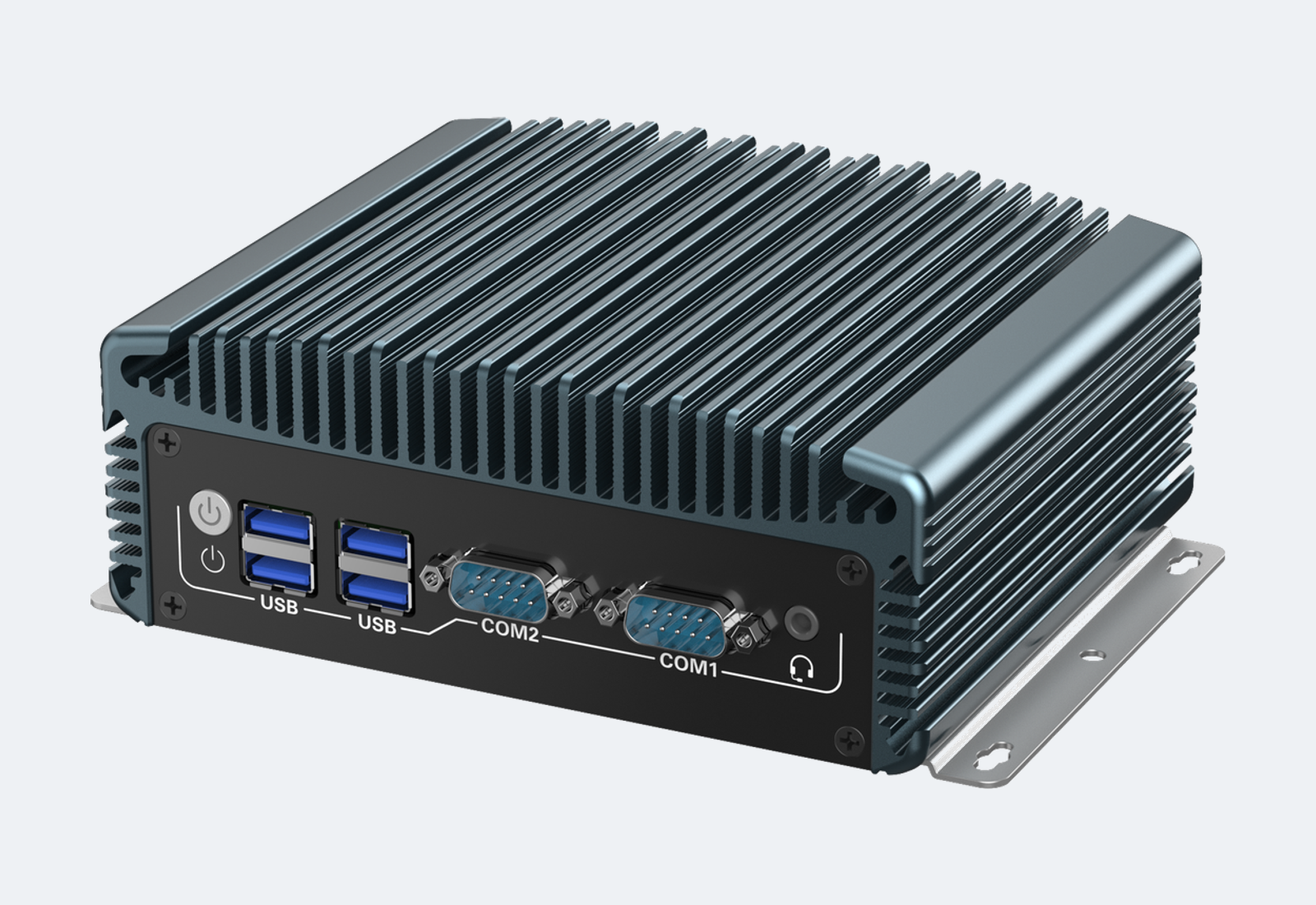

LN-1010 Fanless Industrial BOX-PC

Fanless industrial BOX-PC based on Intel 4th to 7th generation processor platform, with dual LAN, dual COM, HDMI/VGA display outputs and embedded installation support.

Suitable applications Industrial automation / Embedded control / Industrial gateway
Key I/O / ports 2 x LAN ports / 2 x COM RS232 / 4 x USB + 2 x rear USB
Mounting Embedded installation / Wall-mounted installation
Power input DC12V input
OS support Windows / Linux support
Customization Custom I/O, BIOS / OS image, logo, packaging and lifecycle support
Request Quote Download Datasheet Send I/O Requirements
CPU Onboard Intel 4th / 5th / 6th / 7th generation processor
LAN 2 x LAN ports
COM 2 x COM RS232
USB 4 x USB + 2 x rear USB
Display 1 x HDMI2.0 + 1 x VGA
Power DC12V input

Engineering Data

Full Specification Table

This table is the single authoritative area for complete product parameters.

Processor Onboard Intel 4th / 5th / 6th / 7th generation processor, TDP 15W
Chipset Intel platform
Memory 1 x DDR4 SO-DIMM, up to 16GB
Storage 1 x mSATA + 1 x SATA3.0
LAN 2 x LAN ports
COM 2 x COM RS232
USB 4 x USB + 2 x rear USB
Audio 1 x 2-in-1 audio
Display Output 1 x HDMI2.0 + 1 x VGA
Expansion MiniPCIe expansion slot and SIM card support
Power Input DC12V input
Material Fanless industrial enclosure

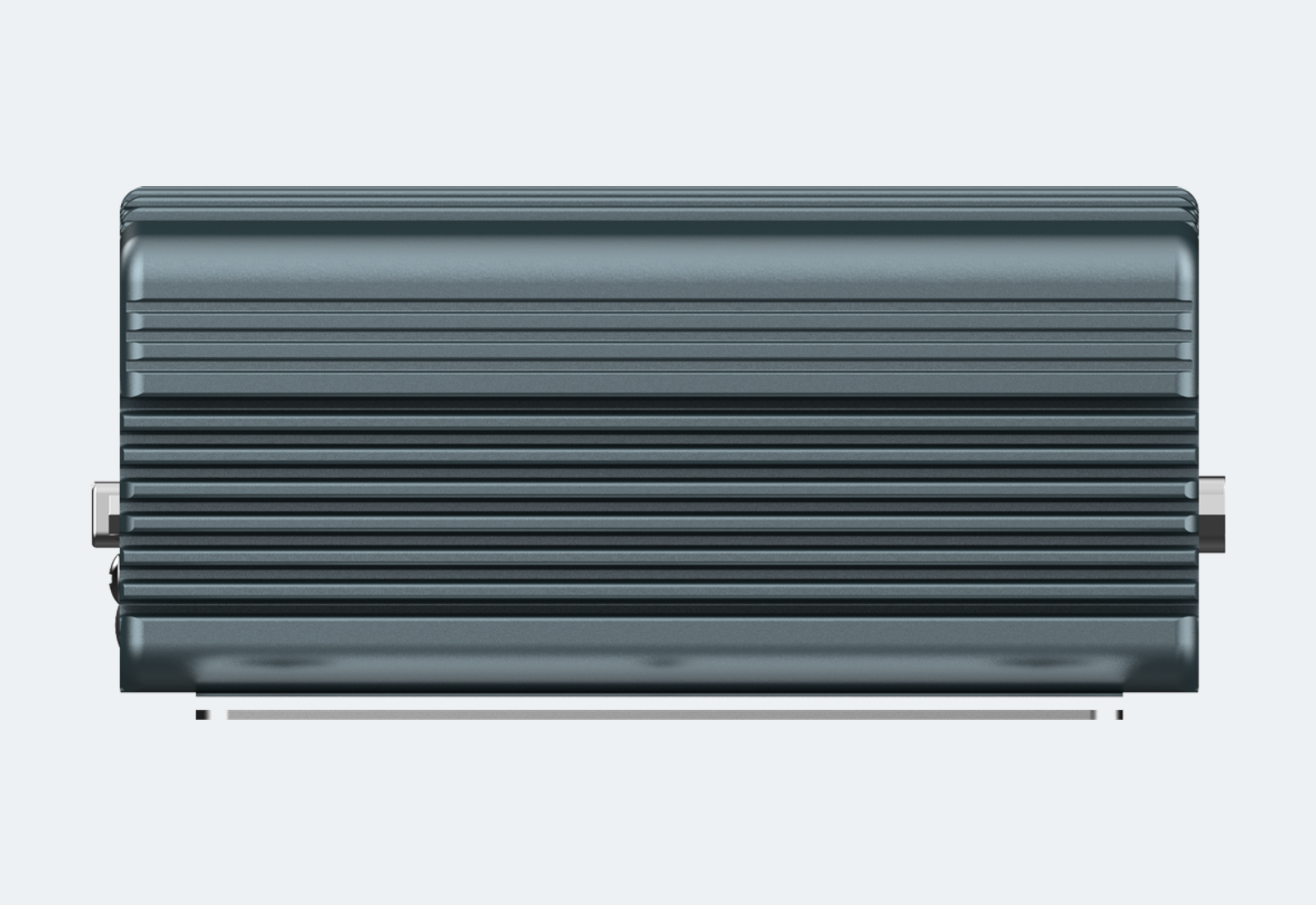

Thermal Design Fanless passive heat dissipation

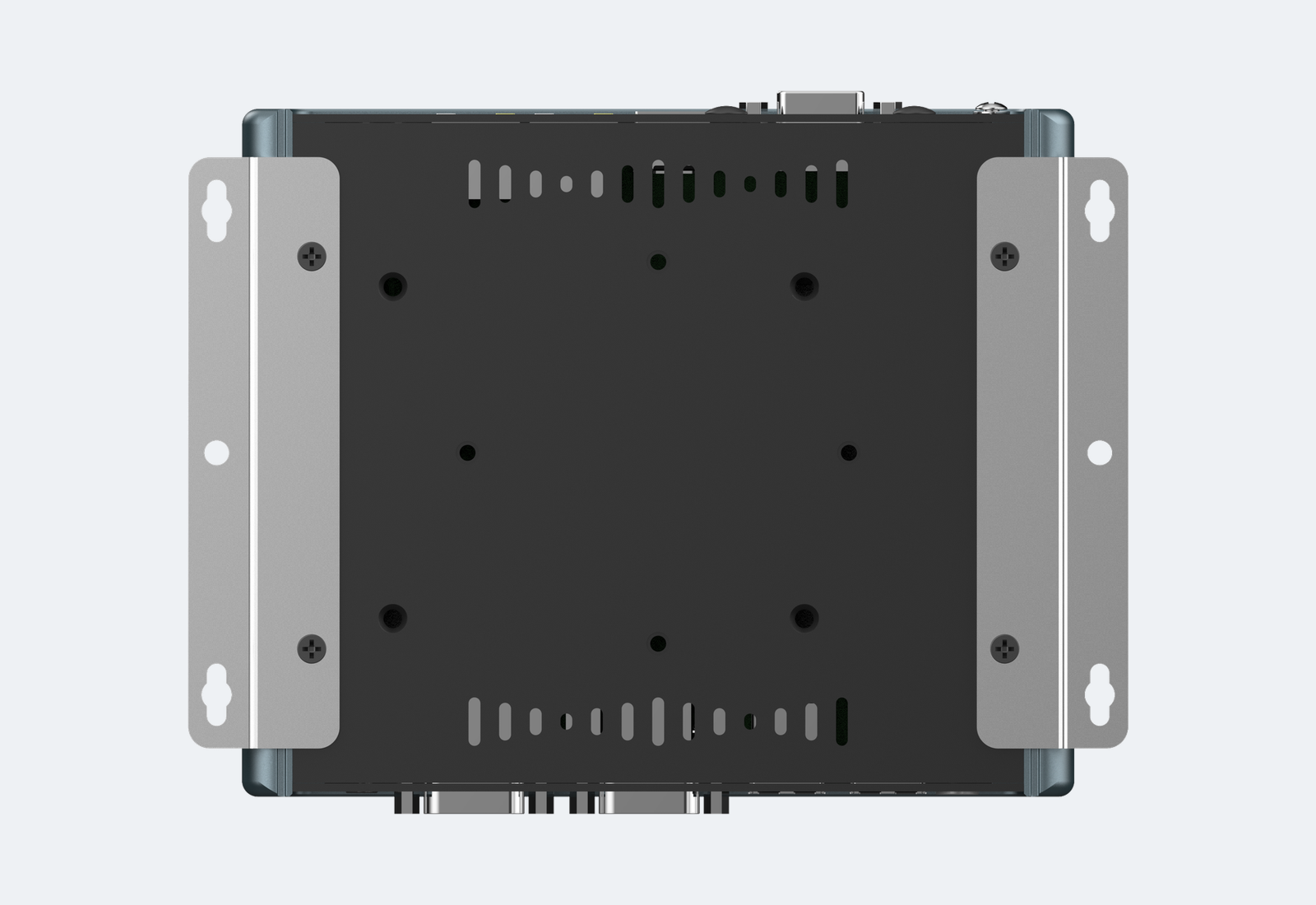

Mounting Embedded installation / Wall-mounted installation

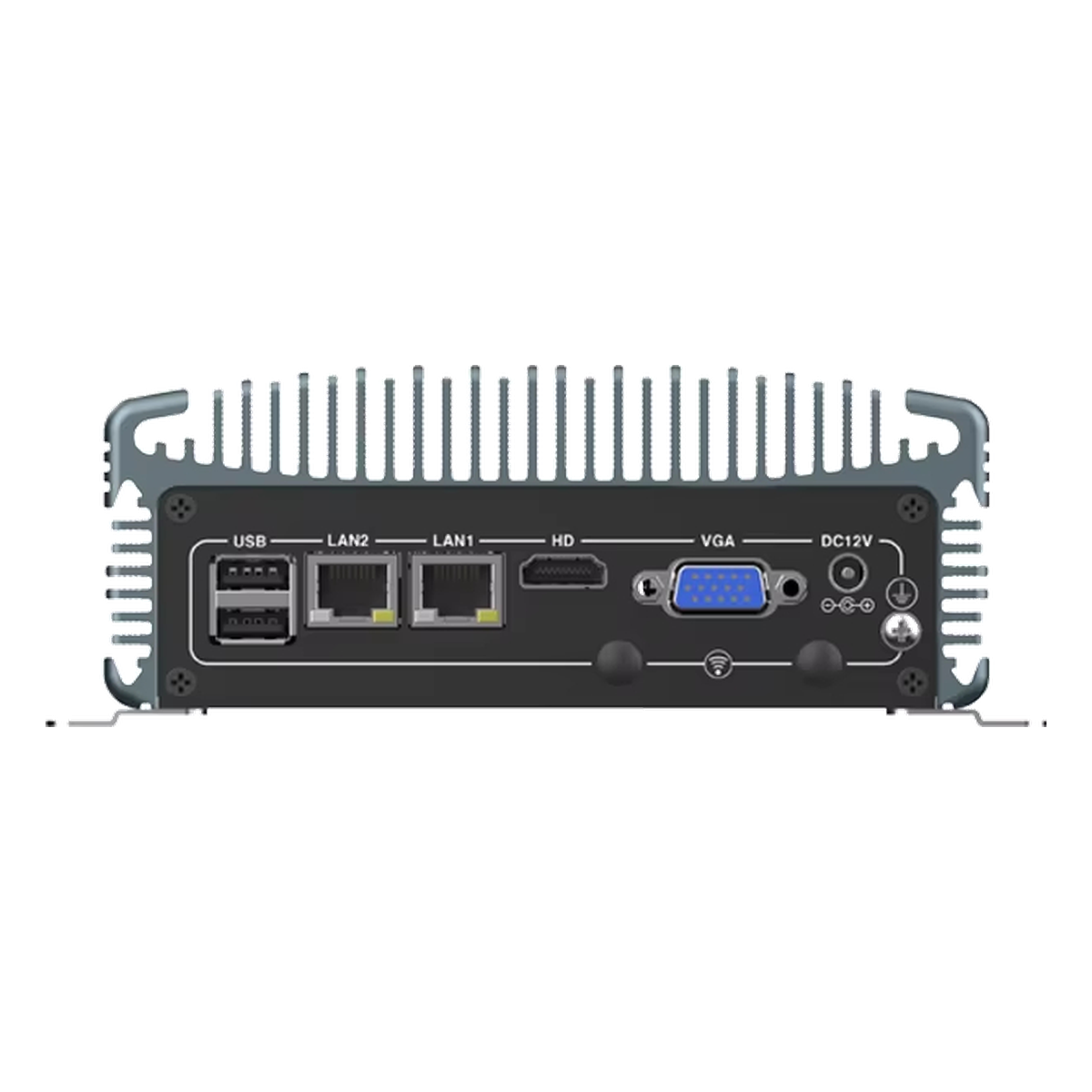

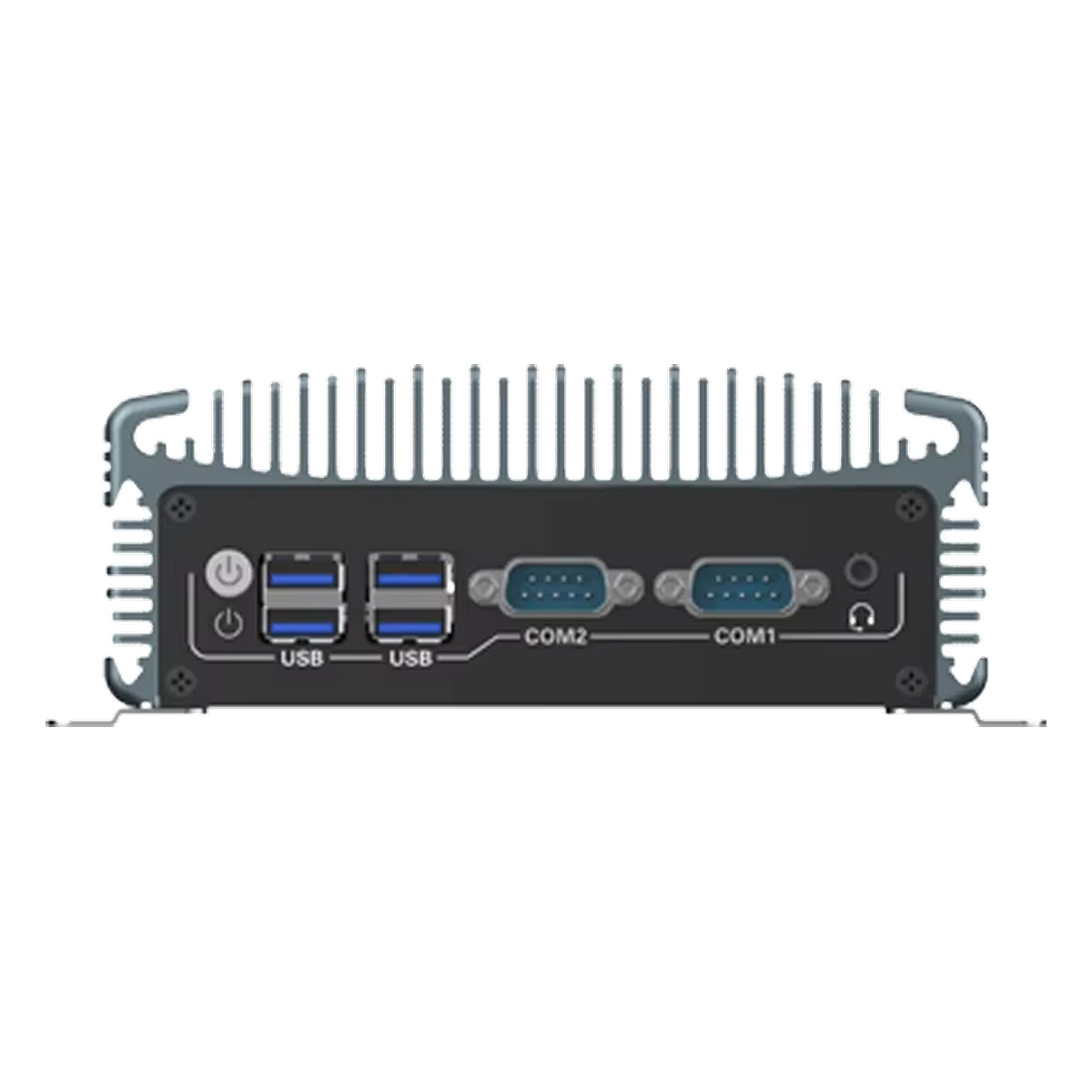

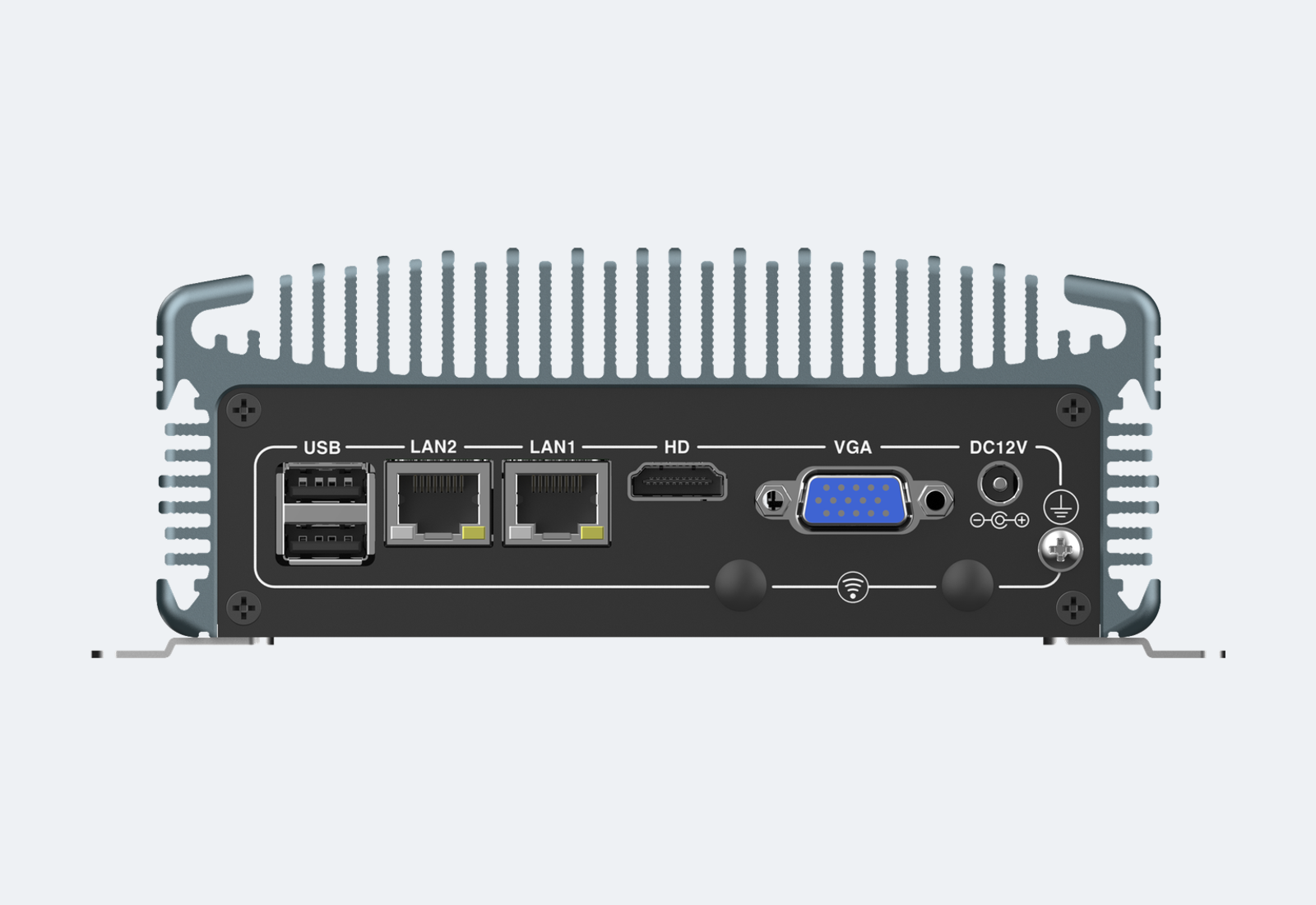

I/O Visual Layout

Connector position overview

Use this visual map to identify connector areas. Detailed electrical and port specifications are kept only in the Full Specification Table.

LAN

Ethernet / network port area

COM

Serial DB9 communication area

USB

USB peripheral connection area

Display

Monitor output position

Power

DC input position

Expansion

Module or expansion slot area

Configuration Options

Project-selectable options

CPU Options

Multiple processor platforms available by project

Memory Options

Capacity and module configuration selectable

Storage Options

SSD capacity and storage type selectable

Power Input Options

Standard or wide-voltage input available by project

Operating System Options

Project configurable

Mounting Options

Mounting kit selected by installation method

Branding / Packaging Options

Custom label, logo, carton and project packaging support

Use Case Fit

Applications this product can support

Application Industrial automation Application Embedded control Application Industrial gateway Application Machine control Application Legacy industrial system upgrade

OEM / ODM Support

Customization support capabilities

Custom labelCustom packagingBIOS / OS image supportProject-based configuration reviewLong lifecycle supply support

Quality & Compliance

Quality & Compliance for Industrial Projects

Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.

CE / FCC / RoHS documentation support100% aging test discussion for batch ordersWide temperature and vibration reviewFanless thermal design validationLong lifecycle supply supportOEM / ODM engineering communication
