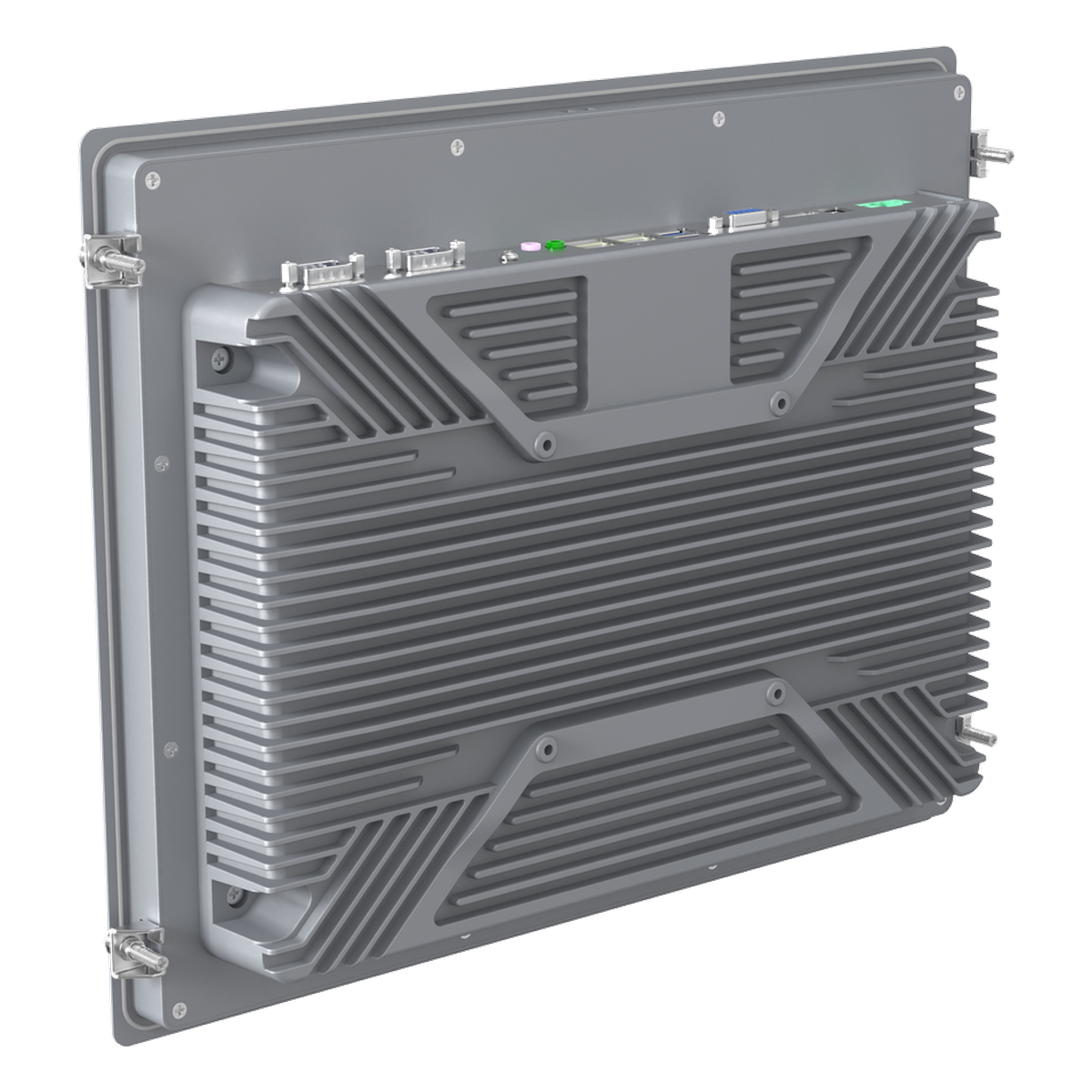

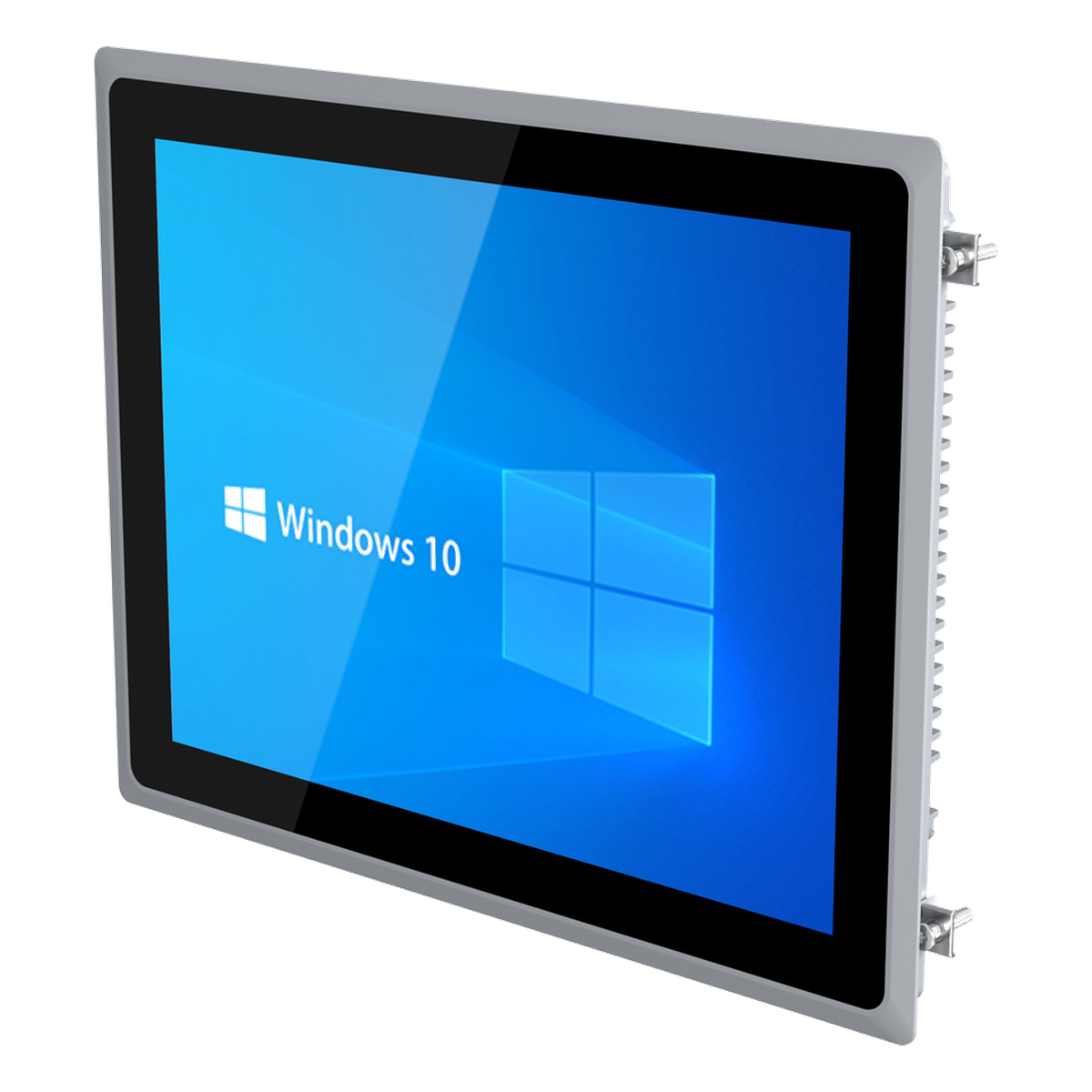

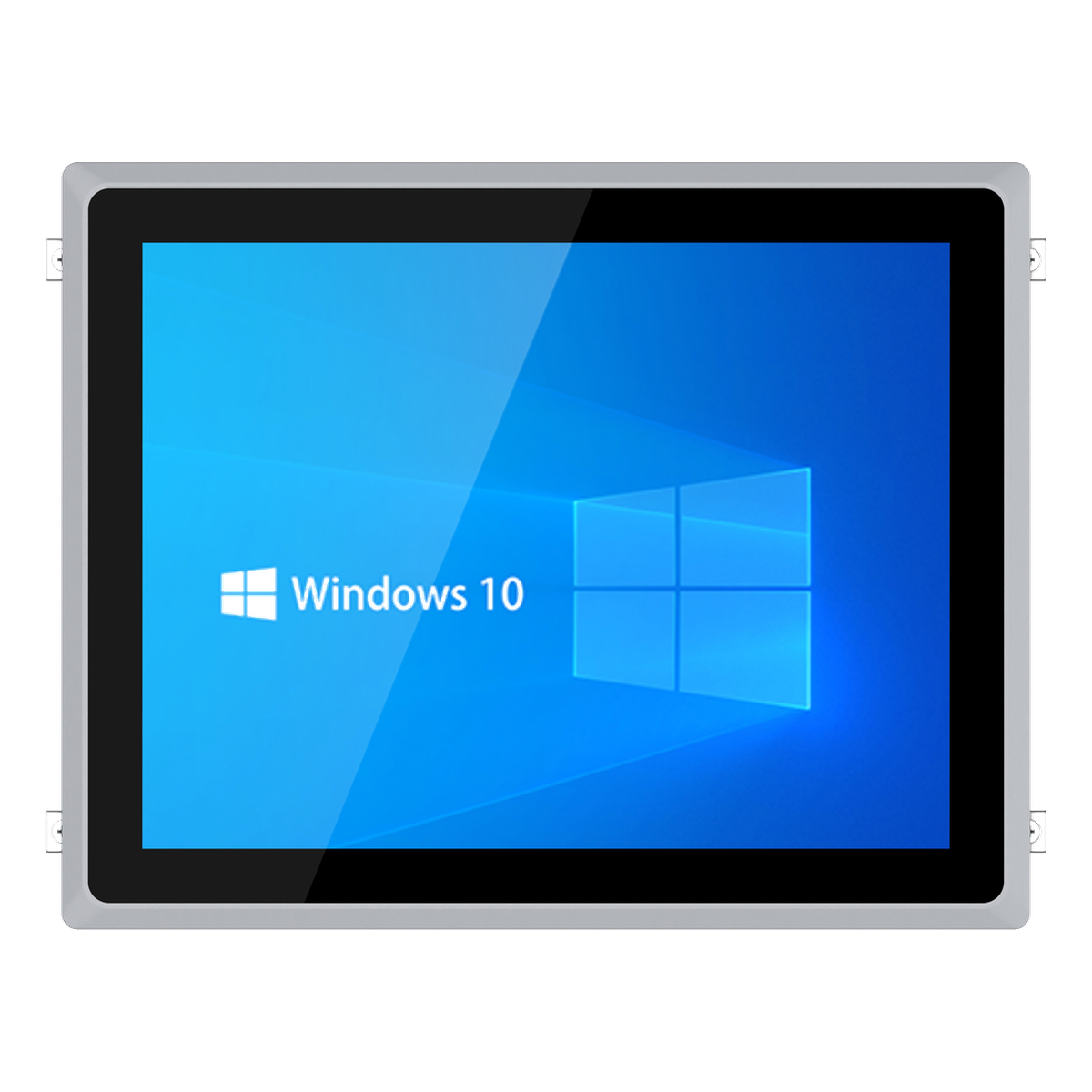

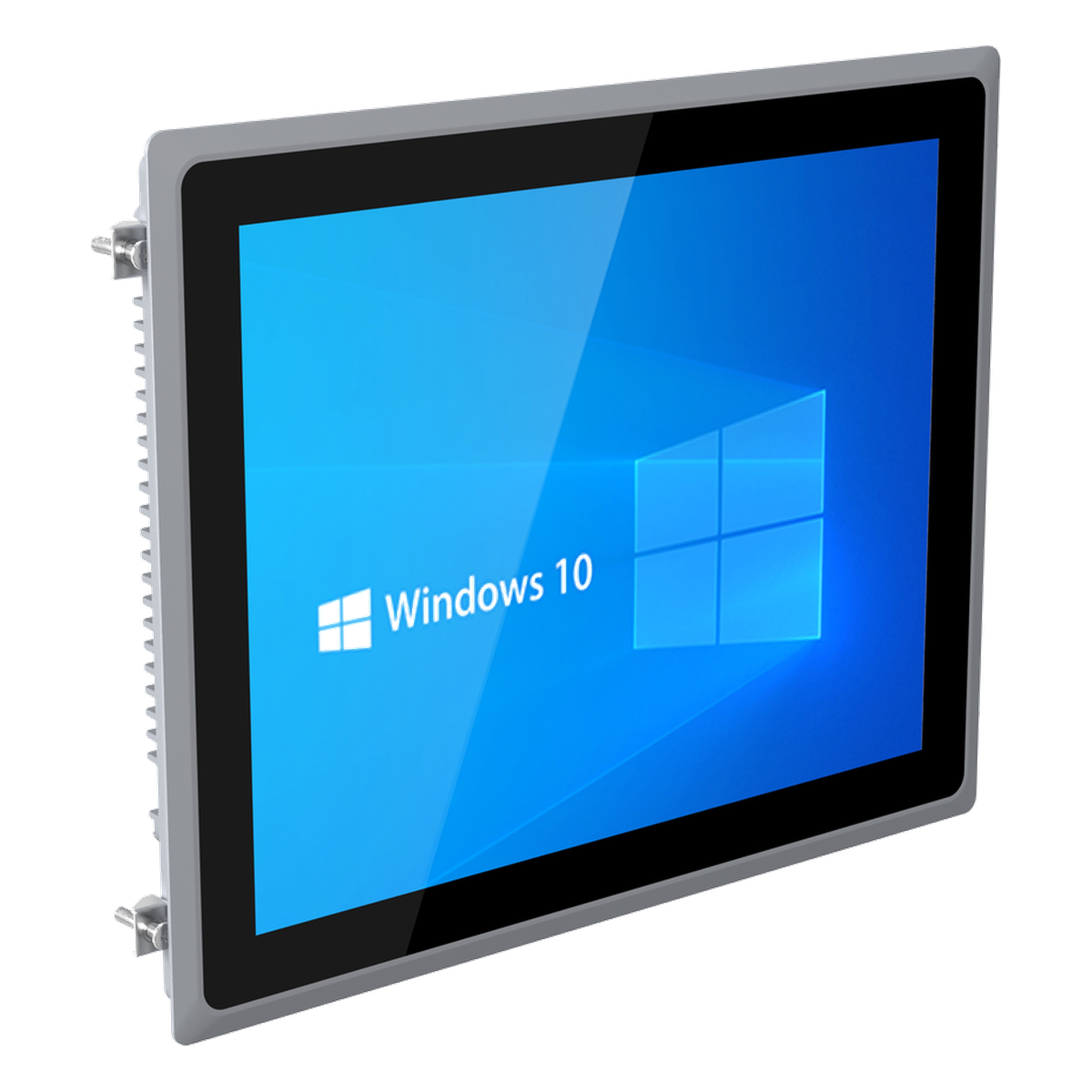

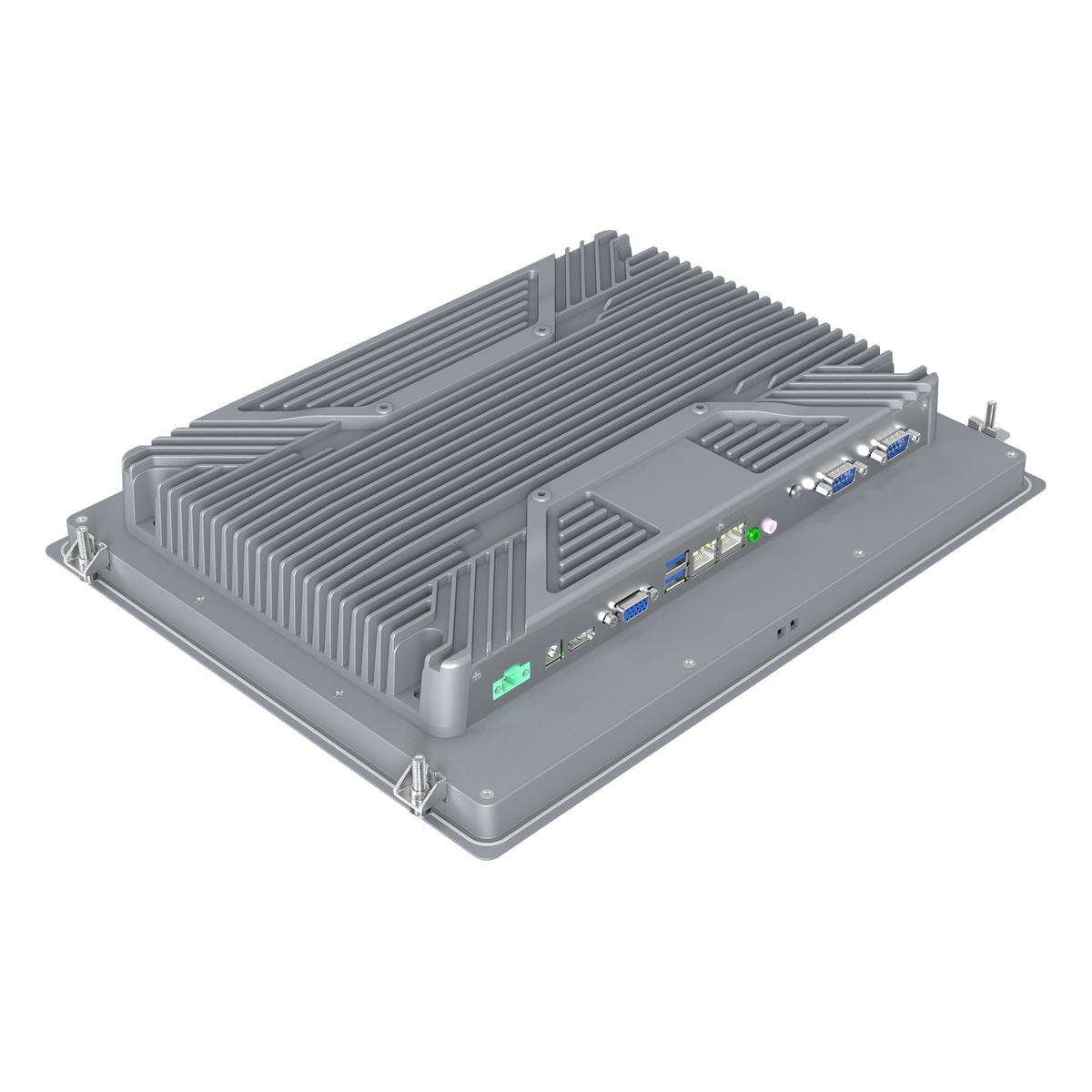

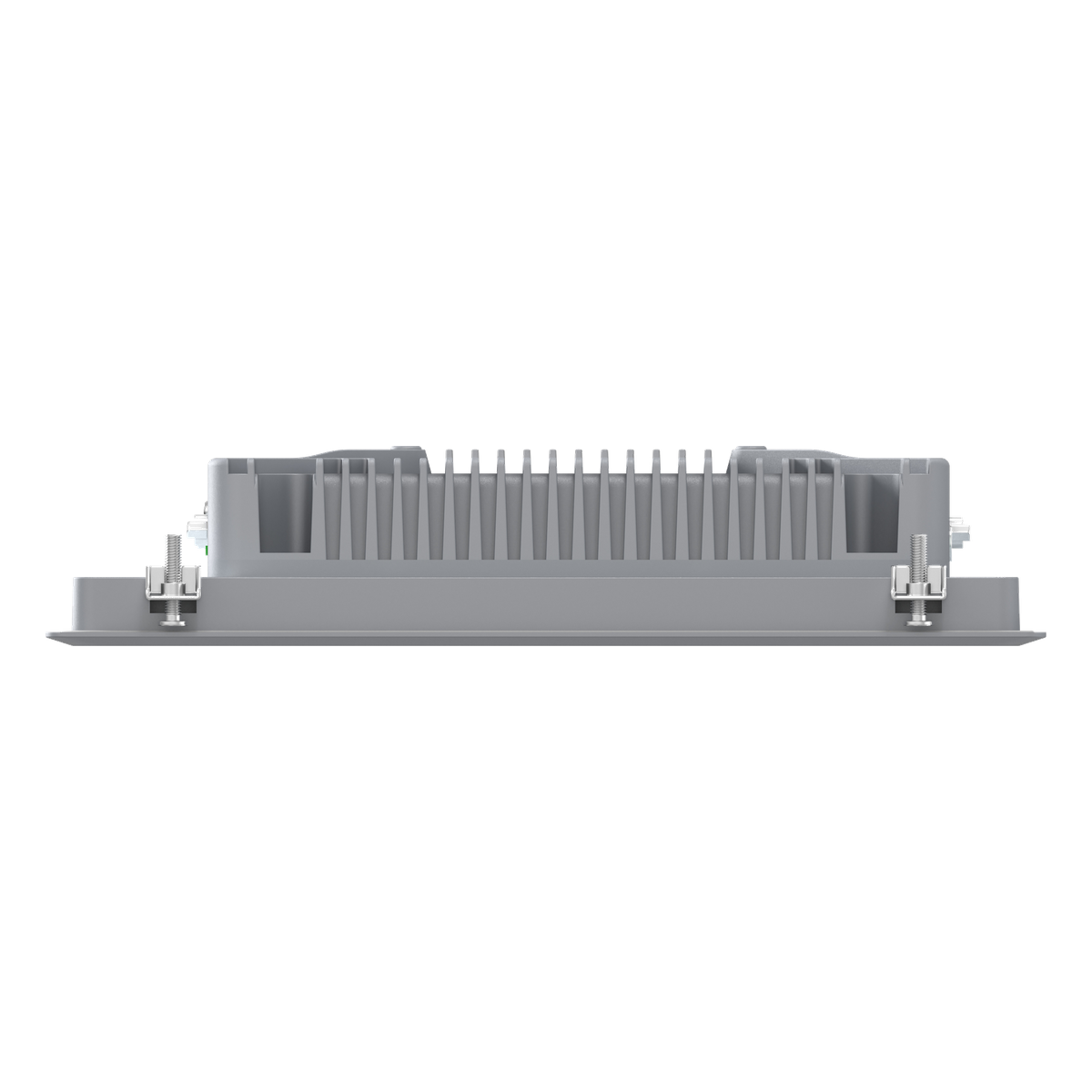

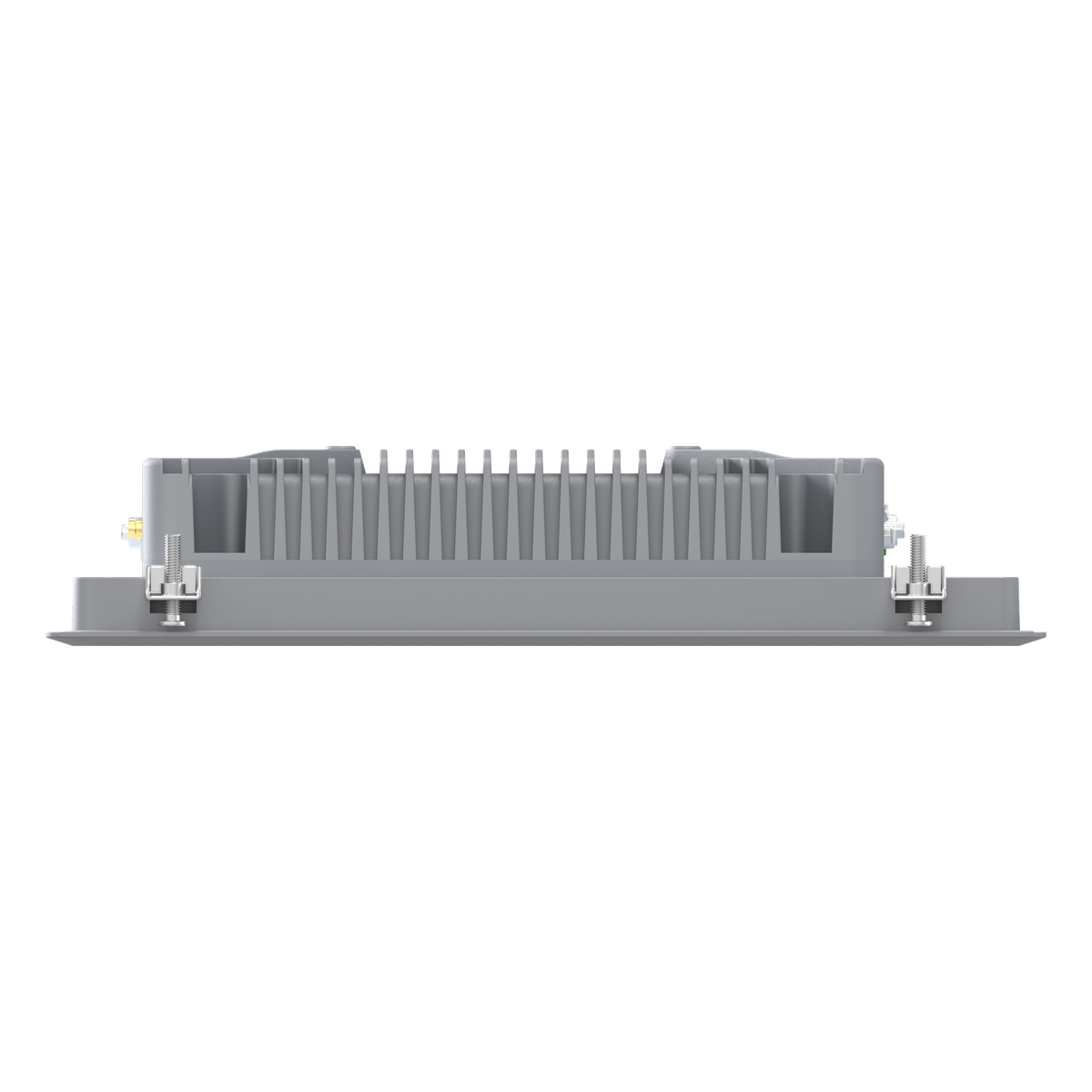

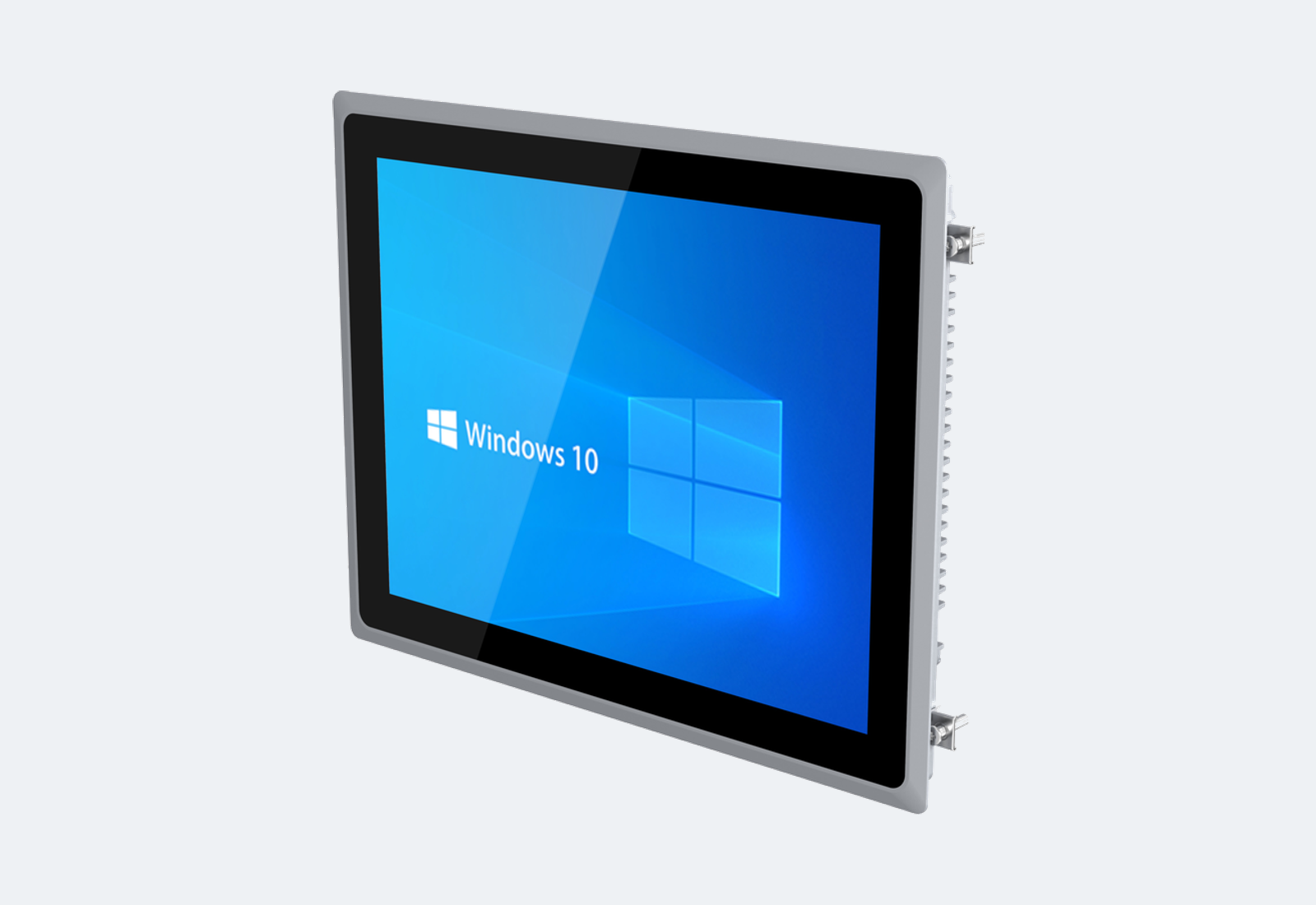

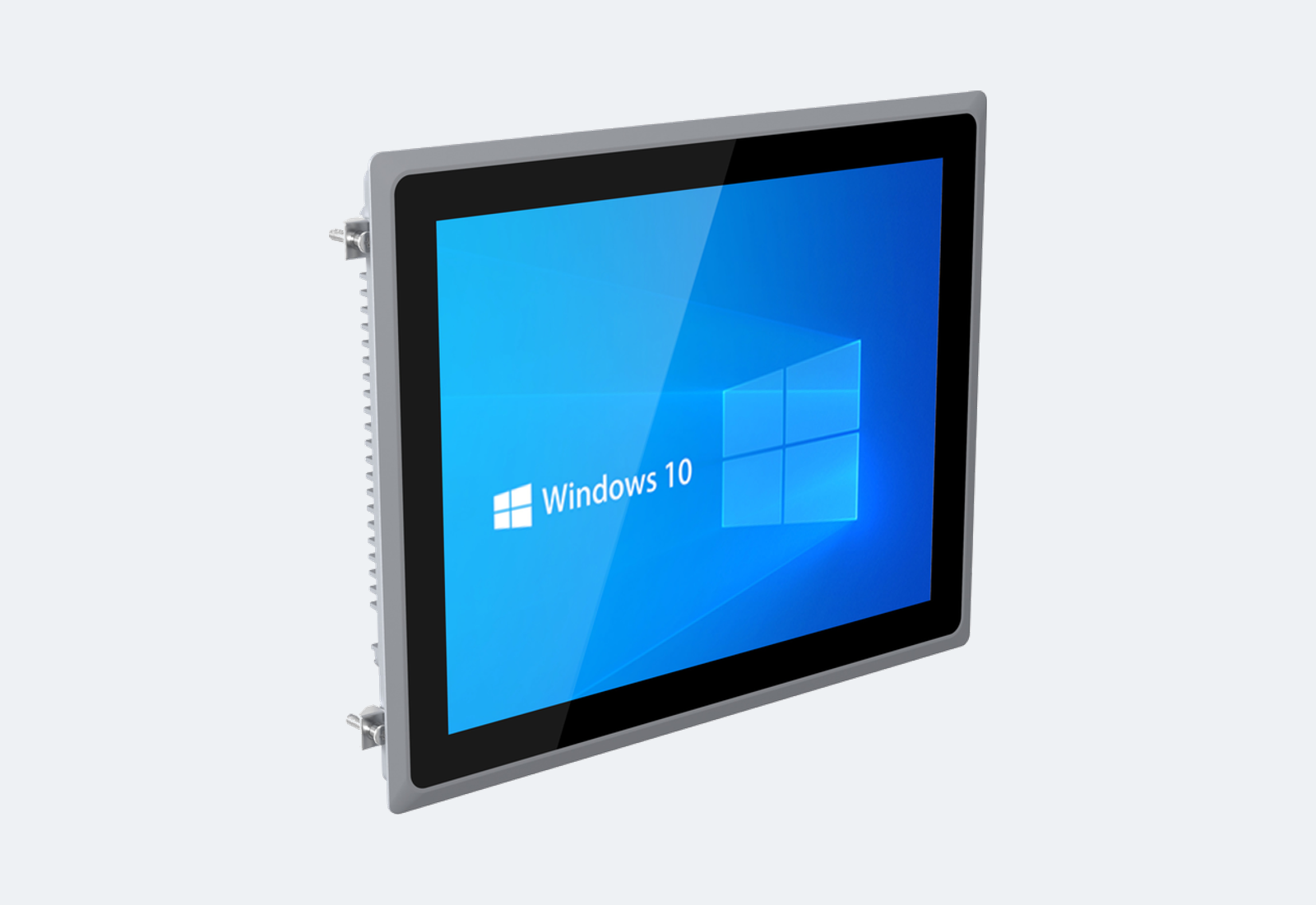

LPC-FR150-W 15-inch Industrial Tablet PC

15-inch industrial tablet PC with 4:3 display, capacitive touch, fanless structure and embedded Intel processor options for industrial automation and control applications.

Suitable applications Machine vision / Highway lane control / Mechanical testing equipment
Key I/O / ports 2 x LAN ports / 2 x COM / 2 x USB3.0
Mounting Embedded / Wall Mount / Desktop Stand
Power input DC12V input, optional 9-36V wide voltage input
OS support Windows 11 / Linux
Customization Custom I/O, BIOS / OS image, logo, packaging and lifecycle support
Request Quote Download Datasheet Send Panel PC Requirements
CPU Intel low-power embedded 6th / 7th / 11th / 12th / 13th generation CPU options
LAN 2 x LAN ports
COM 2 x COM
USB 2 x USB3.0
Display 1 x HDMI
Power DC12V input

Engineering Data

Full Specification Table

This table is the single authoritative area for complete product parameters.

Processor Intel low-power embedded 6th / 7th / 11th / 12th / 13th generation CPU options
Chipset Intel embedded platform
Memory 4GB / 8GB / 16GB, configuration subject to actual model
Storage 2.5-inch hard disk or M.2 Key-M hard disk installation

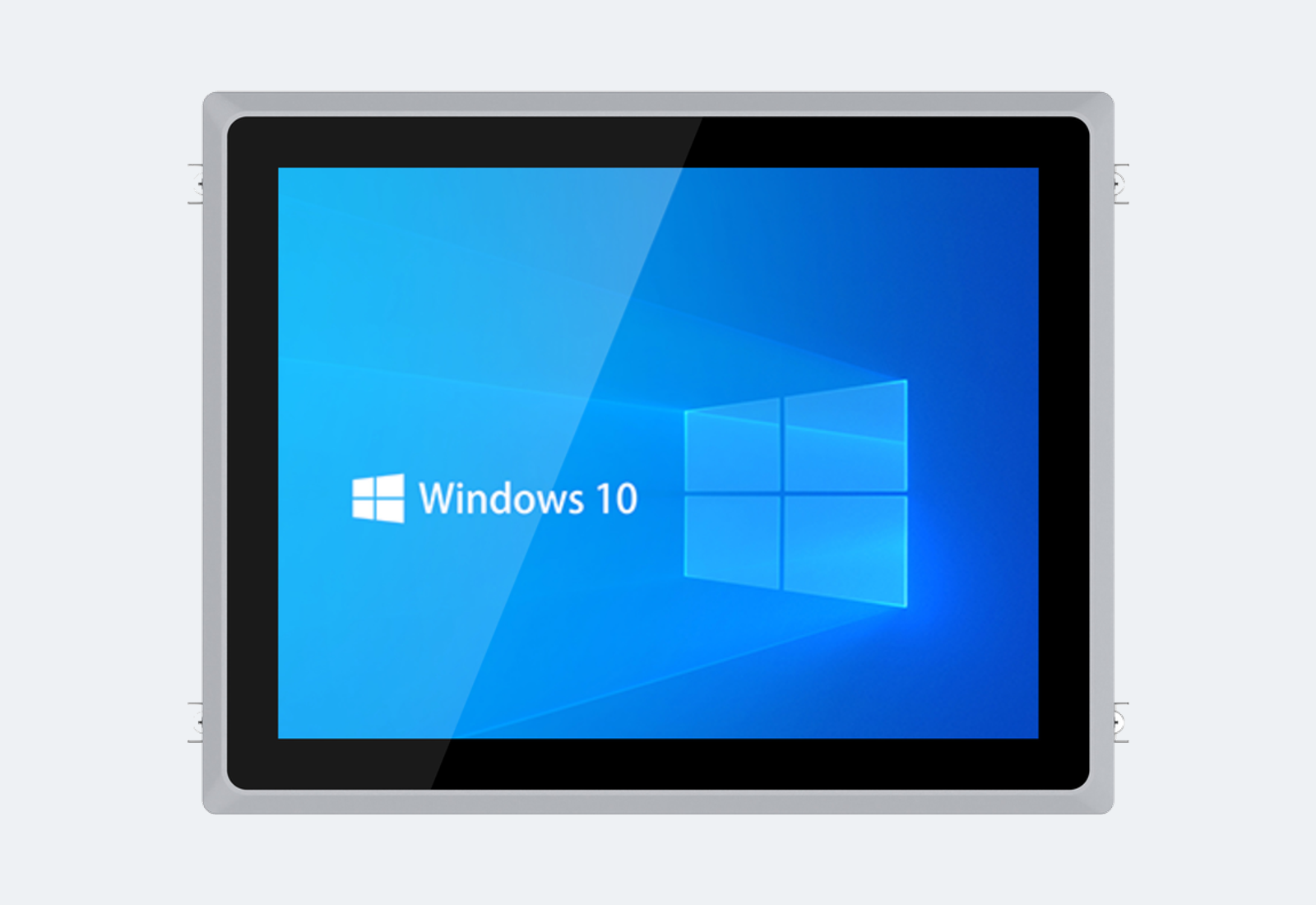

Screen Size 15 inch
Resolution 1024 x 768
Touch Type Capacitive G+G 10-point touch; optional resistive touch
LAN 2 x LAN ports
COM 2 x COM
USB 2 x USB3.0
Audio Line-Audio
Display Output 1 x HDMI
Power Input DC12V input, optional 9-36V wide voltage input
Operating Temperature -10°C to 60°C
Storage Temperature -40°C to 80°C
Humidity 10% - 95% @ 40°C, non-condensing

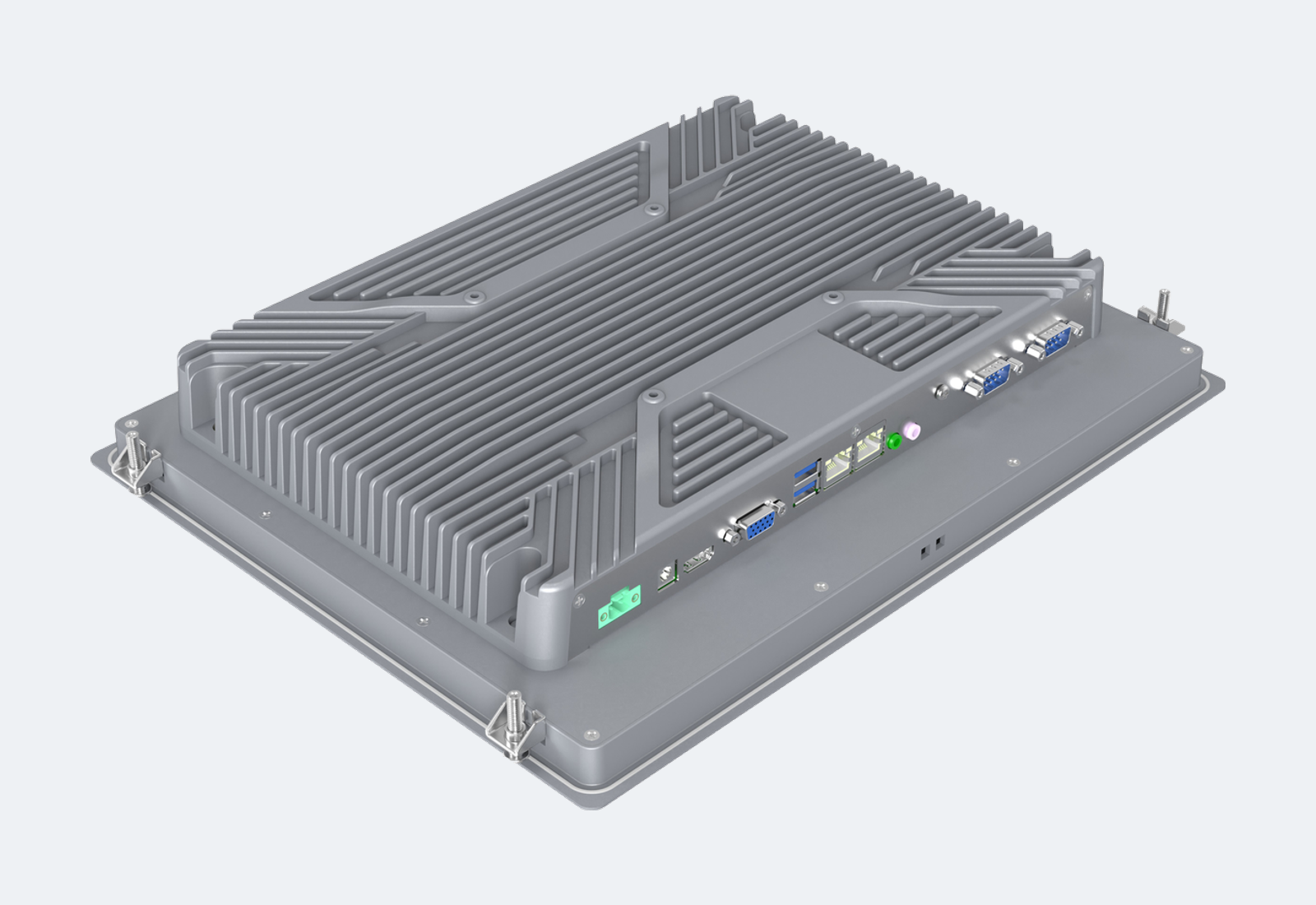

Material Industrial aluminum alloy structure

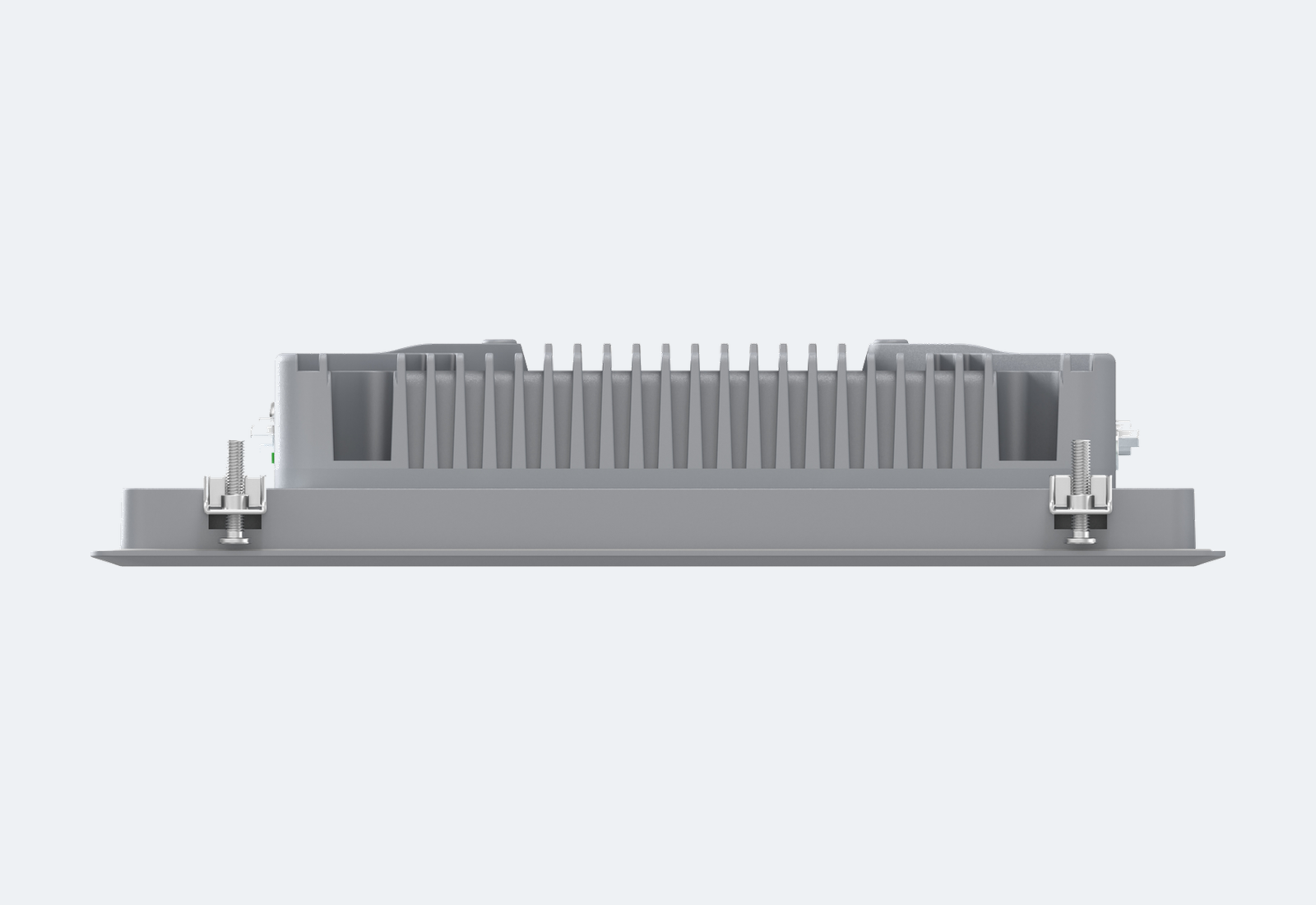

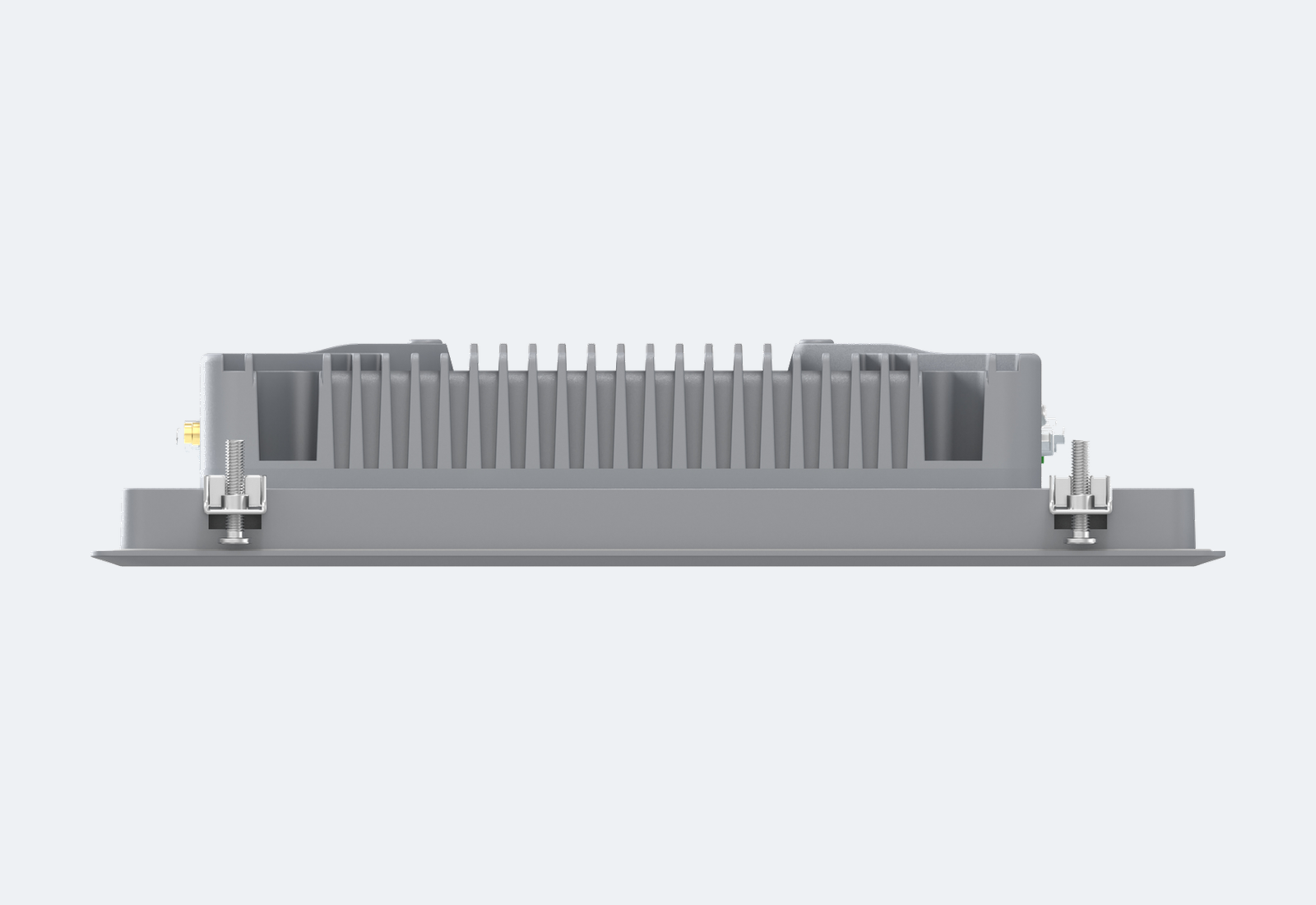

Thermal Design Fanless passive heat dissipation
Mounting Embedded / Wall Mount / Desktop Stand
Weight Net 5kg / Gross 5.5kg
Operating System Windows 11 / Linux

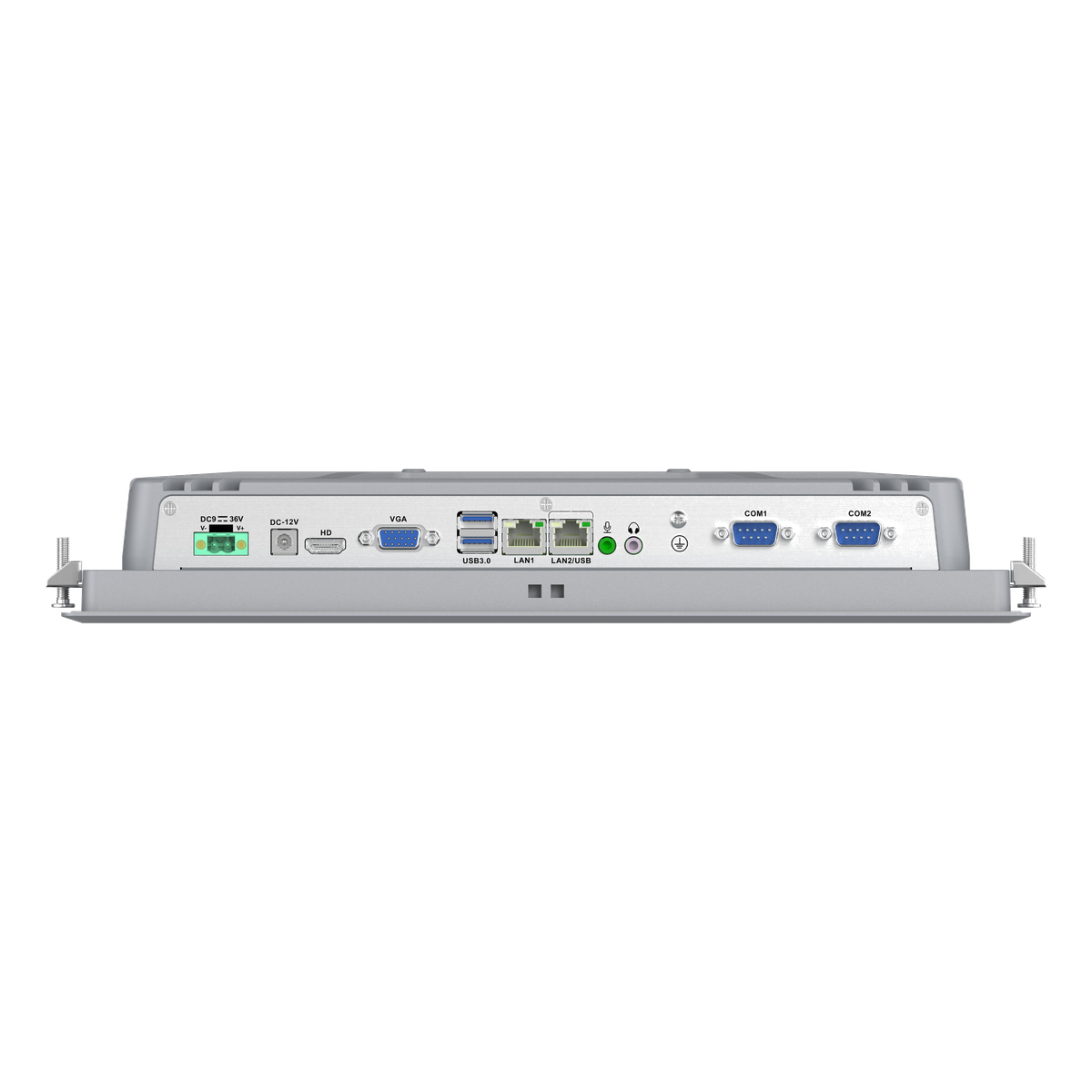

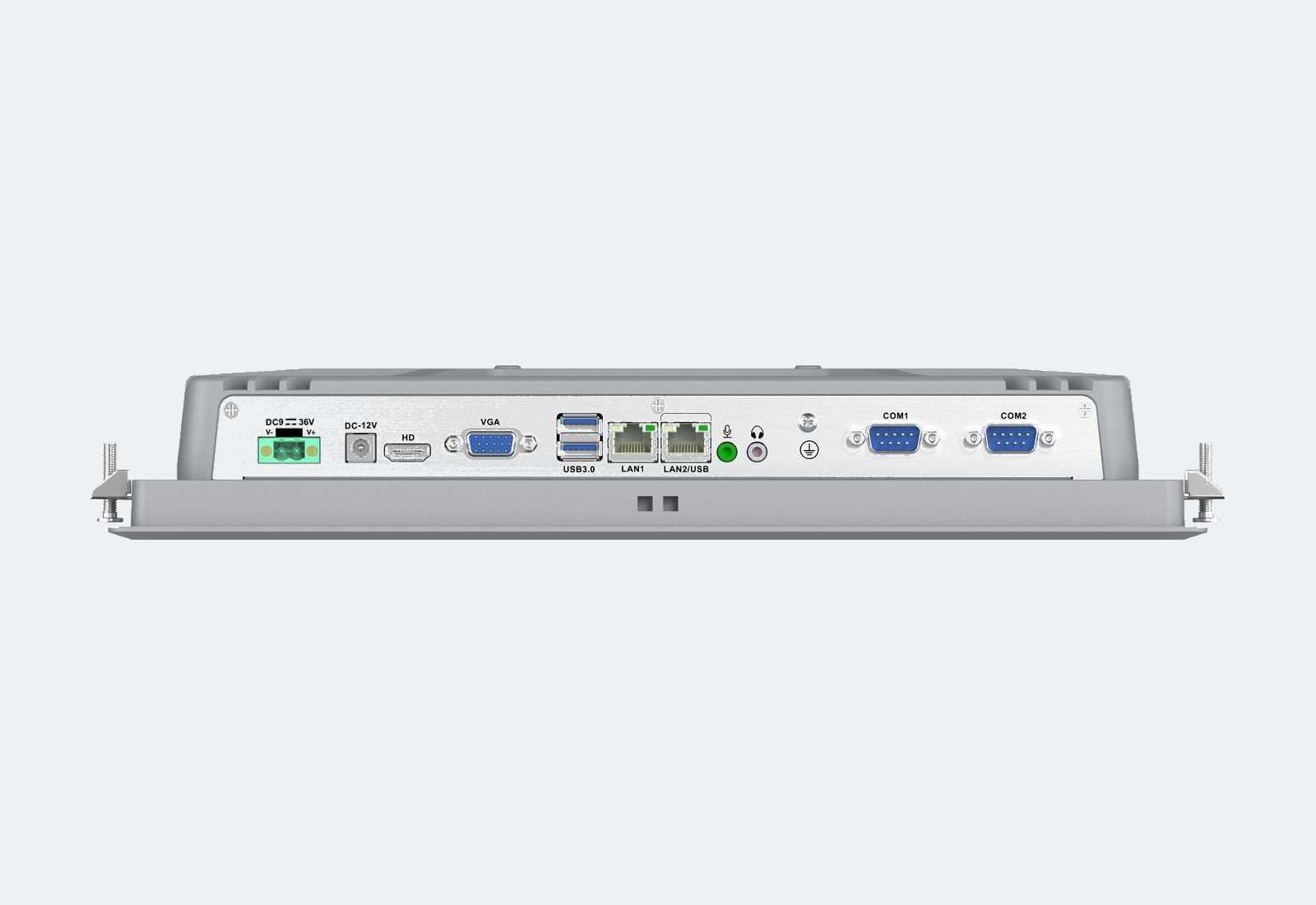

I/O Visual Layout

Connector position overview

Use this visual map to identify connector areas. Detailed electrical and port specifications are kept only in the Full Specification Table.

LAN

Ethernet / network port area

COM

Serial DB9 communication area

USB

USB peripheral connection area

Display

Monitor output position

Power

DC input position

Configuration Options

Project-selectable options

CPU Options

LPC-FR150-W-O-N5095 / LPC-FR150-W-O-J6412 / LPC-FR150-W-O-6500U / LPC-FR150-W-O-7200U / LPC-FR150-W-O-1235U / LPC-FR150-W-O-1335U

Memory Options

Capacity and module configuration selectable

Storage Options

SSD capacity and storage type selectable

Power Input Options

Standard or wide-voltage input available by project

Operating System Options

Windows / Linux image and driver support

Mounting Options

Mounting kit selected by installation method

Branding / Packaging Options

Custom label, logo, carton and project packaging support

Use Case Fit

Applications this product can support

Application Machine vision Application Highway lane control Application Mechanical testing equipment Application Intelligent transportation Application Smart factory Application Power control Application CNC equipment Application Industrial automation

OEM / ODM Support

Customization support capabilities

Custom labelCustom packagingBIOS / OS image supportProject-based configuration reviewLong lifecycle supply support

Quality & Compliance

Quality & Compliance for Industrial Projects

Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.

CE / FCC / RoHS documentation support100% aging test discussion for batch ordersWide temperature and vibration reviewFanless thermal design validationLong lifecycle supply supportOEM / ODM engineering communication
