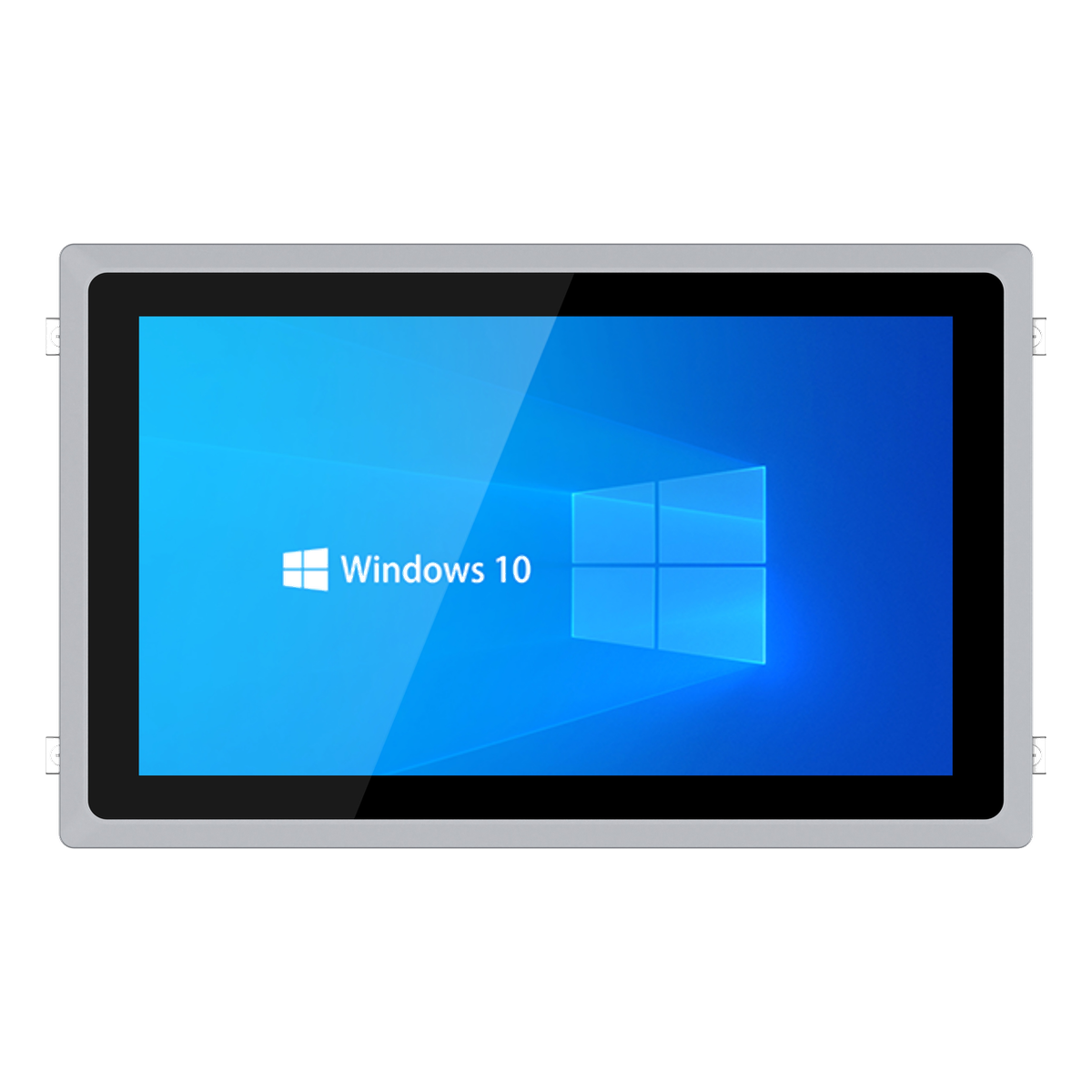

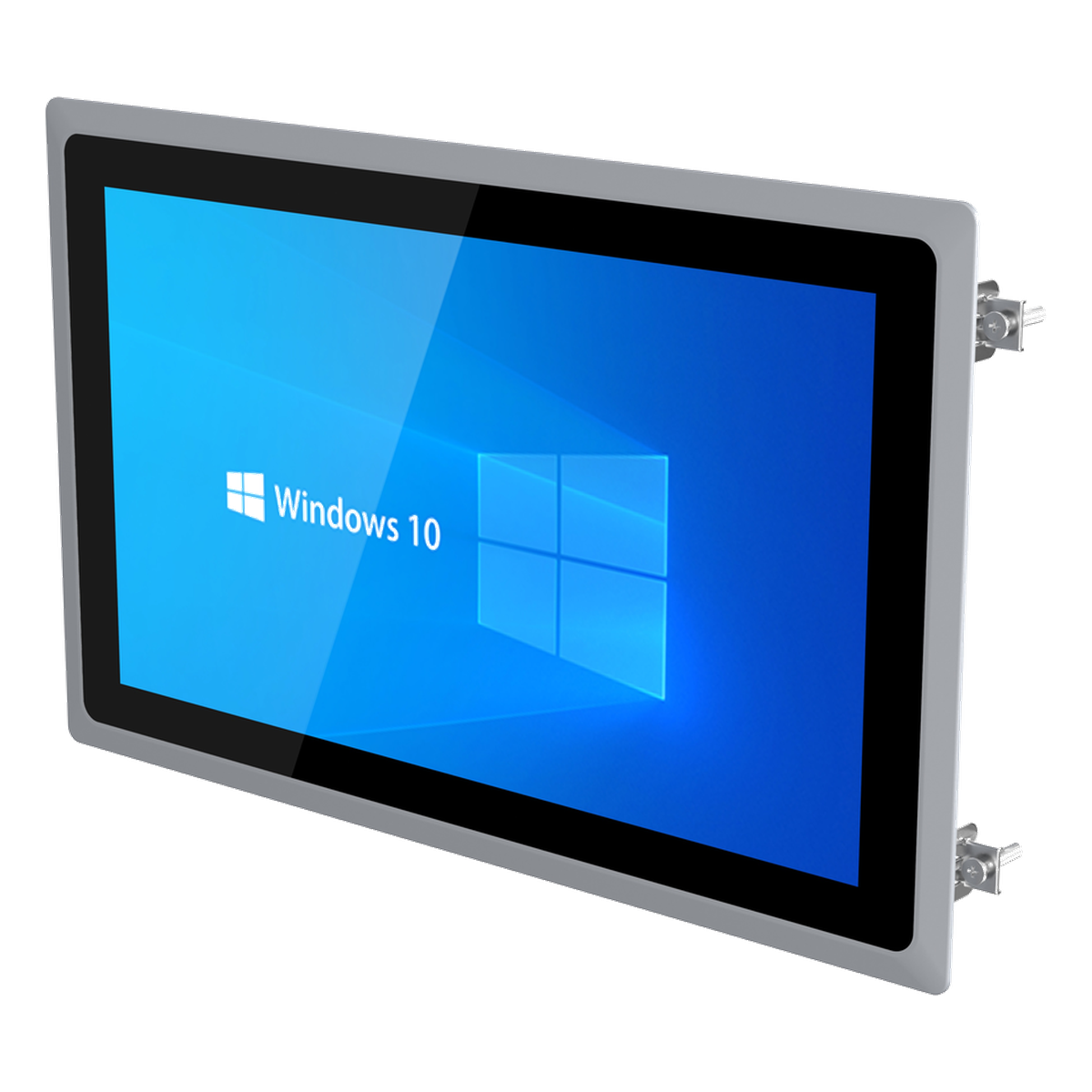

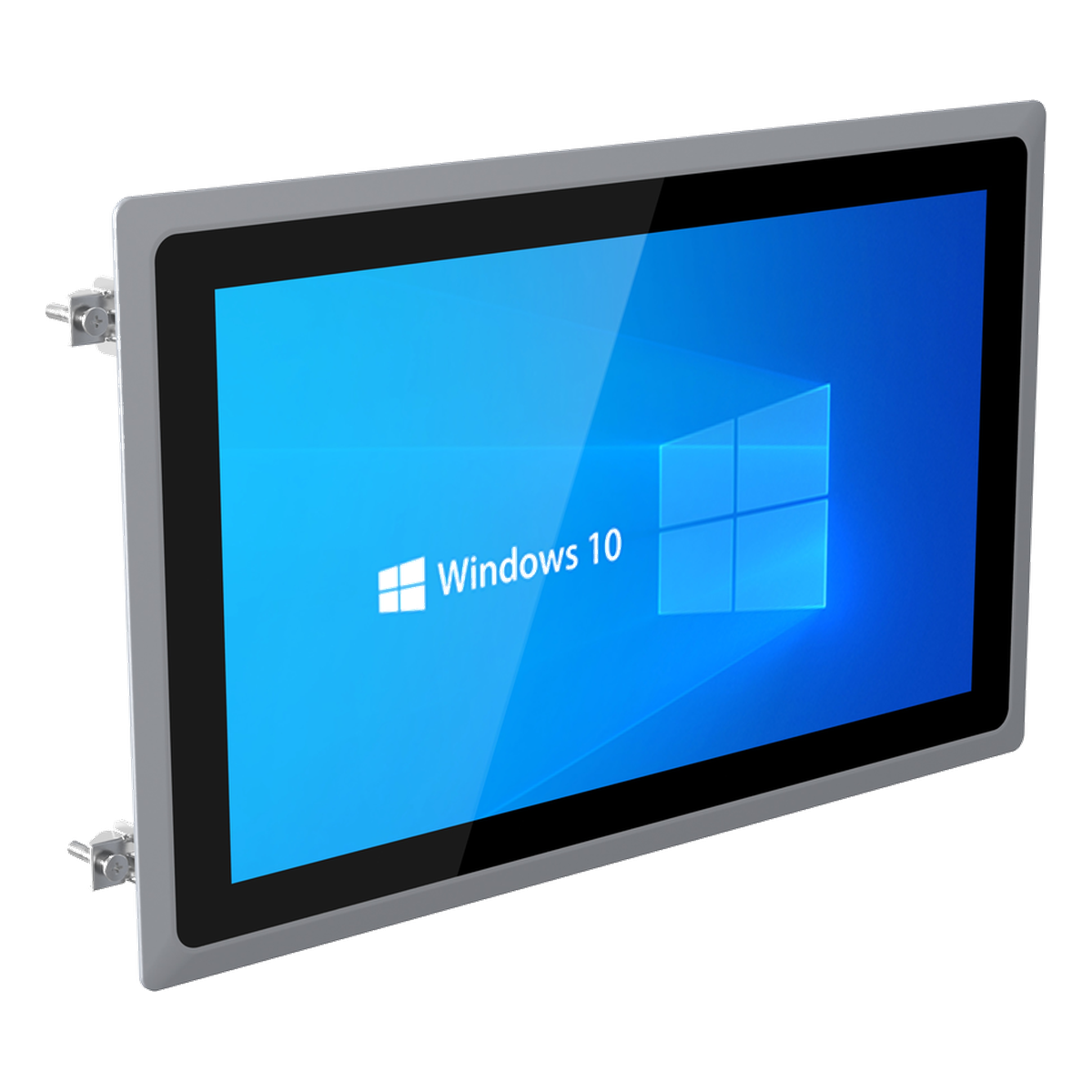

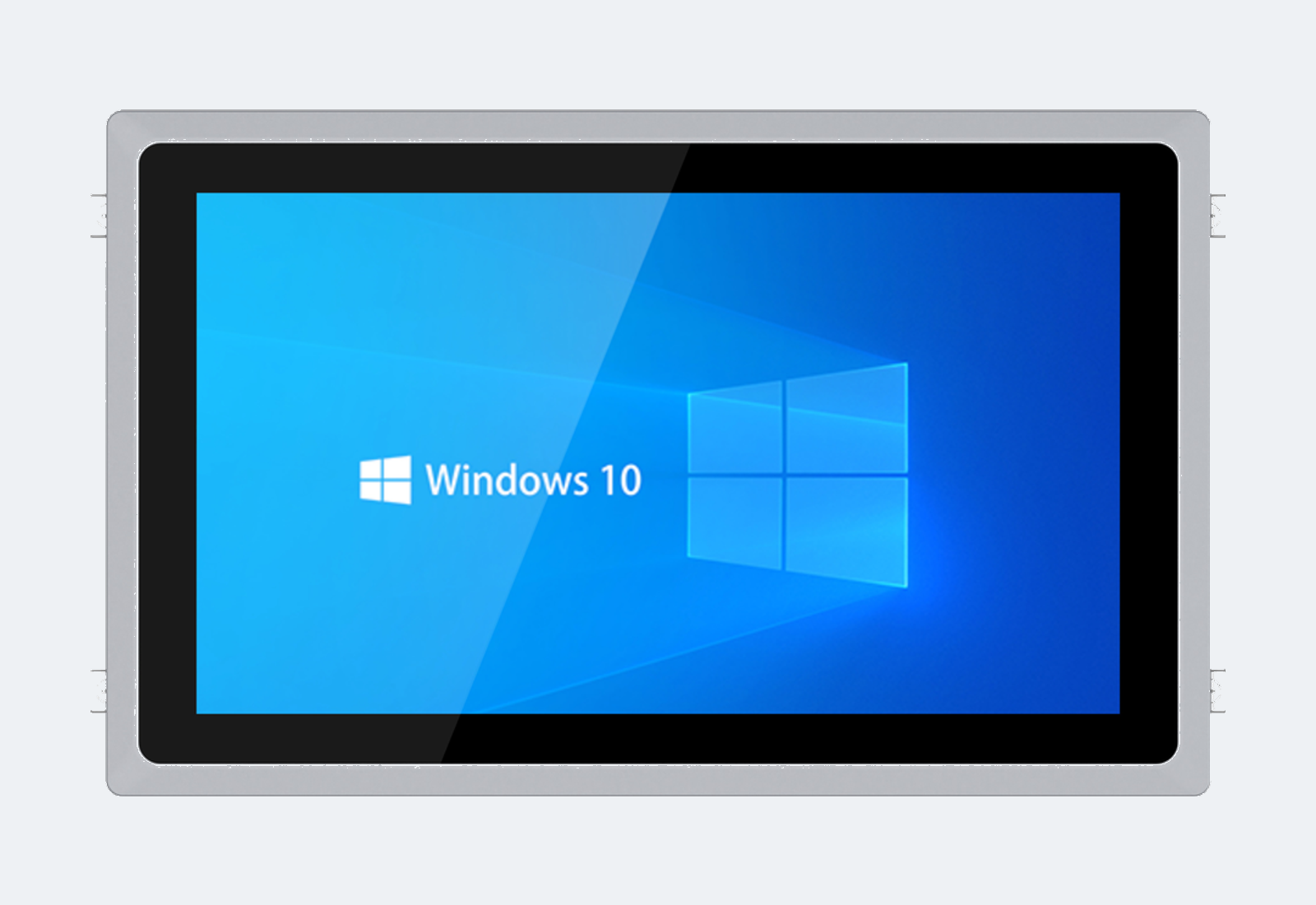

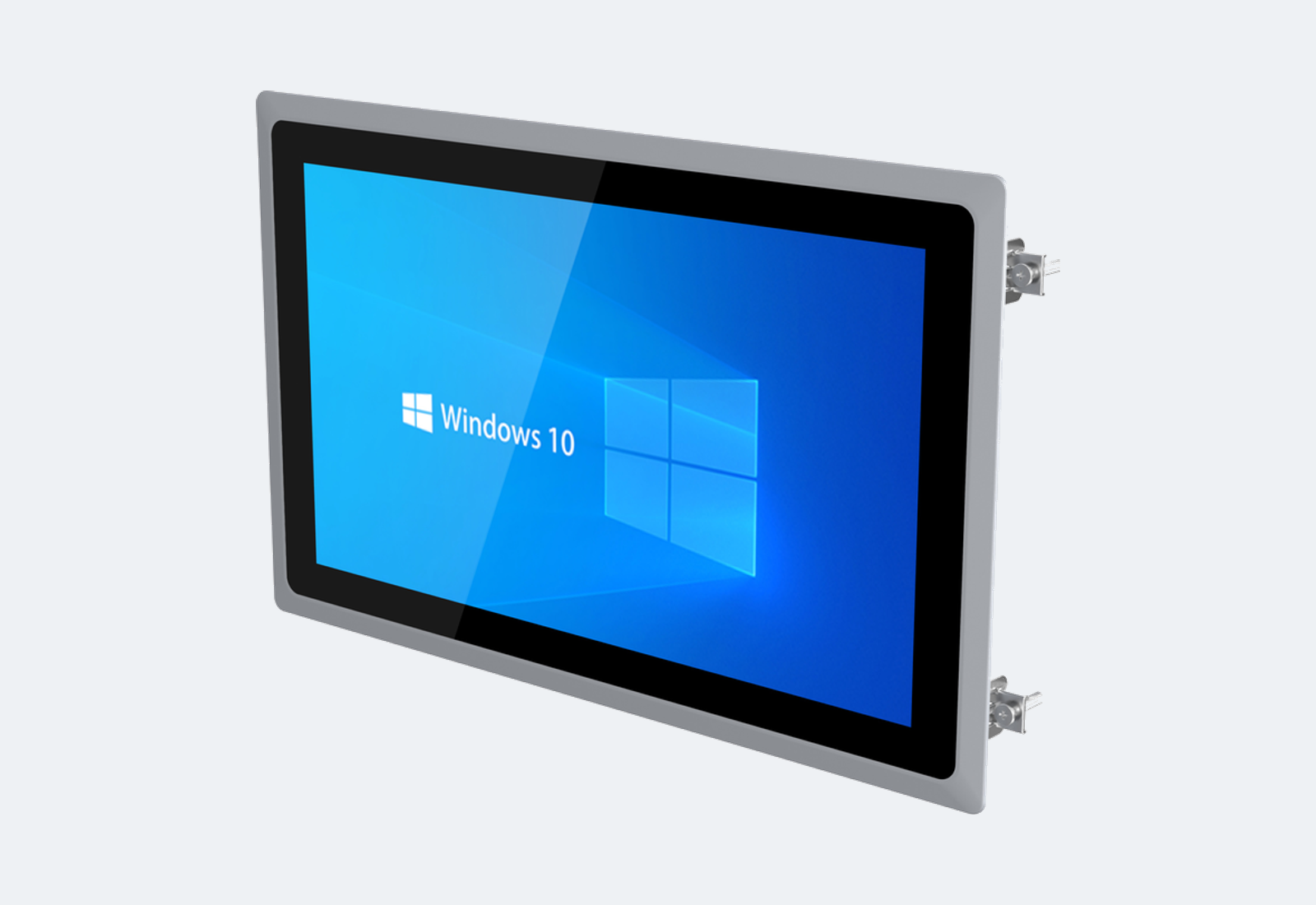

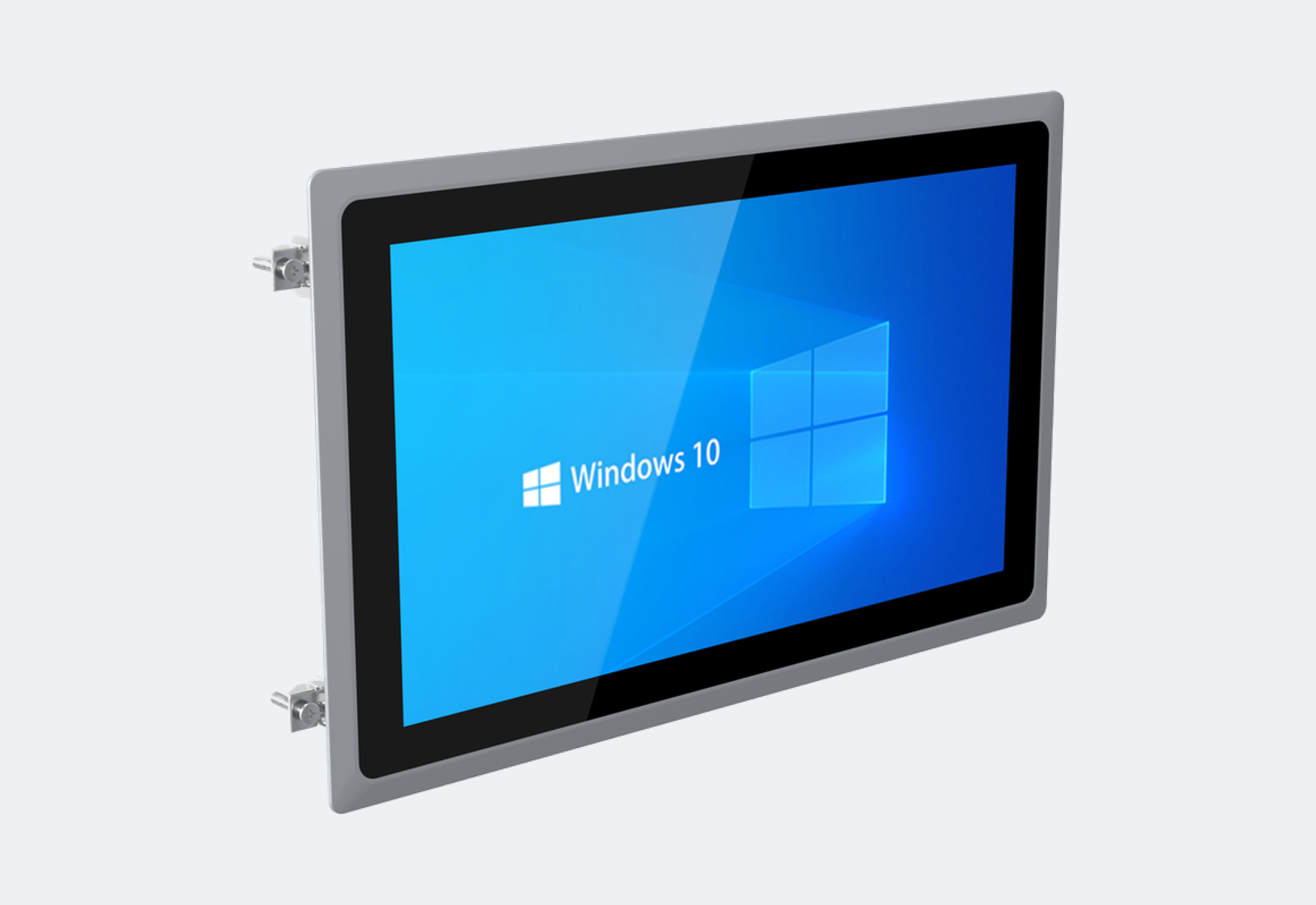

LPC-KR156-W 15.6-inch Industrial Panel PC
15.6-inch widescreen industrial panel PC with aluminum alloy enclosure, capacitive touch, fanless design and embedded Intel processor platform options.
Engineering Data
Full Specification Table
This table is the single authoritative area for complete product parameters.
| Processor | Intel low-power embedded 6th / 7th / 11th / 12th / 13th generation CPU options |
|---|---|
| Chipset | Intel embedded 6th / 7th / 11th / 12th / 13th generation SOC |
| Memory | 4GB / 8GB / 16GB, configuration subject to actual model |
| Storage | 1 x M.2 M Key 2280 NVMe PCIe x4 / SATA SSD adaptive slot, or 1 x 2.5-inch hard disk position |
| Screen Size | 15.6 inch |
| Resolution | 1920 x 1080 |
| Brightness | 300 cd/m² optional |
| Touch Type | Capacitive G+G 10-point touch; optional resistive touch |
| LAN | 2 x Gigabit LAN |
| COM | 2 x COM standard, optional 6COM |
| USB | 2 x USB3.0 |
| Audio | 1 x 2-in-1 audio interface |
| Display Output | 1 x HDMI |
| Expansion | 1 x M.2 Key-E 2230 for WiFi + Bluetooth module; optional GPIO 10PIN |
| Power Input | DC12V input, optional 9-36V wide voltage input |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Humidity | 10% - 95% @ 40°C, non-condensing |
| Dimensions | TBD, bare metal |
| Material | High-quality aluminum alloy + steel plate |

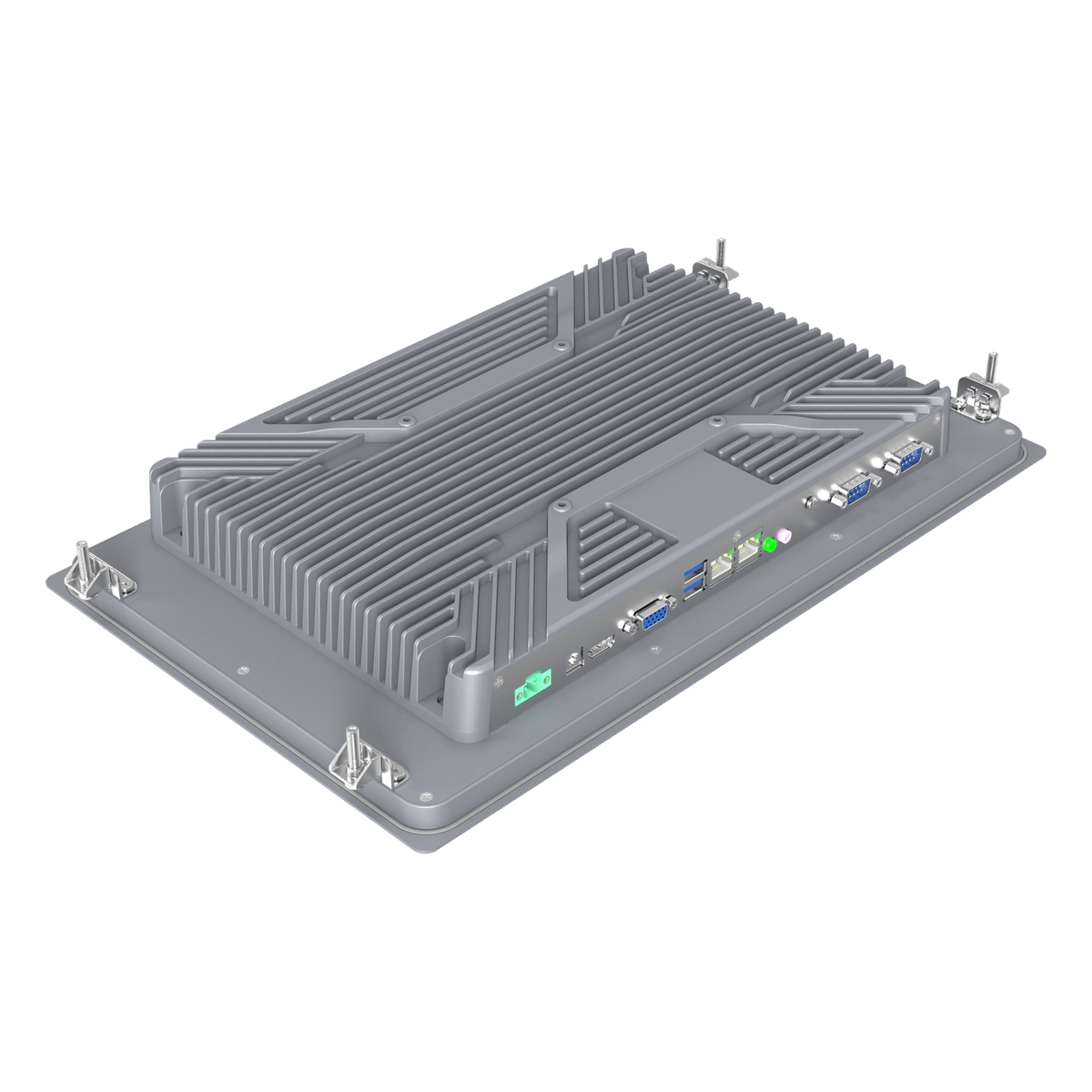

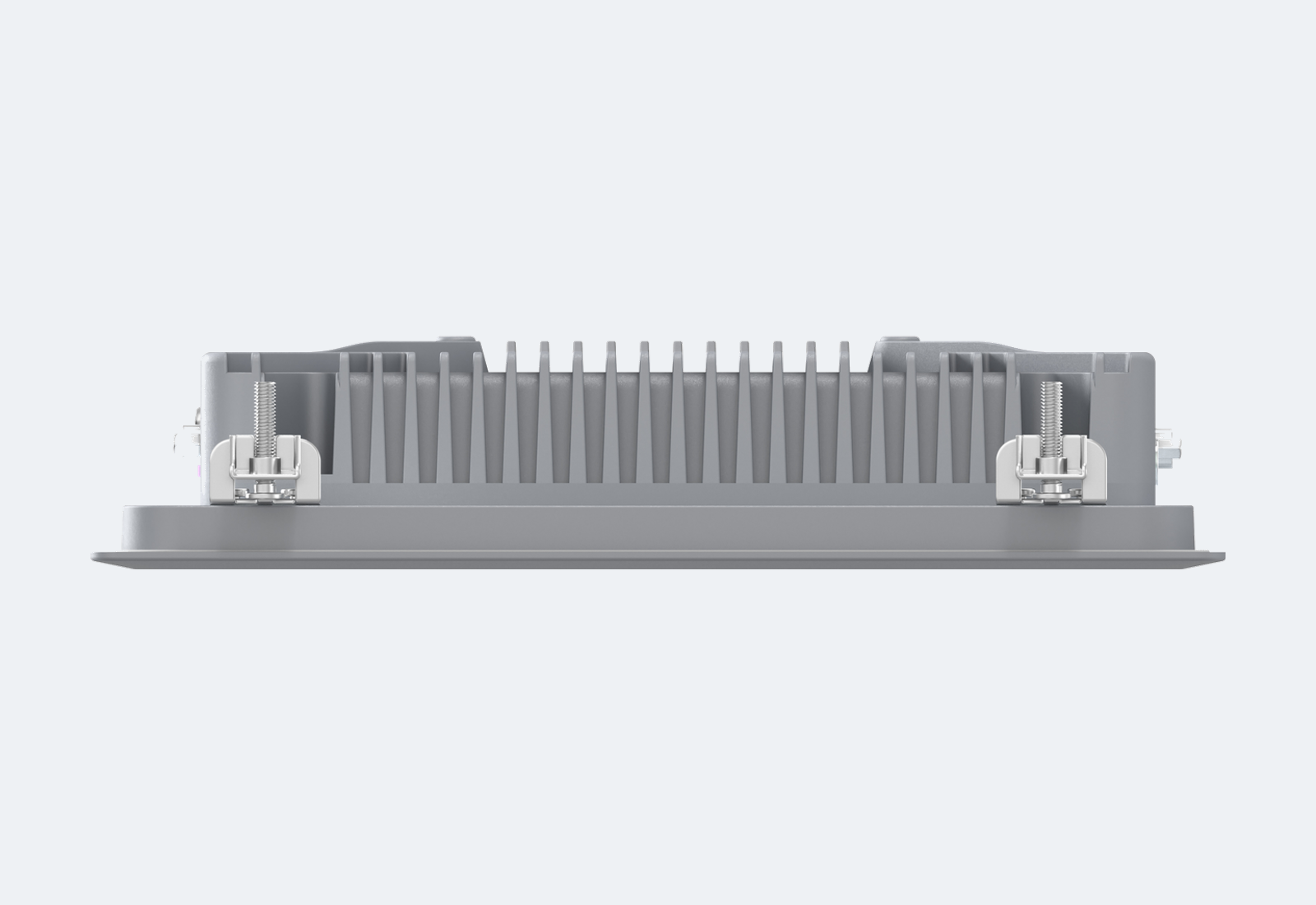

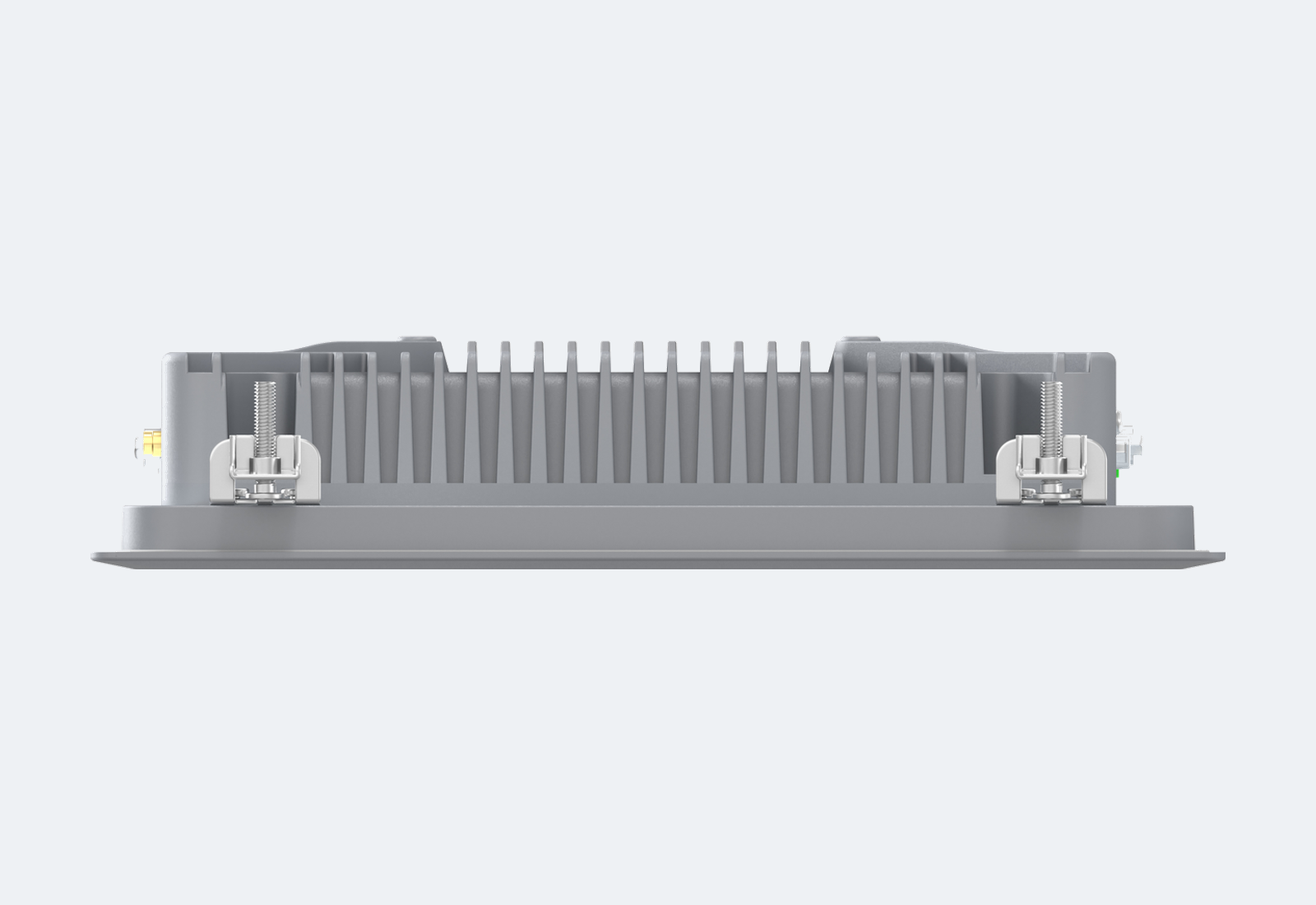

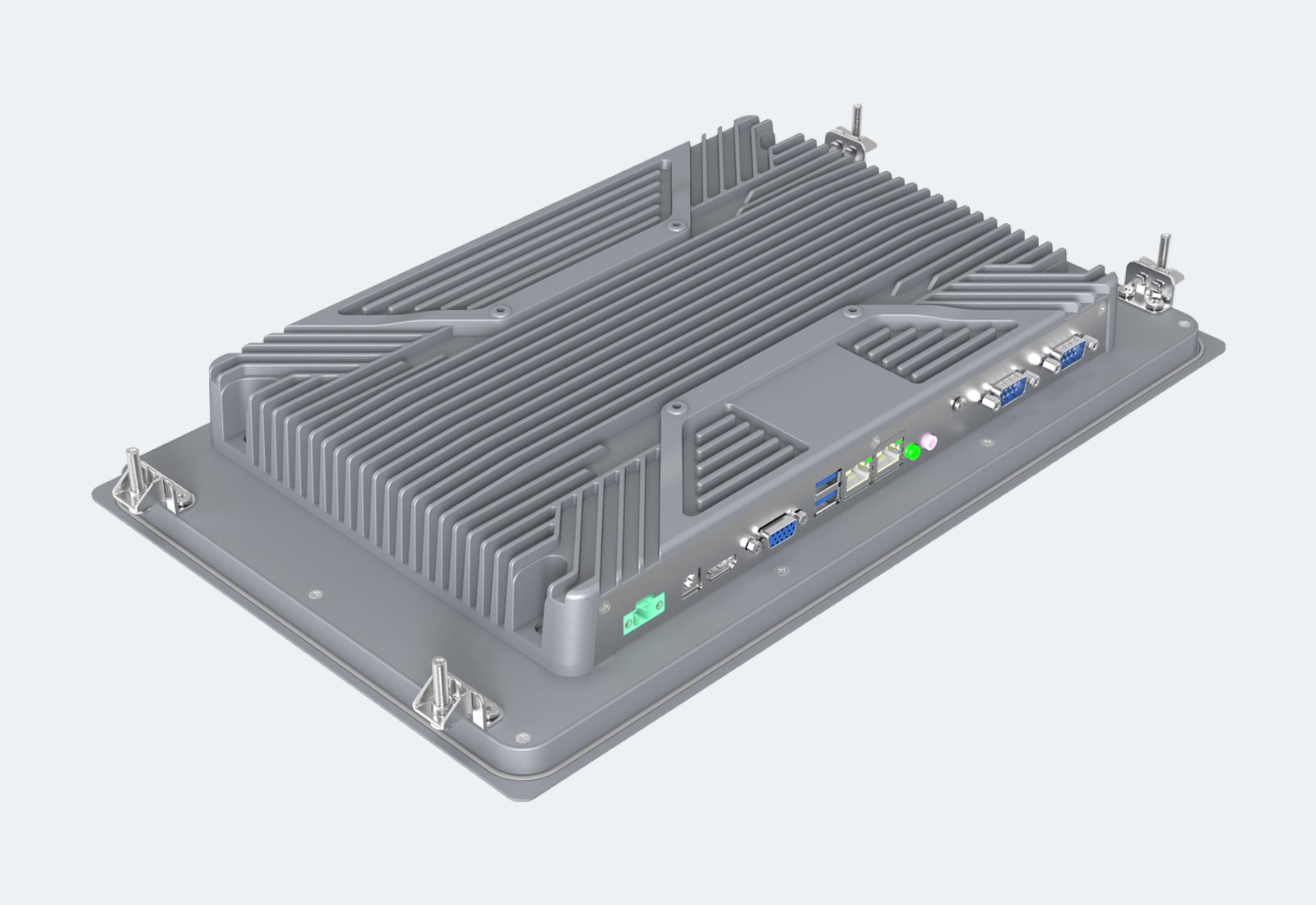

| Thermal Design | Fanless passive heat dissipation |

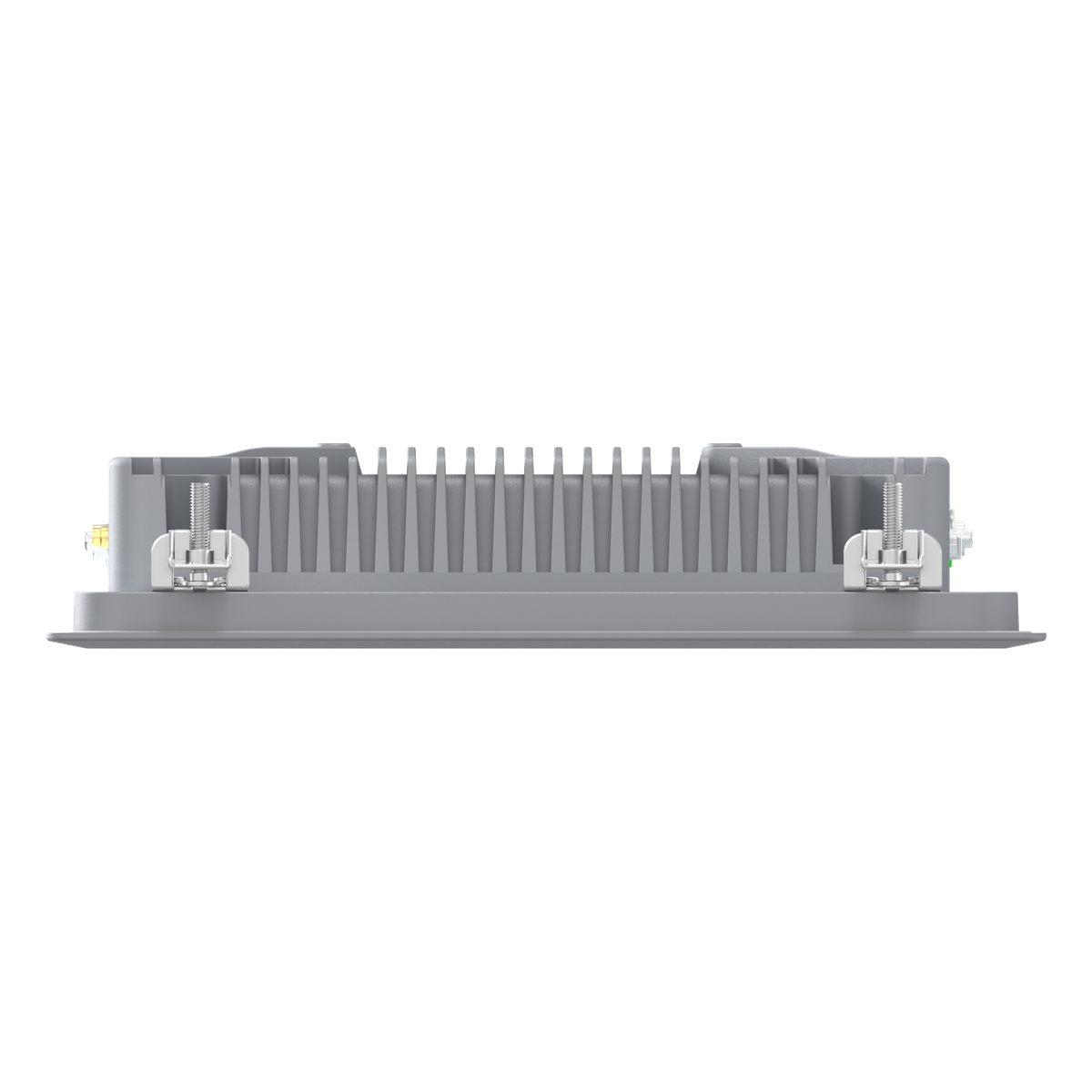

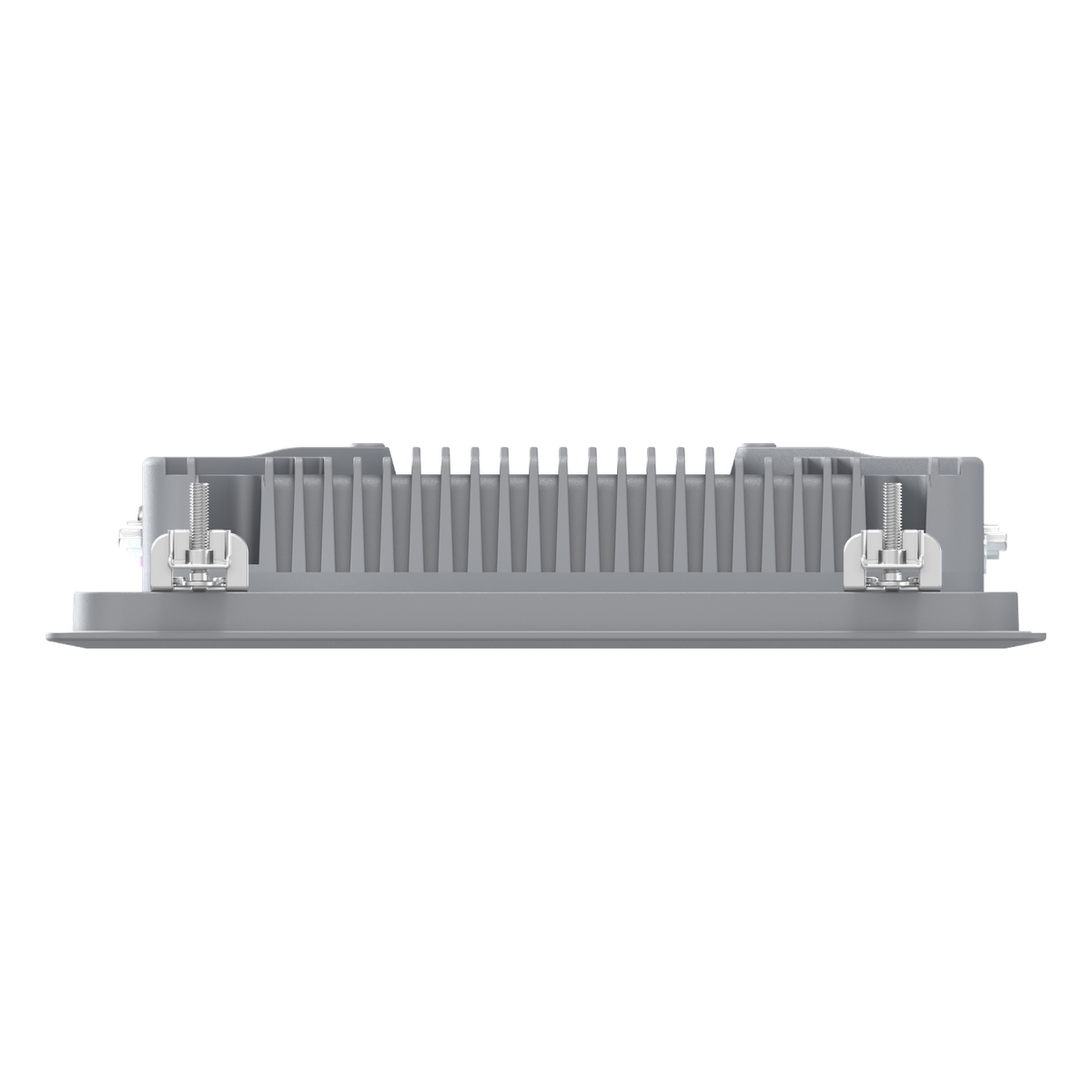

| Mounting | Embedded / Wall mount / Desktop stand |
| Weight | Net 4.5kg / Gross 5kg |
| Operating System | 6th/7th Gen: Windows 7/10/11/Linux; 11th/12th/13th Gen: Windows 11/Linux |

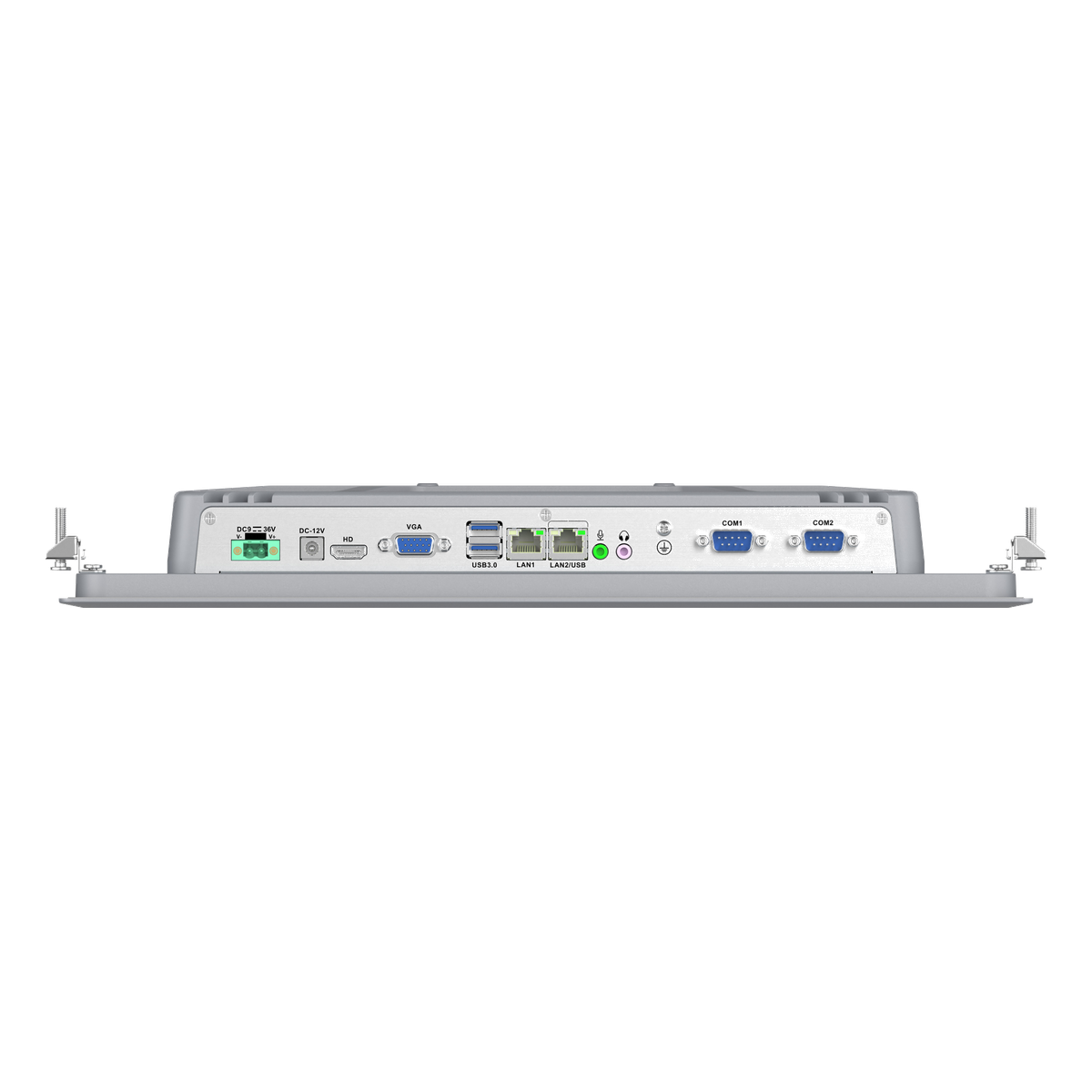

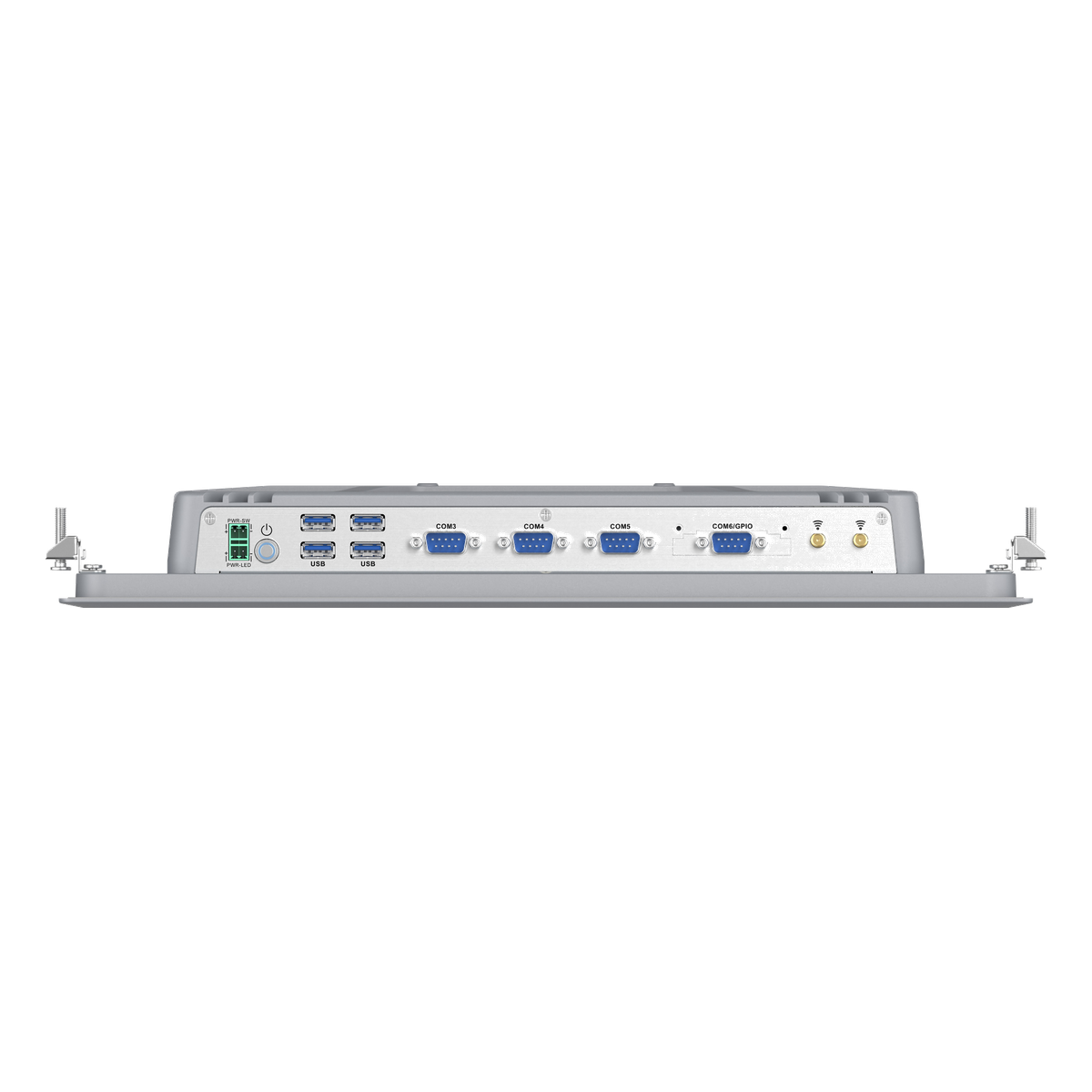

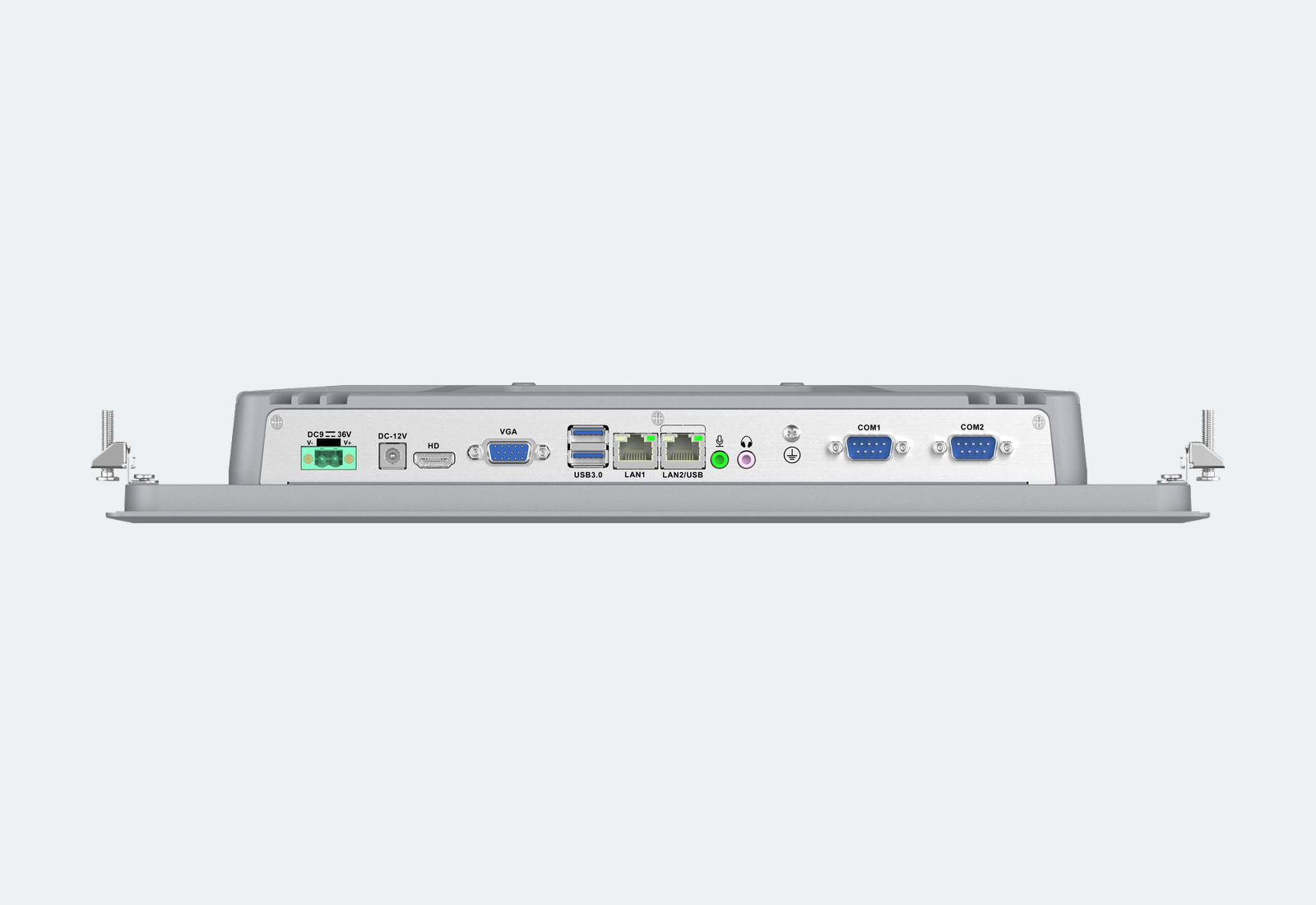

I/O Visual Layout
Connector position overview
Use this visual map to identify connector areas. Detailed electrical and port specifications are kept only in the Full Specification Table.
LAN
Ethernet / network port area
COM
Serial DB9 communication area
USB
USB peripheral connection area
Display
Monitor output position
Power
DC input position
Expansion
Module or expansion slot area
Configuration Options
Project-selectable options
Use Case Fit
Applications this product can support
OEM / ODM Support
Customization support capabilities
Documentation
Documentation / Datasheet
lpc-kr156-w.pdf
PDF / 695 KB / Available for engineering review
Quality & Compliance
Quality & Compliance for Industrial Projects
Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.
CE / FCC / RoHS documentation support100% aging test discussion for batch ordersWide temperature and vibration reviewFanless thermal design validationLong lifecycle supply supportOEM / ODM engineering communication
Product RFQ
Request configuration review for LPC-KR156-W Series.
Send the application, quantity, required I/O, mounting method, power input and OS support so engineering can confirm a practical quotation path.
