Product Overview

Product Overview

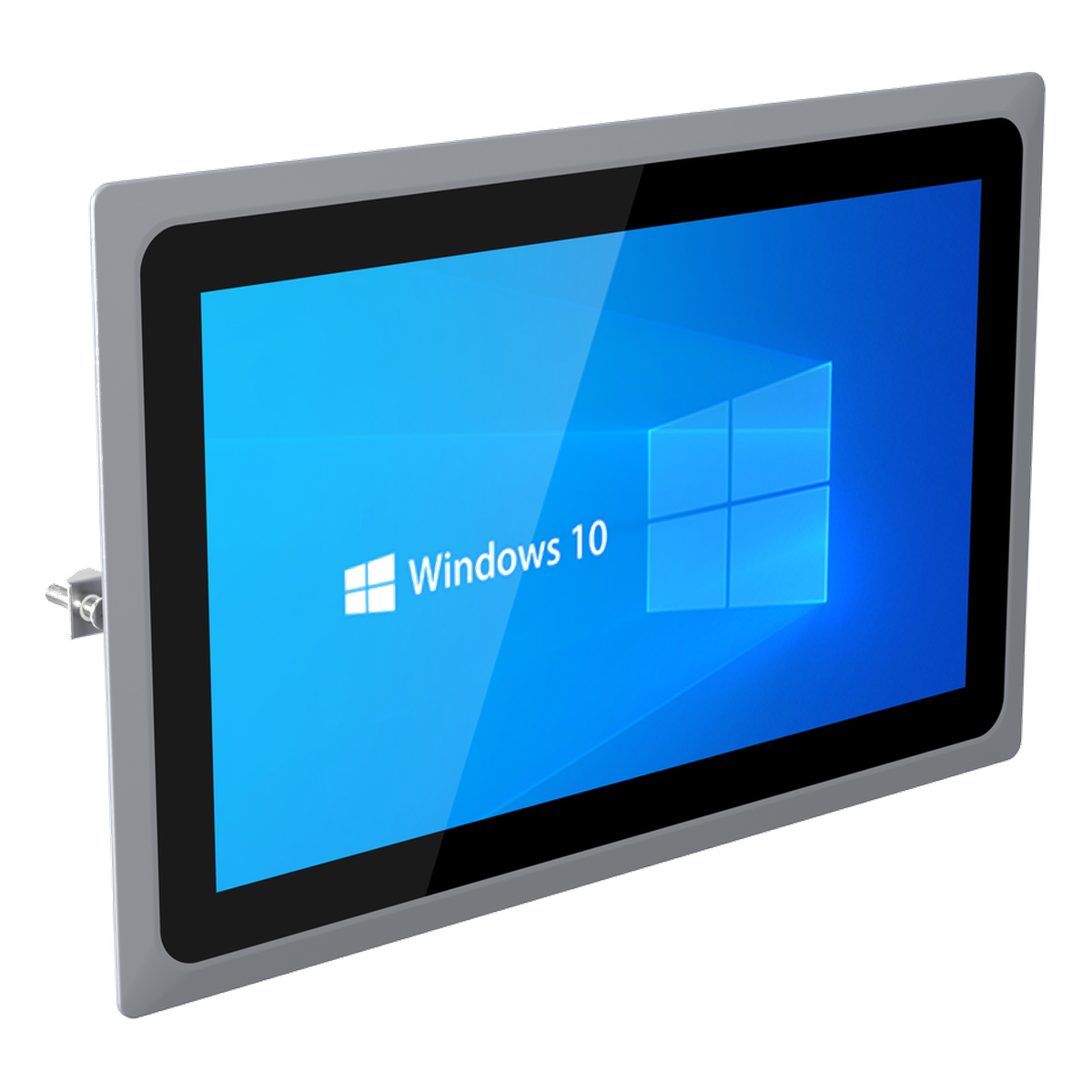

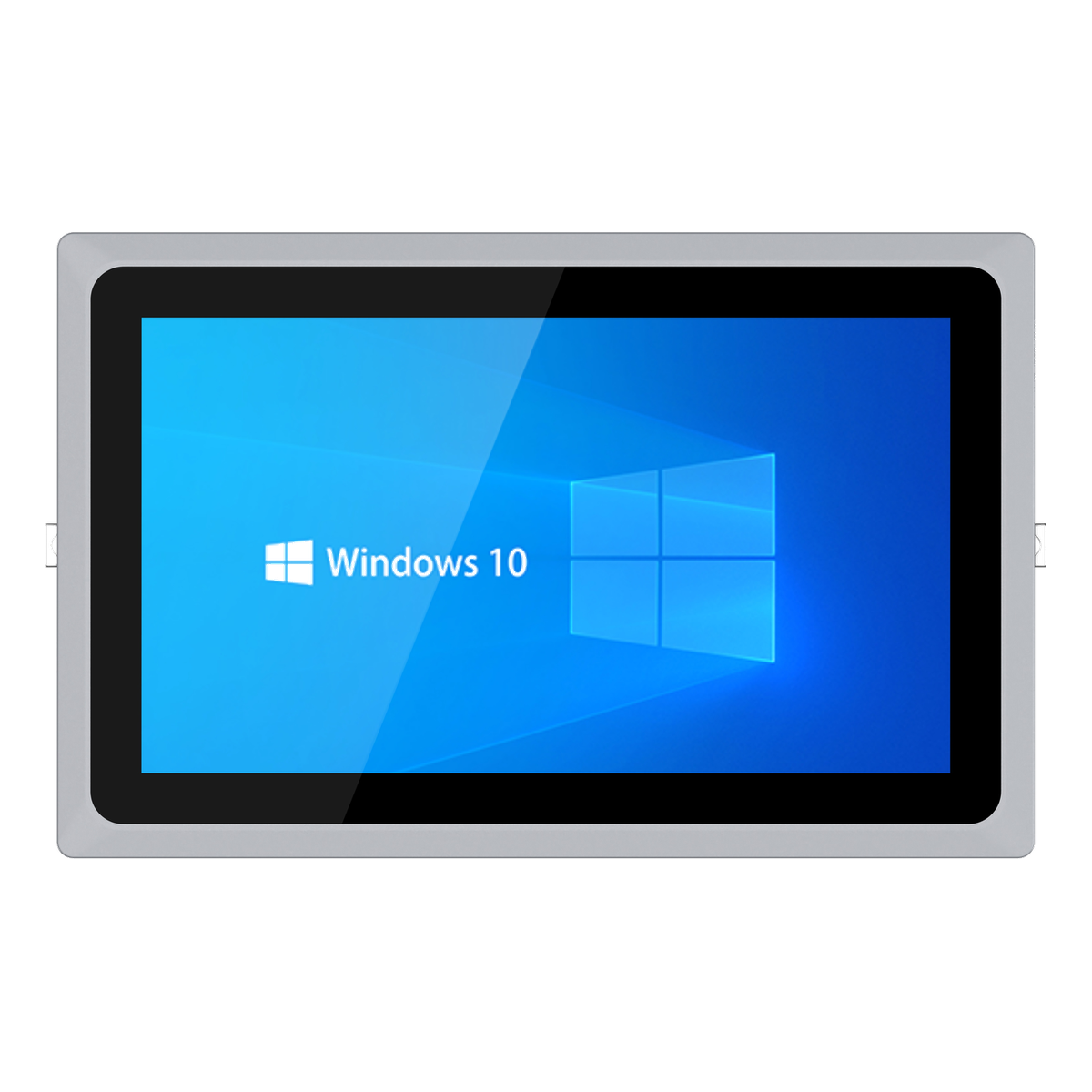

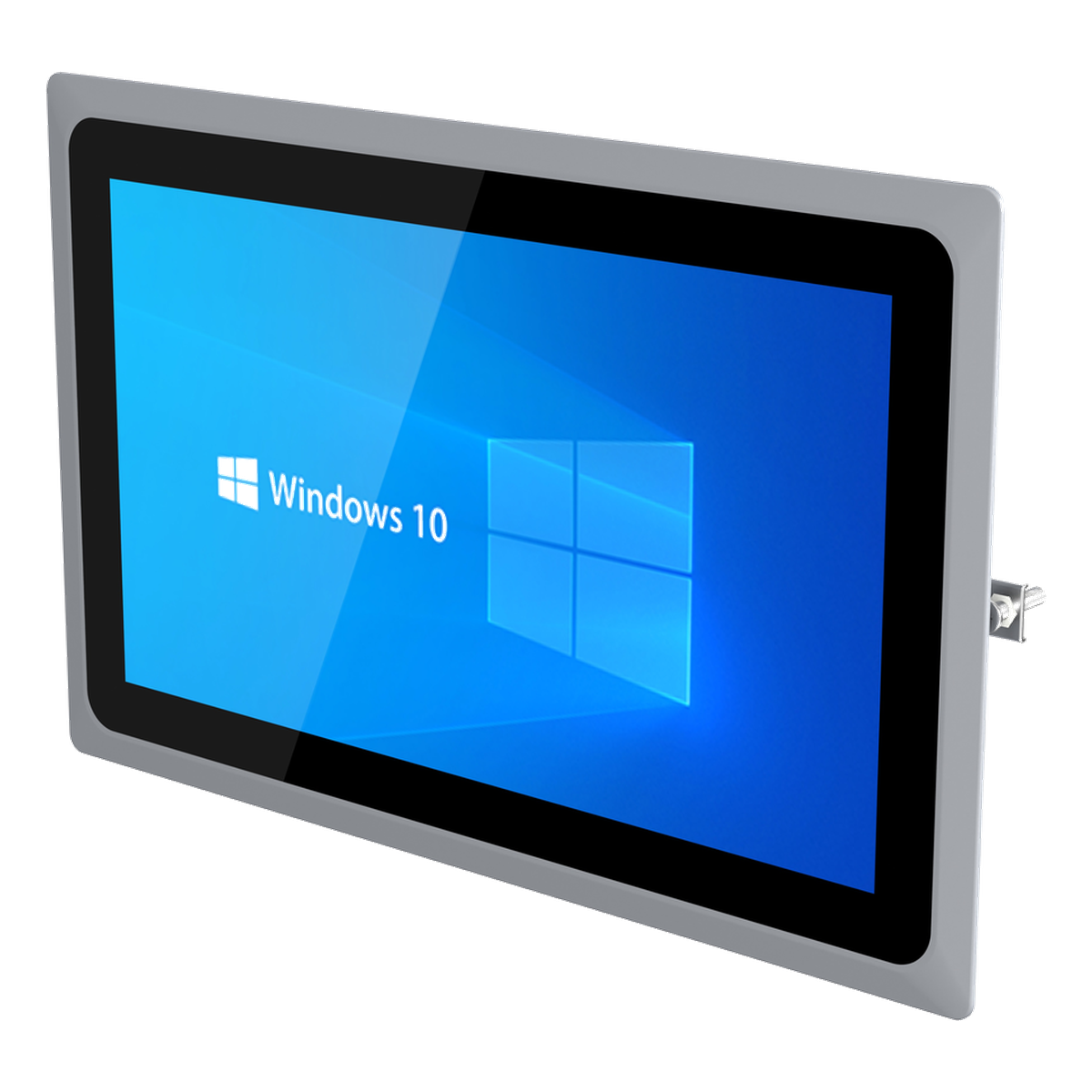

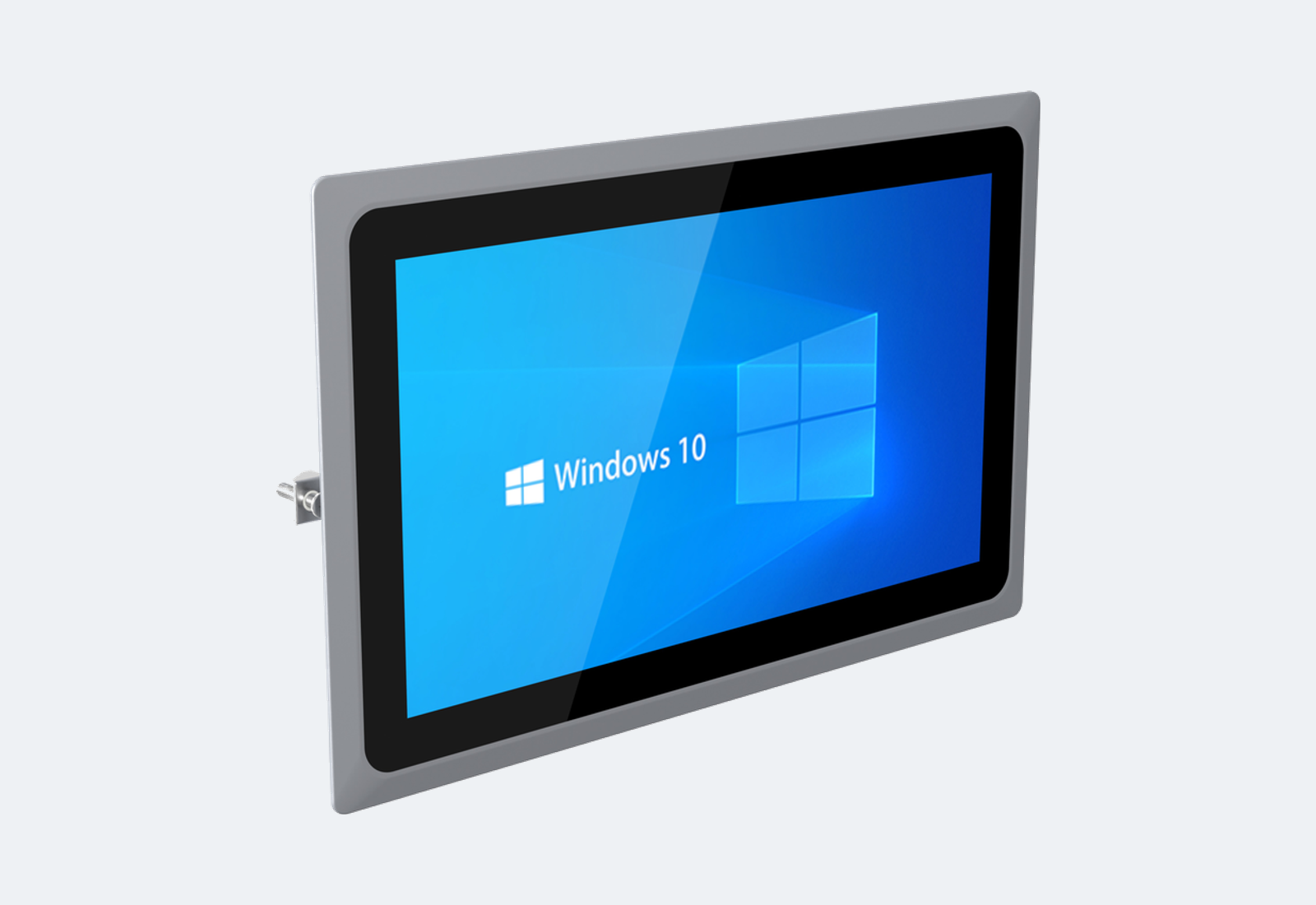

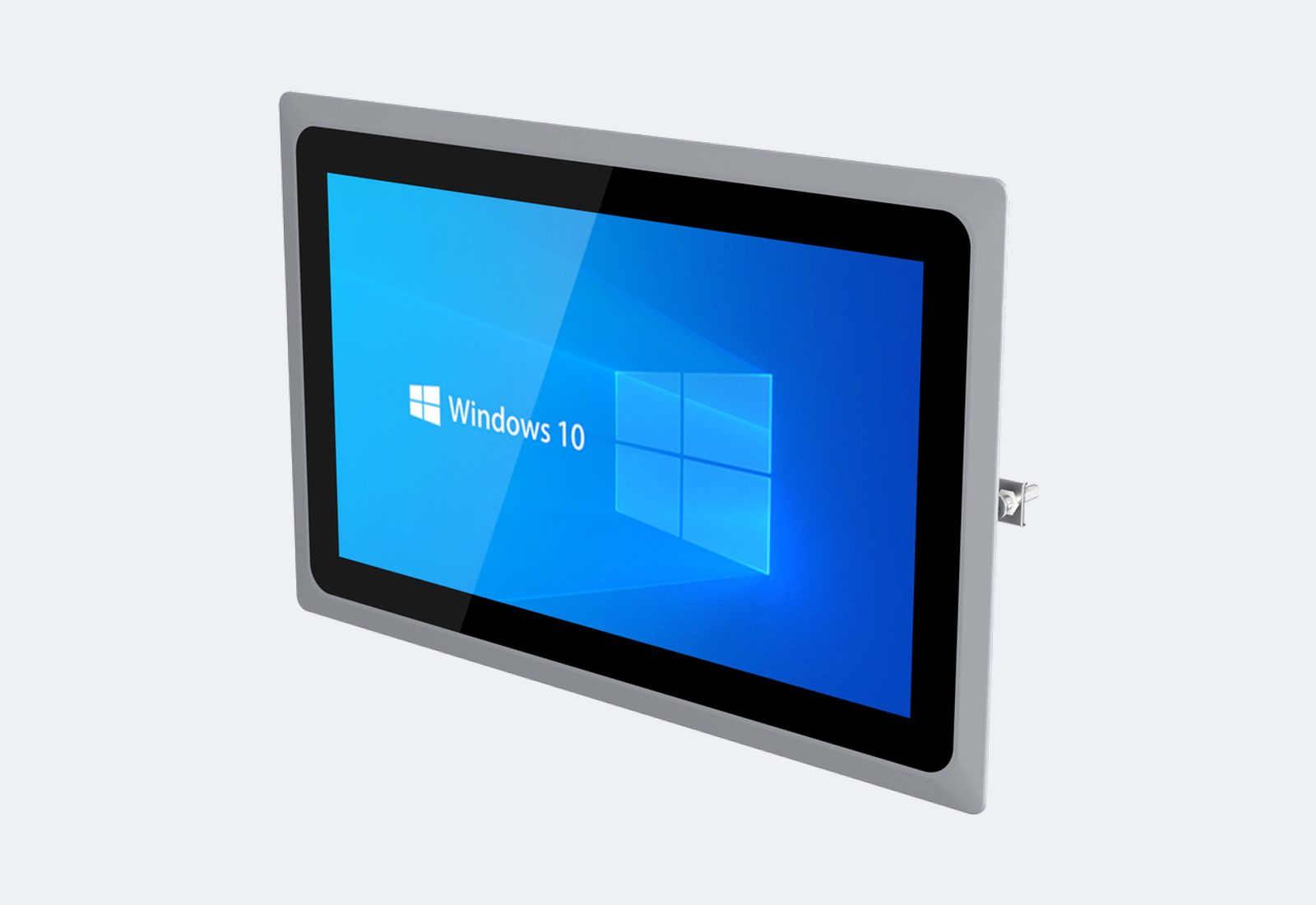

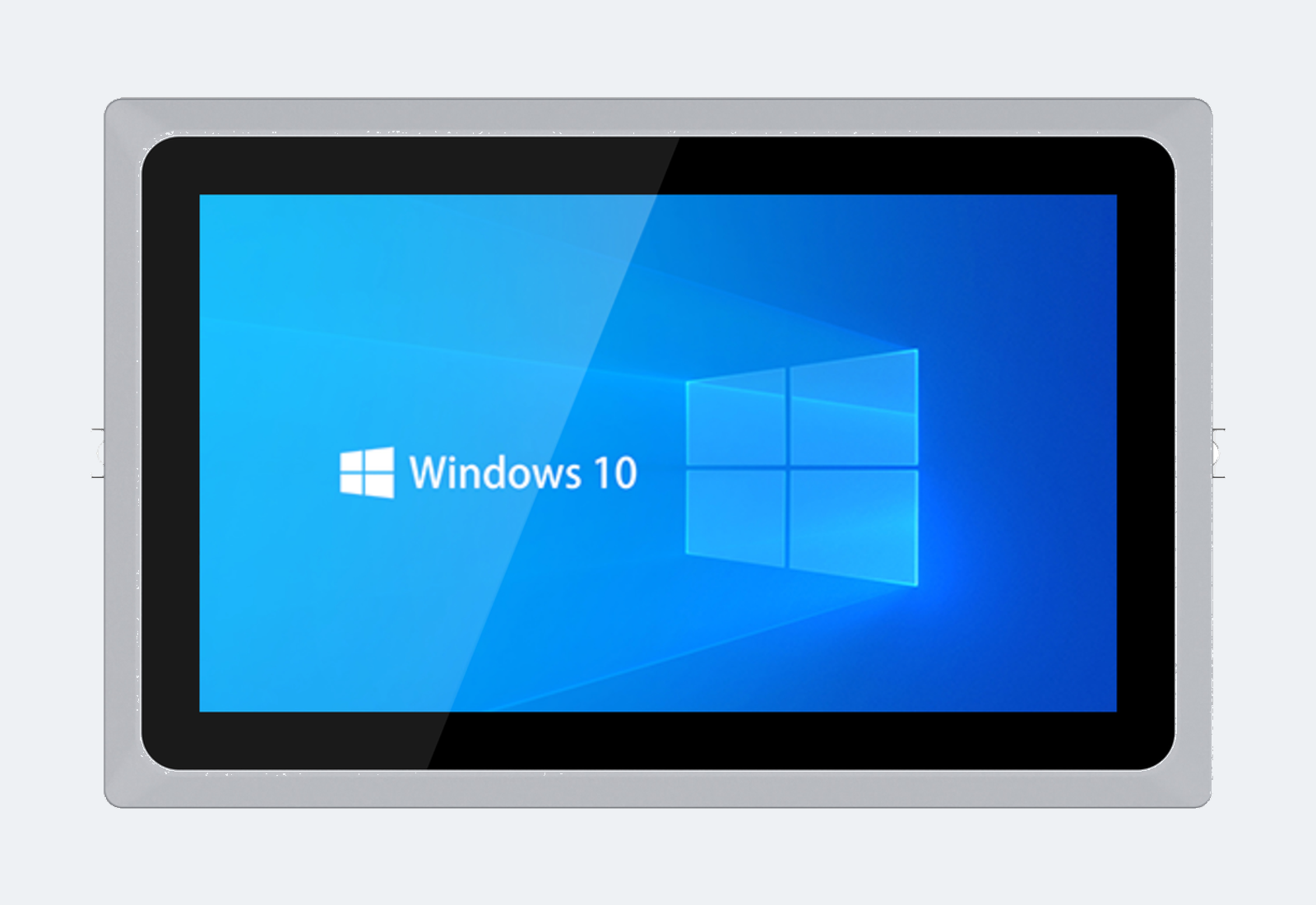

13.3-inch widescreen industrial panel PC with 1920 x 1080 resolution, capacitive touch, fanless cooling and embedded Intel processor platform options.

Designed for B2B automation projects, this platform helps engineering teams evaluate processor, I/O, power input, operating system, mounting method, and lifecycle requirements before RFQ.

Project-ready Highlights

Key Highlights

  • 13.3-inch industrial widescreen
  • 1920 x 1080 resolution
  • Capacitive G+G 10-point touch
  • 2 x LAN ports
  • 2 x COM ports
  • DC12V input, optional 9-36V wide voltage

Engineering Data

Key Specifications Table

Core parameters are shown in a full-width table so procurement and engineering teams can compare configuration requirements quickly.

Processor Intel low-power embedded 6th / 7th / 11th / 12th / 13th generation CPU options
Chipset Intel embedded platform
Memory 4GB / 8GB / 16GB, configuration subject to actual model
Storage 2.5-inch hard disk or M.2 Key-M hard disk installation
Screen Size 13.3 inch
Resolution 1920 x 1080
Touch Type Capacitive G+G 10-point touch; optional resistive touch
LAN 2 x LAN ports
COM 2 x COM
USB 2 x USB3.0
Display Output 1 x HDMI
Audio Line-Audio
Power Input DC12V input, optional 9-36V wide voltage input
Operating Temperature -10°C to 60°C
Storage Temperature -40°C to 80°C
Humidity 10% - 95% @ 40°C, non-condensing
Material Industrial aluminum alloy structure

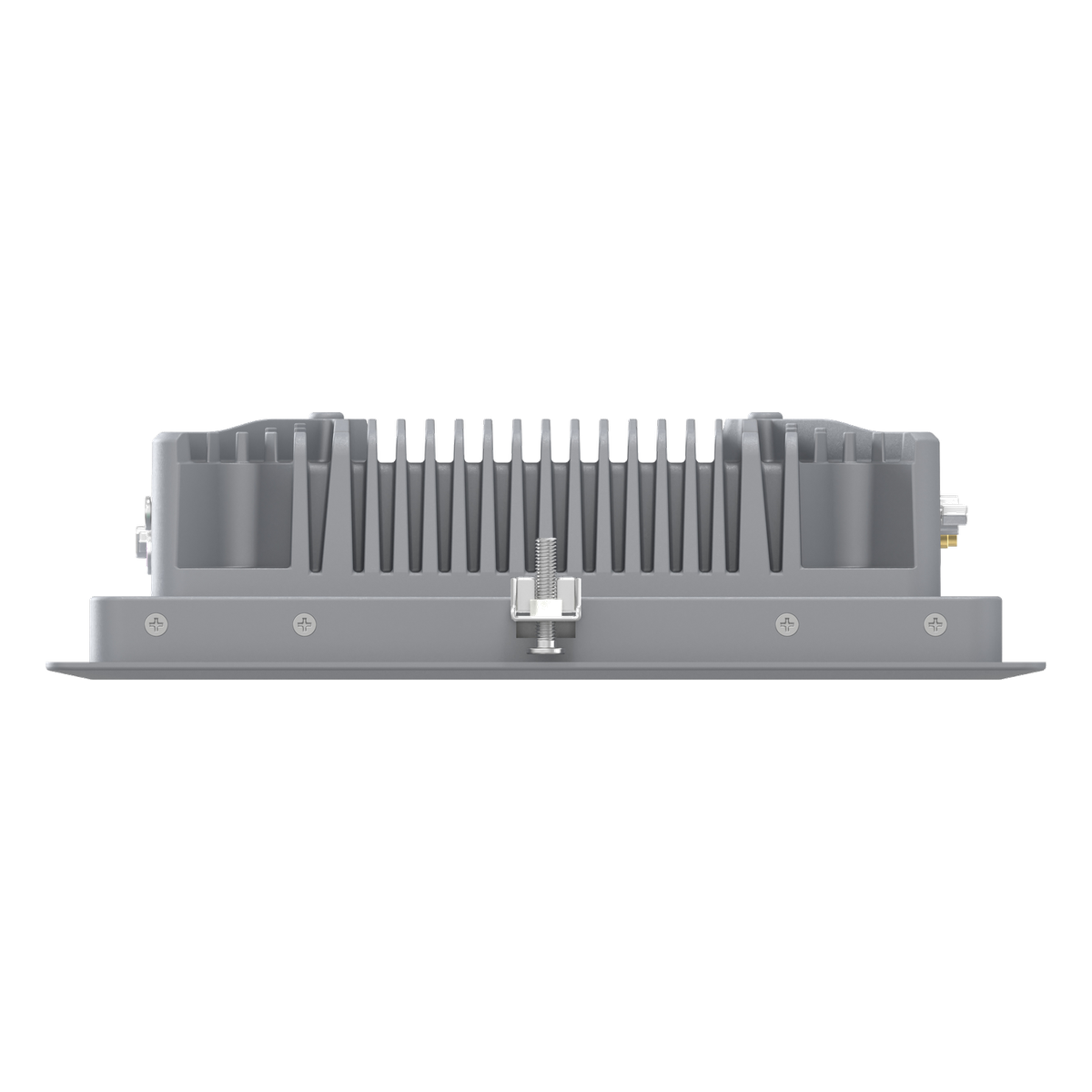

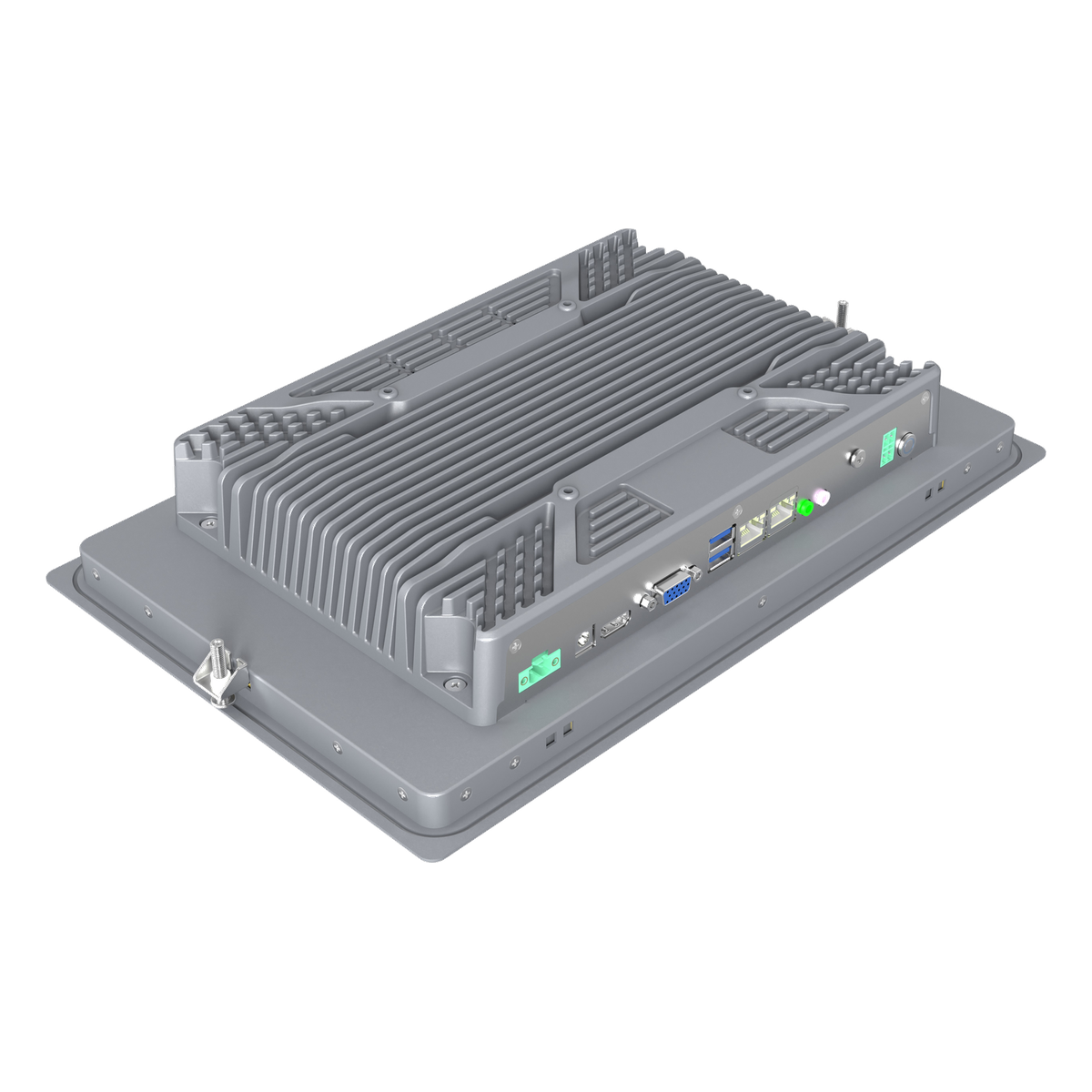

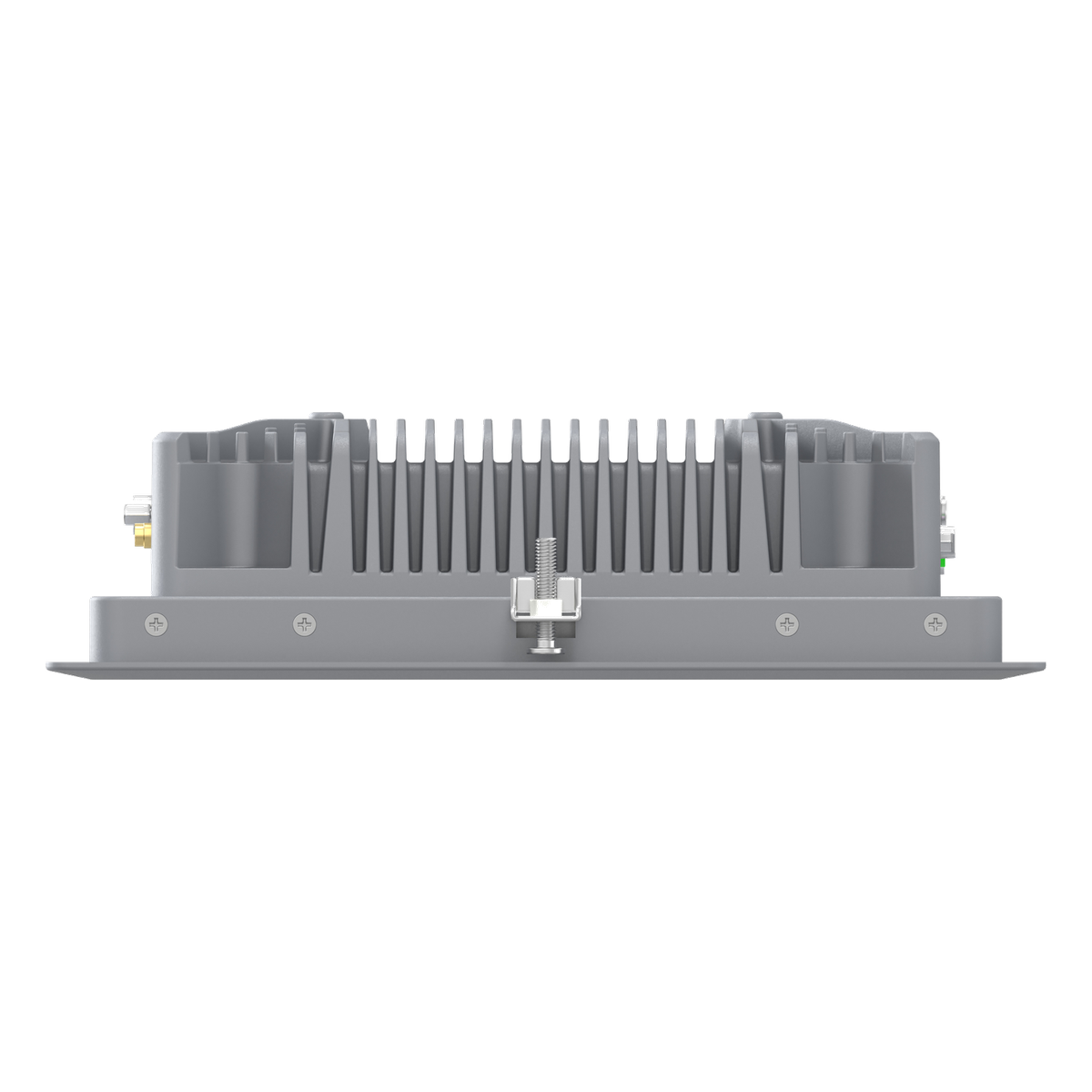

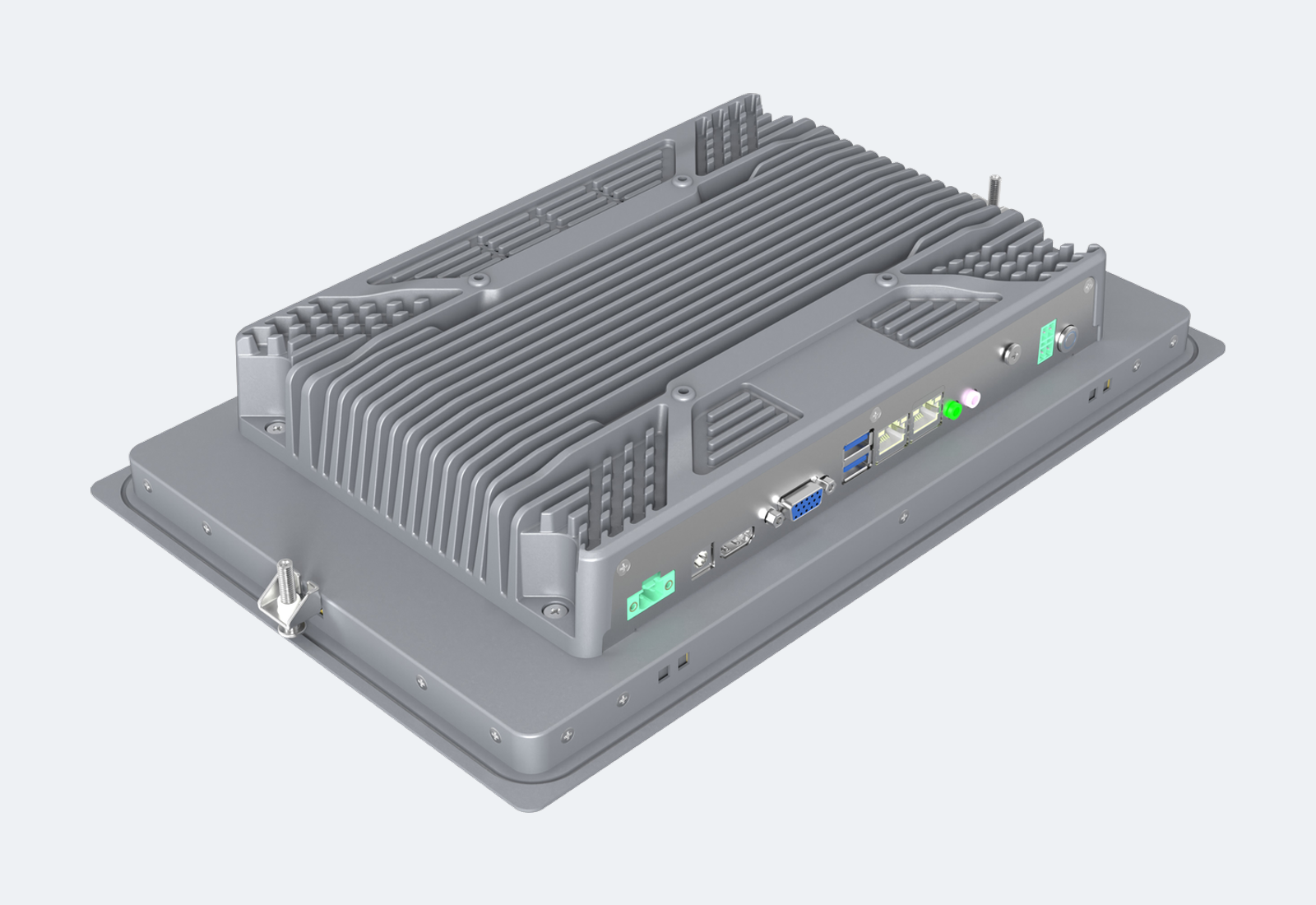

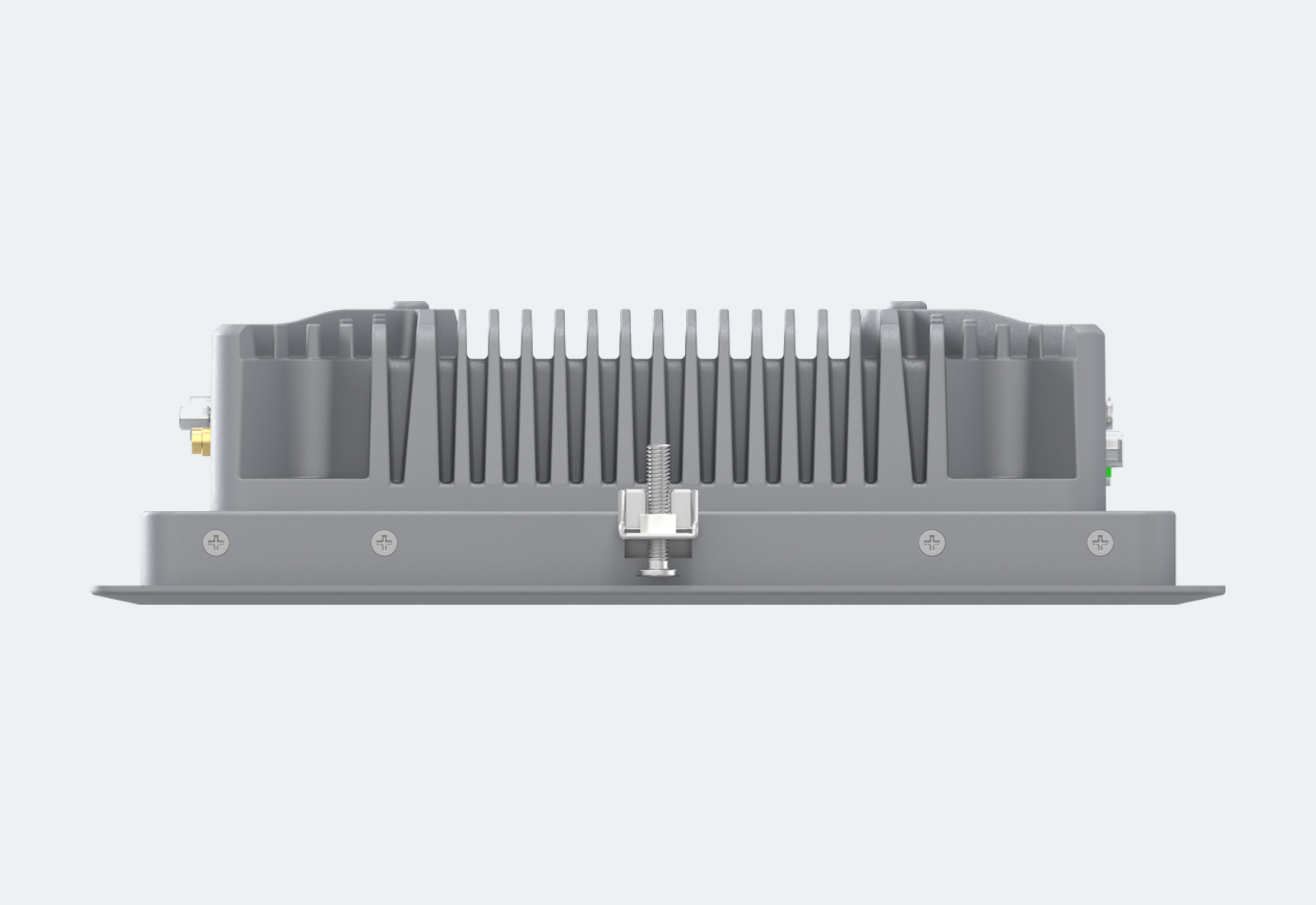

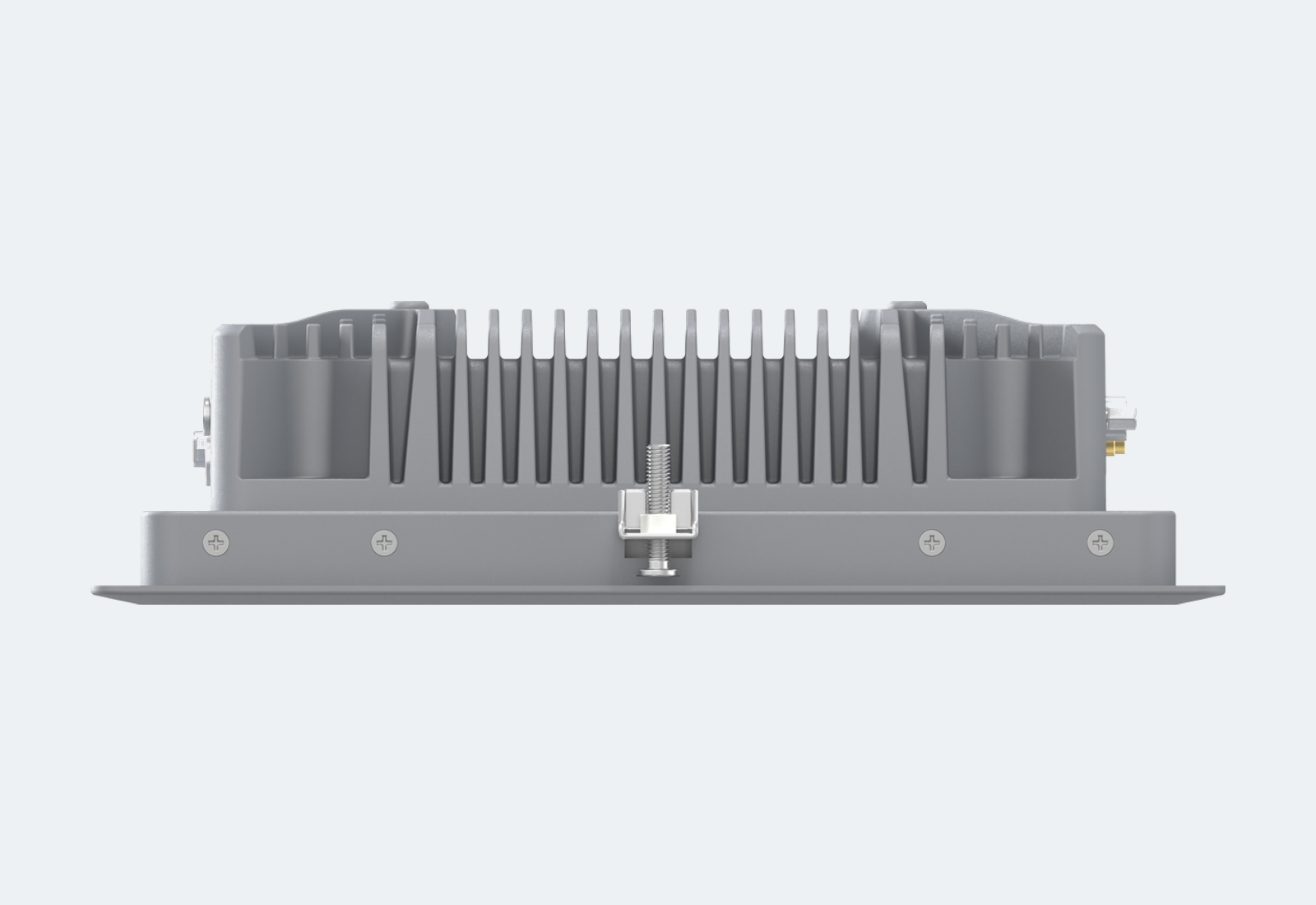

Thermal Design Fanless passive heat dissipation
Mounting Embedded / Wall Mount / Desktop Stand
Operating System Windows 11 / Linux

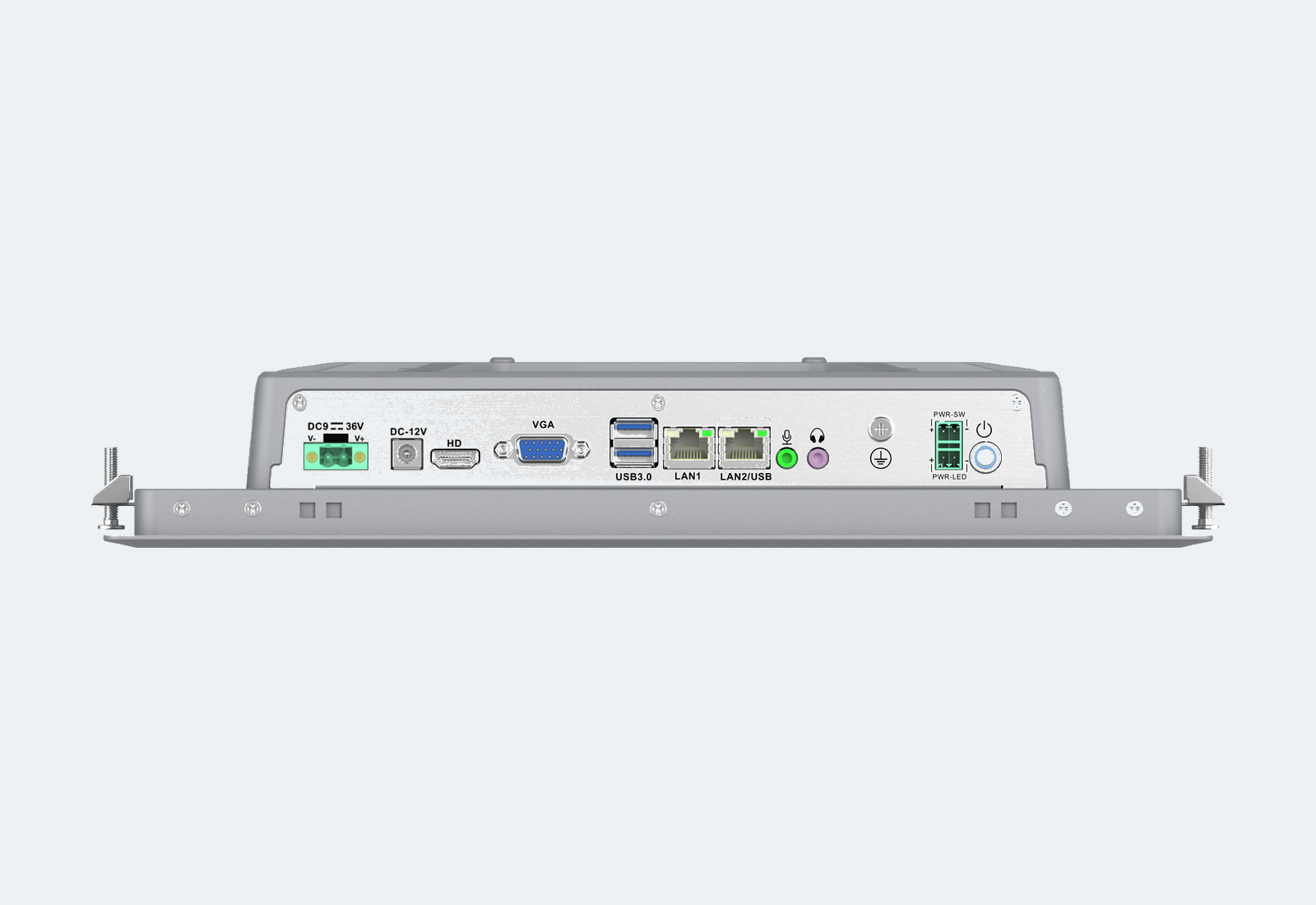

I/O Configuration

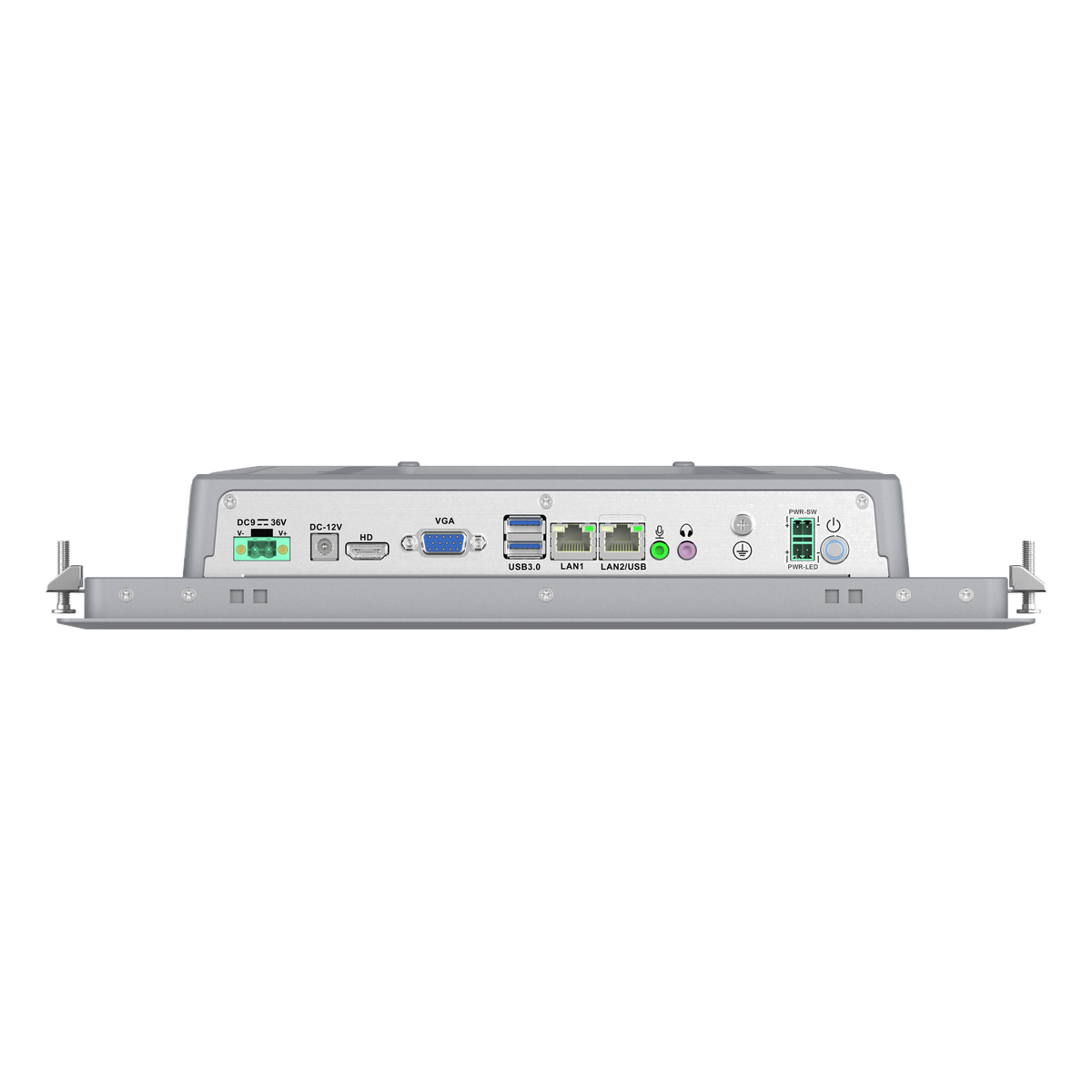

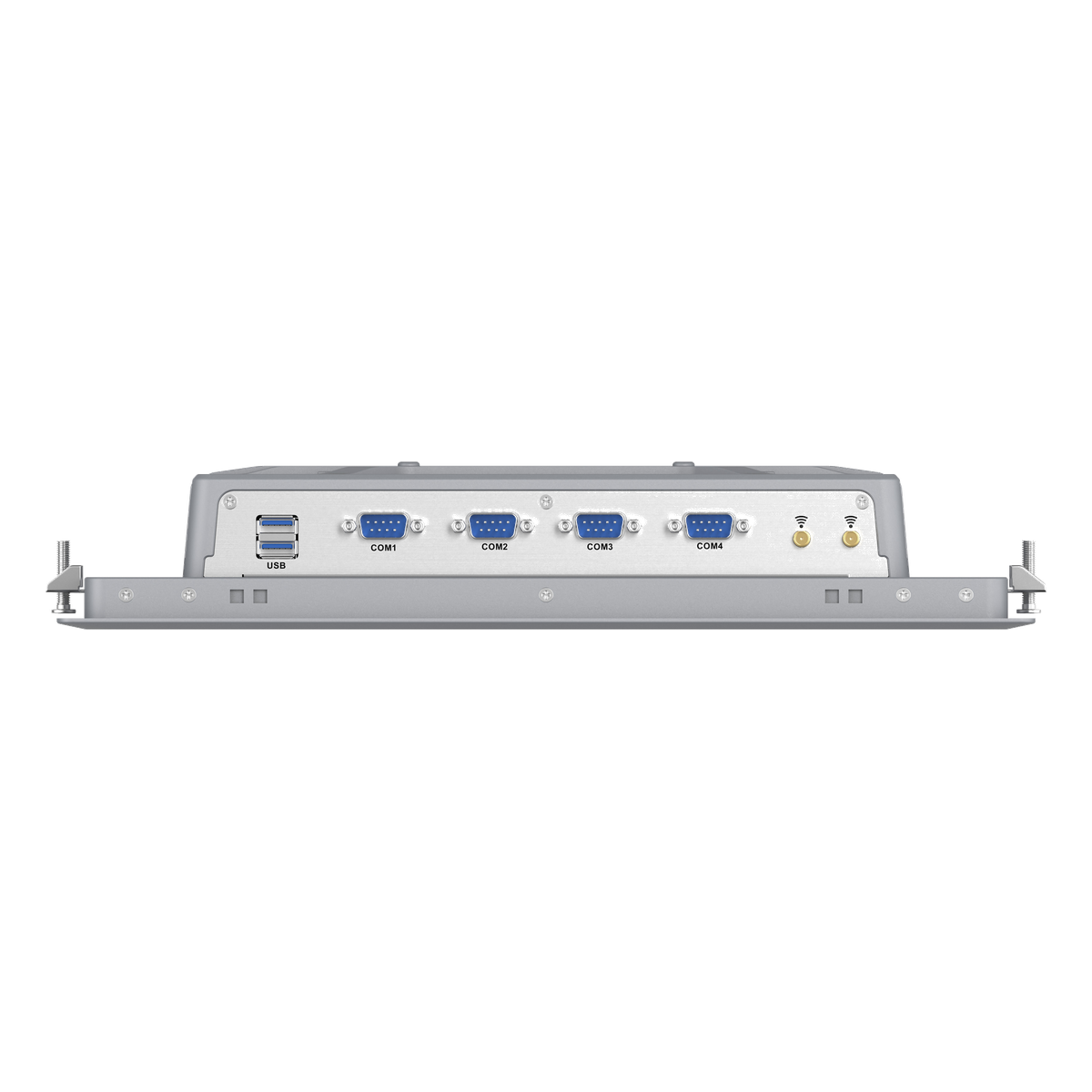

Industrial Interfaces

LAN 2 x LAN ports
COM 2 x COM
USB 2 x USB3.0
Display Output 1 x HDMI
Audio Line-Audio

Ordering Options

Configuration Based Ordering

  • LPC-KR133-W-O-N5095
  • LPC-KR133-W-O-J6412
  • LPC-KR133-W-O-6500U
  • LPC-KR133-W-O-7200U
  • LPC-KR133-W-O-1235U
  • LPC-KR133-W-O-1335U

Application Scenarios

Typical Uses

  • Machine vision
  • Highway lane control
  • Mechanical testing equipment
  • Intelligent transportation
  • Smart factory
  • Power control
  • CNC equipment
  • Industrial automation

Customization Options

OEM / ODM Support

Tell us your CPU, memory, storage, I/O, voltage, mounting, operating system, branding, packaging, and quantity requirements.

CPU / Memory / StorageLAN / COM / USBDC12V / 9-36VMounting MethodWindows / LinuxLogo / Label / Packaging

Quality & Compliance

Quality & Compliance for Industrial Projects

Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.

CE / FCC / RoHS documentation support100% aging test discussion for batch ordersWide temperature and vibration reviewFanless thermal design validationLong lifecycle supply supportOEM / ODM engineering communication
